Consider a pipe of length L with an inner radius r1 and outer radius r2. The...
Consider a pipe of length L with an inner radius r1 and outer radius r2. The outer surface is thermally insulated while the inner surface is at temperature T1. The thermal conductivity of the wall is k constant. Heat is generated in the wall of the pipe with a volumetric uniform heat generation g (W/m3 ). Assume steady and one dimensional heat transfer
(b) Determine the temperature variation in the wall of the pipe and the heat flux on the inner surface. (c) Consider that r1=0.18m, r2=0.2m, L=1m, k =20 W/m°C and g =418830 W/m3 . Determine the temperature of the outer surface at r2=0.2 m and the heat flux " q (W/m2 ) at r1=0.18m. The inner surface temperature is at 90 °C

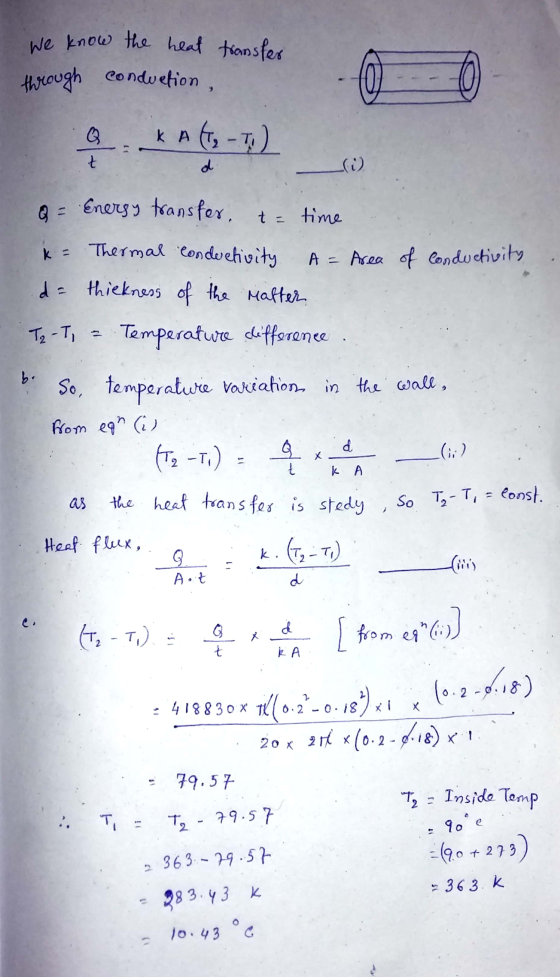

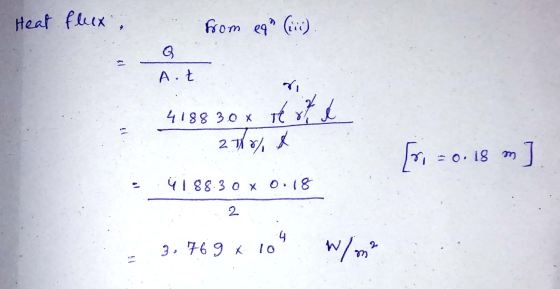

Homework Answers
do
comment for any difficulty.Add Answer to:
Consider a pipe of length L with an inner radius r1 and outer
radius r2. The...
Problem 2: Consider a large plane slab of semi-thickness L = 0.3 m, thermal conductivity k...
Problem 2: Consider a large plane slab of semi-thickness L = 0.3 m, thermal conductivity k = 2.5 W/m K and surface area A = 20.0 m². Both sides of the slab is maintained at a constant wall temperature of 358°K while it is subjected to a uniform but constant heat flux of 950.0 W/m2 Evaluate the temperature distribution/profile within the wall. Calculate the heat flux and temperature at location x = 0.1m. Problem 3: Consider a 10.0 m long...
consider a neutral soherically conducting shell of inner radius r1 and outer radius r2. a point...
consider a neutral soherically conducting shell of inner radius r1 and outer radius r2. a point charge +q, is placed at tge center (r=0) of the spherically conducting shell. Answer the following questions symbollically in terms of k,r1,r2, and q. a) what is the electric field for r>r1 b) what is the electric field for r2>r>r1? c) what is the electric field for r>r2? d) what is the surface charge density omega1, on the inner surface of the shell? e)...
1. 1.08x106 grams/h of a superheated fluid flows through a pipe in a power plant. The...
1. 1.08x106 grams/h of a superheated fluid flows through a pipe in a power plant. The pipe is 1000 cm long, has an inner diameter of 0.05m and a wall thickness of 0.6 cm. The pipe has a thermal conductivity of 0.0017 kW/mK, and the inner pipe surface is at a uniform temperature of 393K. The temperature drop between the inlet and exit of the pipe is 7K, and the constant pressure specific heat of vapor is 2190 J/kgK. If...
In a food processing facility, a spherical container of inner radius n = 40 cm, outer...
In a food processing facility, a spherical container of inner radius n = 40 cm, outer radius r2 = 41 cm, and thermal conductivity k = 1.5 W/m 'C is used to store hot water and to keep it at 100°C at all times (see Figure Q2). To accomplish this, the outer surface of the container is wrapped with a 500-W electric strip heater and then insulated. The temperature of the inner surface of the container is observed to be...
B Steam flows in a steel pipe, which is insulated by gypsum plaster. The inner and...
B Steam flows in a steel pipe, which is insulated by gypsum plaster. The inner and outer diameter of the pipe are 8 cm and 6 cm respectively with pipe length of 20-m. The thickness of gypsum plaster which wraps the pipe is 4 cm. The heat transfer coefficient of the inner pipe and outer insulation are 800 W/m2.°C and 200 W/m2.°C with inner pipe temperature of 200°C and outer insulator temperature of 10°C. The thermal conductivity of the pipe...
A stainless pipe having an inner wall thickness of 5 cm, an outer wall thickness of...
A stainless pipe having an inner wall thickness of 5 cm, an outer wall thickness of 5.5 cm and a thermal conductivity of 15 W/m˚C transfers steam at 320˚C from one location to another. The pipe is insulated with a 3 cm thick glass wool having a thermal conductivity of 0.038 W/m˚C. Heat is lost to the surroundings by natural convection and radiation at a rate of 15 W/m2˚C and the heat transfer coefficient inside the pipe is 80 W/m2˚C....
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C...
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C and 100°C, respectively. Determine the rate of heal transfer by radiation between the plates in Wim and the radiative heat transfer coefficient in W/m K ) 12 Write down the one-dimensional sent heal conduction equation for a plane wall with constant thermal conductivity and heat generation in its simplest form, and indicate what each variable represents 13 Write down the one-dimensional transient heat conduction...
Liquid flows in a metal pipe with an inner diameter of D1 = 22 mm and...
Liquid flows in a metal pipe with an inner diameter of D1 = 22 mm and an outer diameter of D2 = 32 mm. The thermal conductivity of the pipe wall is 12 W/m·K. The inner surface of the pipe is coated with thin polyvinylidene chloride (PVDC) lining. Along a length of 1 m, the pipe outer surface is exposed to convection heat transfer with hot gas, at T∞ = 100°C and h = 5 W/m2·K, and thermal radiation with...
A wheel has mass 50 kg, outer radius R2 = 1m and inner radius R1 =...
A wheel has mass 50 kg, outer radius R2 = 1m and inner radius R1 = .8m. The wheel is supported by 8 spokes, each with radius .8m and mass 10 kg. What is the moment of inertia of the wheel? (Note that this is a THICK rimmed wheel.)
A point charge -Q is at the center of a spherical conducting shell of inner radius R1 and outer radius R2 as shown in th...
A point charge -Q is at the center of a spherical conducting shell of inner radius R1 and outer radius R2 as shown in the figure below. (In the figure there is a around spherical where 2 arrows shoots out from and arrow R1 is distance to the innter radius and R2 is to the outer radius) What is the charge on the inner surface of the shell?
Problem 2: Consider a large plane slab of semi-thickness L = 0.3 m, thermal conductivity k = 2.5 W/m K and surface area A = 20.0 m². Both sides of the slab is maintained at a constant wall temperature of 358°K while it is subjected to a uniform but constant heat flux of 950.0 W/m2 Evaluate the temperature distribution/profile within the wall. Calculate the heat flux and temperature at location x = 0.1m. Problem 3: Consider a 10.0 m long...
In a food processing facility, a spherical container of inner radius n = 40 cm, outer radius r2 = 41 cm, and thermal conductivity k = 1.5 W/m 'C is used to store hot water and to keep it at 100°C at all times (see Figure Q2). To accomplish this, the outer surface of the container is wrapped with a 500-W electric strip heater and then insulated. The temperature of the inner surface of the container is observed to be...
B Steam flows in a steel pipe, which is insulated by gypsum plaster. The inner and outer diameter of the pipe are 8 cm and 6 cm respectively with pipe length of 20-m. The thickness of gypsum plaster which wraps the pipe is 4 cm. The heat transfer coefficient of the inner pipe and outer insulation are 800 W/m2.°C and 200 W/m2.°C with inner pipe temperature of 200°C and outer insulator temperature of 10°C. The thermal conductivity of the pipe...
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C and 100°C, respectively. Determine the rate of heal transfer by radiation between the plates in Wim and the radiative heat transfer coefficient in W/m K ) 12 Write down the one-dimensional sent heal conduction equation for a plane wall with constant thermal conductivity and heat generation in its simplest form, and indicate what each variable represents 13 Write down the one-dimensional transient heat conduction...
