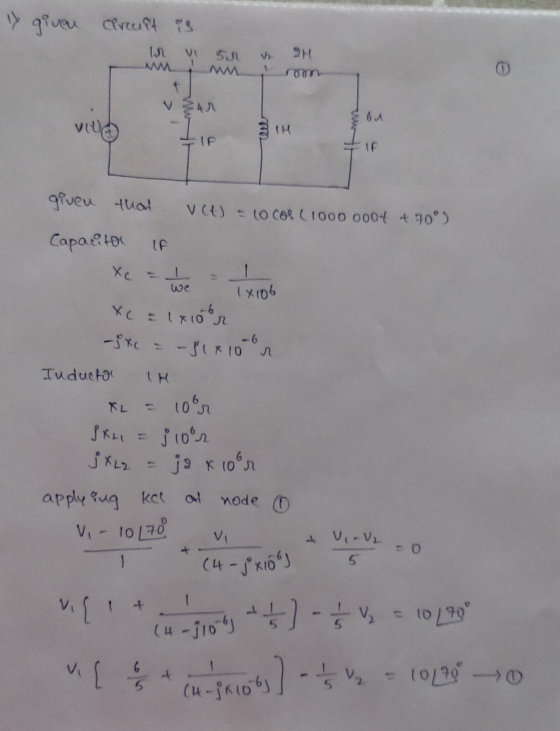

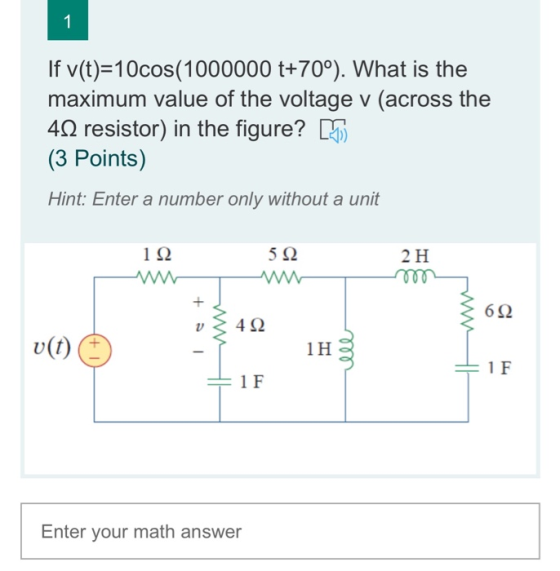

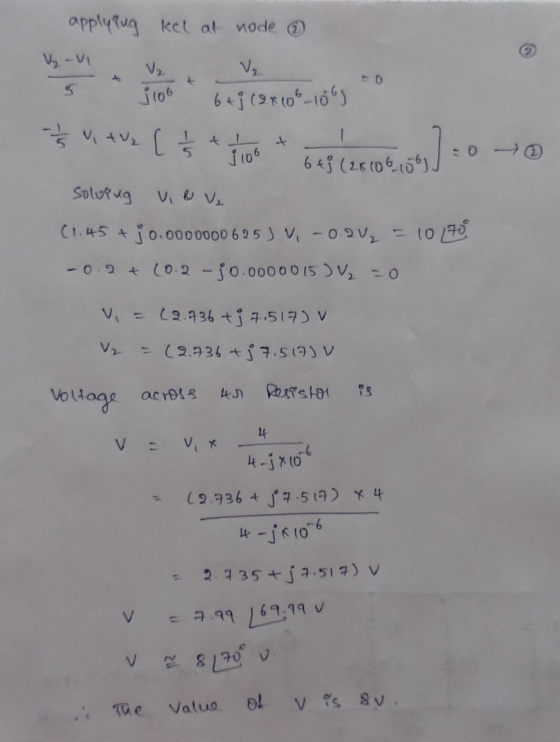

![1 If v(t)=10cos(1000000 t+70°). What is the maximum value of the voltage v (across the 412 resistor) in the figure? []) (3 Po](http://img.homeworklib.com/questions/5fc2b150-ca75-11ea-86e8-834ee330f764.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
1 If v(t)=10cos(1000000 t+70°). What is the maximum value of the voltage v (across the 412...
1. For a system described in Figure 1. x(t) - input voltage, y(t) - output voltage....
1. For a system described in Figure 1. x(t) - input voltage, y(t) - output voltage. (a) Determine Continuous Time (C.T.) "Math Model" when R = 1/3 121, L = 1/2 [F], and C = 1 [F]. (b) Fine "Zero Input Response". y zit. for the C.T.system. when y(0) = 1 [V], y'(0) = 2 IV (c) Draw "Zero Input Response". y_zi(t) with respect to time 1 (2-D graph) (d) Find impulse response, h(!). of the Continuous Time (C.T.) system....
Question 4 [15 Marks) a. The voltage, v(t), across a capacitor varies with time, t, according...
Question 4 [15 Marks) a. The voltage, v(t), across a capacitor varies with time, t, according to v(t) = 2e-2t + 6 Calculate the average rate of change of the voltage from t = 1 to t = 2 b. Calculate the rate of change of y(x) = x2 + 2x when x = -5, without using the table of derivatives. C. Evaluate the following derivatives with the help of the table i. y = 2 tan+ y = 3x...
after two seconds? The Voltage across a resistor R is given by V(t)=e. 2t cos(+²+1) How...
after two seconds? The Voltage across a resistor R is given by V(t)=e. 2t cos(+²+1) How fast is the Voltage Changing Round your answer to 3 decimals places.
Learning Goal: To analyze an RC circuit to determine the initial voltage across a capacitor, the...
Learning Goal: To analyze an RC circuit to determine the initial voltage across a capacitor, the time constant, and the expression for the natural response of the capacitor voltage, and then to find other circuit quantities such as current,voltage, power, or energy. The natural response of an RC circuit is the response of the capacitor voltage to the sudden removal of a DC source. When this occurs, the capacitor releases its stored energy Figure < 10121〉 t 0 V. Figure...
Figure 13-1 13) Find the voltage across the capacitor in Figure 13-1. A) 0.633 V B)...
Figure 13-1
13) Find the voltage across the capacitor in Figure 13-1.
A) 0.633 V B) -4.9 V C) 5.37 V D) 10.7 V
14) If the resistance increases in Figure 13-1, the impedance
________.
A) decreases B) increases C) remains the same D) becomes
zero
15) As the frequency approaches the resonant frequency in Figure
13-1, the voltage across the resistor ________.
A) becomes increasingly unstable B) increases
C) remains the same D) decreases
Figure 13-2
16) If the...
1. A 8.50-Ω resistor, 6.50-mH inductor, and 110-µF capacitor are connected in series to a 45.0-V...
1. A 8.50-Ω resistor, 6.50-mH inductor, and 110-µF capacitor are connected in series to a 45.0-V (rms) source having variable frequency. If the operating frequency is twice the resonance frequency, find the energy delivered to the circuit during one period. 2. A 1.48-mF capacitor is connected to a North American electrical outlet (ΔVrms = 120 V, f = 60.0 Hz). Assuming the energy stored in the capacitor is zero at t = 0, determine the magnitude of the current in...
winkngs spring i(t) v(t) st VEE Figure 1: (a)Solenoid with retu spring. (b) Equivalent lumped electrical cireuit (...
winkngs spring i(t) v(t) st VEE Figure 1: (a)Solenoid with retu spring. (b) Equivalent lumped electrical cireuit (e) Equivalent mechanical diagram Figure 1(a) illustrates a solenoid with a return spring The voltage e(t) across the winding, causes a current it) to flow through the winding. which in turn generates a magnetic field The magnetic field induces a force f(t) on the plunger mass, . The magnitude of this force is related to the current in the windings via the solenoid's...
1. Figure G: The ideal battery has an emf of 14 V. What is the current...
1. Figure G: The ideal battery has an emf of 14 V. What is the current (A) in R a) 0.200 D0.250 b) 1.00 g) 0.100 c)0.500 h)0.235 2. Figure C shows, in cross section, a spherical conducting shell that surrounds a particle of charge -2e. The shell d) 0.667 i) 1.23 e) 0.750 has a net charge of -6e. What is the magnitude (N/C) of the electric field at point P, at distance2.00 m from the j)0.820 center of...
1. For a system described in Figure 1. x(t) - input voltage, y(t) - output voltage. (a) Determine Continuous Time (C.T.) "Math Model" when R = 1/3 121, L = 1/2 [F], and C = 1 [F]. (b) Fine "Zero Input Response". y zit. for the C.T.system. when y(0) = 1 [V], y'(0) = 2 IV (c) Draw "Zero Input Response". y_zi(t) with respect to time 1 (2-D graph) (d) Find impulse response, h(!). of the Continuous Time (C.T.) system....
Question 4 [15 Marks) a. The voltage, v(t), across a capacitor varies with time, t, according to v(t) = 2e-2t + 6 Calculate the average rate of change of the voltage from t = 1 to t = 2 b. Calculate the rate of change of y(x) = x2 + 2x when x = -5, without using the table of derivatives. C. Evaluate the following derivatives with the help of the table i. y = 2 tan+ y = 3x...
after two seconds? The Voltage across a resistor R is given by V(t)=e. 2t cos(+²+1) How fast is the Voltage Changing Round your answer to 3 decimals places.
Learning Goal: To analyze an RC circuit to determine the initial voltage across a capacitor, the time constant, and the expression for the natural response of the capacitor voltage, and then to find other circuit quantities such as current,voltage, power, or energy. The natural response of an RC circuit is the response of the capacitor voltage to the sudden removal of a DC source. When this occurs, the capacitor releases its stored energy Figure < 10121〉 t 0 V. Figure...
Figure 13-1
13) Find the voltage across the capacitor in Figure 13-1.
A) 0.633 V B) -4.9 V C) 5.37 V D) 10.7 V
14) If the resistance increases in Figure 13-1, the impedance
________.
A) decreases B) increases C) remains the same D) becomes
zero
15) As the frequency approaches the resonant frequency in Figure
13-1, the voltage across the resistor ________.
A) becomes increasingly unstable B) increases
C) remains the same D) decreases
Figure 13-2
16) If the...
winkngs spring i(t) v(t) st VEE Figure 1: (a)Solenoid with retu spring. (b) Equivalent lumped electrical cireuit (e) Equivalent mechanical diagram Figure 1(a) illustrates a solenoid with a return spring The voltage e(t) across the winding, causes a current it) to flow through the winding. which in turn generates a magnetic field The magnetic field induces a force f(t) on the plunger mass, . The magnitude of this force is related to the current in the windings via the solenoid's...
1. Figure G: The ideal battery has an emf of 14 V. What is the current (A) in R a) 0.200 D0.250 b) 1.00 g) 0.100 c)0.500 h)0.235 2. Figure C shows, in cross section, a spherical conducting shell that surrounds a particle of charge -2e. The shell d) 0.667 i) 1.23 e) 0.750 has a net charge of -6e. What is the magnitude (N/C) of the electric field at point P, at distance2.00 m from the j)0.820 center of...
