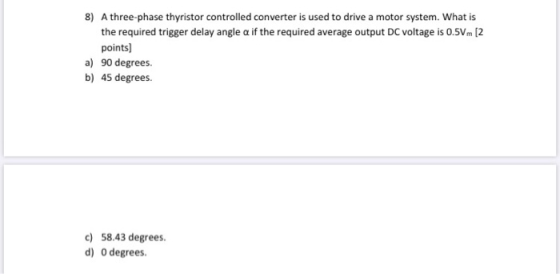

8) A three-phase thyristor controlled converter is used to drive a motor system. What is the...
The speed of a separately excited de motor is controlled by a one-phase full-wave converter. The field circuit is also controlled by a full-wave converter and the field current is set to its maximum...
The speed of a separately excited de motor is controlled by a one-phase full-wave converter. The field circuit is also controlled by a full-wave converter and the field current is set to its maximum value. The AC supply voltage to the armature and field converters is one-phase, 400V, 50Hz. The armature resistance Ra 0.232, the field circuit resistance Rf- 1812, and the motor voltage constant is Kv 1.3V/A - rad/s. The armature current corresponding to the load demand Ia 42A...
i. The speed of a separately excited dc motor is controlled by a one-phase full-wave converter. The field circuit is also controlled by a full-wave converter, see V supply) Vs pk-150V Ra-0.310 L Rf 1...
i. The speed of a separately excited dc motor is controlled by a one-phase full-wave converter. The field circuit is also controlled by a full-wave converter, see V supply) Vs pk-150V Ra-0.310 L Rf 152O E-63V α. 1-35A Figure 3 The AC supply voltage to the armature and field converters is one-phase, 150Vpeak, 50Hz. The armature resistance Ra-0.31Ω, the field circuit resistance Rf-152Ω, and the motor voltage constant is Kv-1.3V/A. The armature current corresponding to the load demand la-35A The...
4. A 3-phase full-wave converter drive is feeding power to a 220 V, 20 A, 1000...
4. A 3-phase full-wave converter drive is feeding power to a 220 V, 20 A, 1000 rpm separately excited dc motor. The ac input to the converters are 415 V, 3-phase, 50 Hz, Y-connected supply system. The field is also controlled by a 3-phase full converter and is set to the maximum possible value. The armature resistance is 0.5 Q and the field resistance is 250 12. The motor voltage constant is 1.2 V/A rad/s. Assume continuous conduction and ripple...
A three-phase, Y-connected, 6.9-kV, 8-pole, 60-Hz, synchronous motor has a synchronous impedance of 0.01+j6 Ω/phase. The...
A three-phase, Y-connected, 6.9-kV, 8-pole, 60-Hz, synchronous motor has a synchronous impedance of 0.01+j6 Ω/phase. The motor is energized at its rated voltage and frequency, and draws a line current of 100 A. The motor rotates a load, while operating at a lagging power factor of 0.9. Calculate the torque developed by the motor: (a) considering the armature resistance (b) neglecting the armature resistance
Problem # 1 A three-phase full converter controls the speed of a de motor. The motor's...
Problem # 1 A three-phase full converter controls the speed of a de motor. The motor's content is 0.1V/rpm. The motor armature resistance is 0.2 ohms. The supply (A-connected) line-to-line voltage is 1 10 volts with a line impedance of 0.5 mH. For α 50° and the motor speed of 900 rpm. Assume ripple-free operation. a) Draw the power circuit b) Determine the average value of the motor current. c) d) Detemine the supply power factor. c Compute the commutation...
A 100 kW, 500 V, 2000 r.p.m separately excited d.c. motor is energized from a 400...
A 100 kW, 500 V, 2000 r.p.m separately excited d.c. motor is energized from a 400 V, 50 Hz, three phase source through a three phase full converter. The voltage drop in conducting thyristors is 2 V. The d.c. motor armature resistance is 0.1 Ω, motor constant is 1.6 V-s/rad, rated armature current is 210 A and no-load armature current is 10% of rated current. Determine the following: i) Motor terminal voltage at a firing angle of 30 ii) No...
A separately excited dc motor is fed by a 3-phase, 6-pulse converter shown in figure Q5. The 3-phase line is a 500 V, 6...
A separately excited dc motor is fed by a 3-phase, 6-pulse converter shown in figure Q5. The 3-phase line is a 500 V, 60 Hz supply. At rated condition, the dc motor armature current is 15 A. The dc motor armature resistance is 0.15 Ω and the rated speed is 1700 rpm. If the delay angle of the converter is 36 °, calculate the following: 3-phase (2 0 line Figure Q5. (2 marks) Rated voltage of the motor a. b....
3. A 3-phase full-wave converter drive is feeding power to a 220 V, 20 A, 1500...
3. A 3-phase full-wave converter drive is feeding power to a 220 V, 20 A, 1500 rpm separately excited DC motor. The ac input to the converters are 415 V, 3-phase, 50 Hz, Y-connected supply system, connected through a step-down transformer so that the armature terminal voltage equals to rated voltage when converter firing angle is 0°. The resistance of the armature winding is 0.5 12. Determine the firing angle, i. when the motor is running at 1000 rpm and...
A power electronic converter used to drive a separately-excited DC motor for application in Sohar, Oman...
A power electronic converter used to drive a separately-excited DC motor for application in Sohar, Oman as shown in Figure Q2. Let R = 0.25 , K = 0.62 V/rpm.Wb, (flux per pole) = 175 mWb. The used converter is a single-phase, controlled full-wave bridge rectifier. Assume the firing angle is 45°, and the average speed is 1300 rpm and torque constant K is 9.55 of K. Assuming the motor current is continuous; calculate the armature current drawn by the...
1. A seperately excited DC motor operating from a single phase half controlled bridge at a...
1. A seperately excited DC motor operating from a single phase half controlled bridge at a speed of 1400rpm, has an input voltage of 33 sin 314t and a back emf of 80V. TheSCRs are fired symmetrically at an angle of 30 deg in every half cycle and the armature has a resistance of 4ohms. Calculate the average armature current and the motor torque.
The speed of a separately excited de motor is controlled by a one-phase full-wave converter. The field circuit is also controlled by a full-wave converter and the field current is set to its maximum value. The AC supply voltage to the armature and field converters is one-phase, 400V, 50Hz. The armature resistance Ra 0.232, the field circuit resistance Rf- 1812, and the motor voltage constant is Kv 1.3V/A - rad/s. The armature current corresponding to the load demand Ia 42A...
i. The speed of a separately excited dc motor is controlled by a one-phase full-wave converter. The field circuit is also controlled by a full-wave converter, see V supply) Vs pk-150V Ra-0.310 L Rf 152O E-63V α. 1-35A Figure 3 The AC supply voltage to the armature and field converters is one-phase, 150Vpeak, 50Hz. The armature resistance Ra-0.31Ω, the field circuit resistance Rf-152Ω, and the motor voltage constant is Kv-1.3V/A. The armature current corresponding to the load demand la-35A The...
4. A 3-phase full-wave converter drive is feeding power to a 220 V, 20 A, 1000 rpm separately excited dc motor. The ac input to the converters are 415 V, 3-phase, 50 Hz, Y-connected supply system. The field is also controlled by a 3-phase full converter and is set to the maximum possible value. The armature resistance is 0.5 Q and the field resistance is 250 12. The motor voltage constant is 1.2 V/A rad/s. Assume continuous conduction and ripple...
Problem # 1 A three-phase full converter controls the speed of a de motor. The motor's content is 0.1V/rpm. The motor armature resistance is 0.2 ohms. The supply (A-connected) line-to-line voltage is 1 10 volts with a line impedance of 0.5 mH. For α 50° and the motor speed of 900 rpm. Assume ripple-free operation. a) Draw the power circuit b) Determine the average value of the motor current. c) d) Detemine the supply power factor. c Compute the commutation...
A separately excited dc motor is fed by a 3-phase, 6-pulse converter shown in figure Q5. The 3-phase line is a 500 V, 60 Hz supply. At rated condition, the dc motor armature current is 15 A. The dc motor armature resistance is 0.15 Ω and the rated speed is 1700 rpm. If the delay angle of the converter is 36 °, calculate the following: 3-phase (2 0 line Figure Q5. (2 marks) Rated voltage of the motor a. b....
3. A 3-phase full-wave converter drive is feeding power to a 220 V, 20 A, 1500 rpm separately excited DC motor. The ac input to the converters are 415 V, 3-phase, 50 Hz, Y-connected supply system, connected through a step-down transformer so that the armature terminal voltage equals to rated voltage when converter firing angle is 0°. The resistance of the armature winding is 0.5 12. Determine the firing angle, i. when the motor is running at 1000 rpm and...
A power electronic converter used to drive a separately-excited DC motor for application in Sohar, Oman as shown in Figure Q2. Let R = 0.25 , K = 0.62 V/rpm.Wb, (flux per pole) = 175 mWb. The used converter is a single-phase, controlled full-wave bridge rectifier. Assume the firing angle is 45°, and the average speed is 1300 rpm and torque constant K is 9.55 of K. Assuming the motor current is continuous; calculate the armature current drawn by the...
