Homework Answers

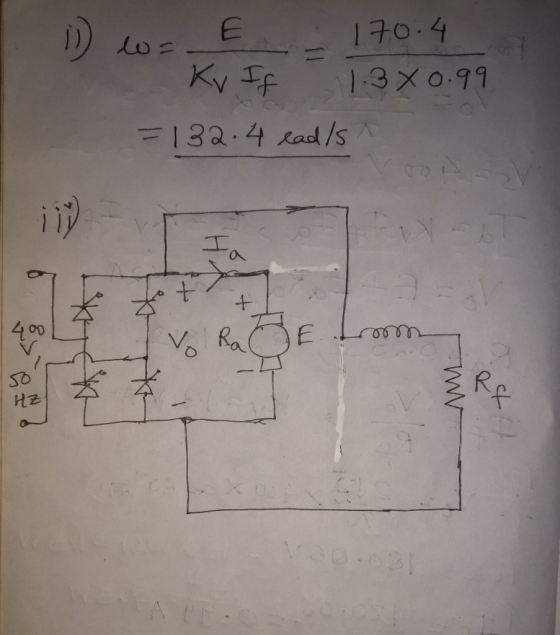

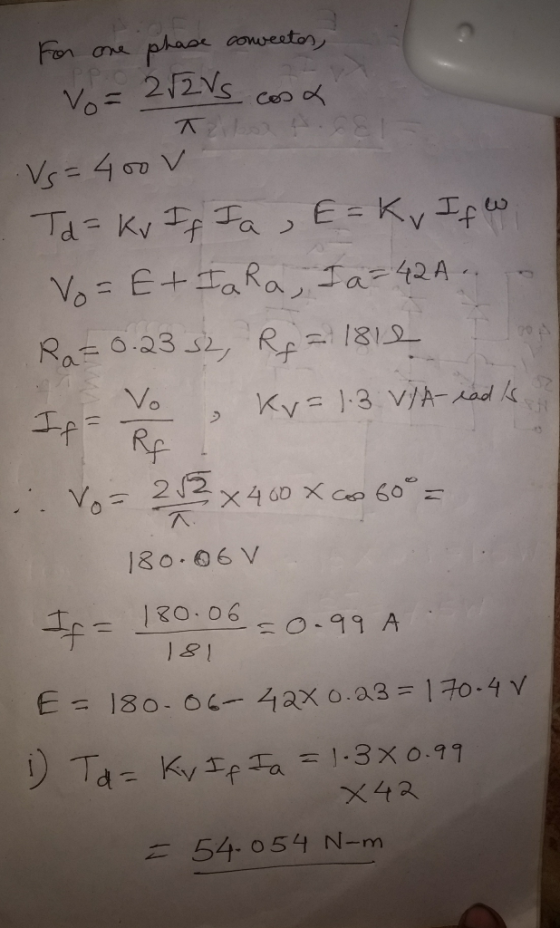

Apply the formulae for full wave converter and dc motor to get correct results as follows.
Hope you understood. A thumbs up would be appreciated.
Add Answer to:
The speed of a separately excited de motor is controlled by a one-phase full-wave converter. The field circuit is also controlled by a full-wave converter and the field current is set to its maximum...
i. The speed of a separately excited dc motor is controlled by a one-phase full-wave converter. The field circuit is also controlled by a full-wave converter, see V supply) Vs pk-150V Ra-0.310 L Rf 1...
i. The speed of a separately excited dc motor is controlled by a one-phase full-wave converter. The field circuit is also controlled by a full-wave converter, see V supply) Vs pk-150V Ra-0.310 L Rf 152O E-63V α. 1-35A Figure 3 The AC supply voltage to the armature and field converters is one-phase, 150Vpeak, 50Hz. The armature resistance Ra-0.31Ω, the field circuit resistance Rf-152Ω, and the motor voltage constant is Kv-1.3V/A. The armature current corresponding to the load demand la-35A The...
4. A 3-phase full-wave converter drive is feeding power to a 220 V, 20 A, 1000...
4. A 3-phase full-wave converter drive is feeding power to a 220 V, 20 A, 1000 rpm separately excited dc motor. The ac input to the converters are 415 V, 3-phase, 50 Hz, Y-connected supply system. The field is also controlled by a 3-phase full converter and is set to the maximum possible value. The armature resistance is 0.5 Q and the field resistance is 250 12. The motor voltage constant is 1.2 V/A rad/s. Assume continuous conduction and ripple...
3. A controlled single-phase fiull-wave controlled rectifier is connected in a de motor drive in Figure...
3. A controlled single-phase fiull-wave controlled rectifier is connected in a de motor drive in Figure 4. The de motor armature inductance can be assumed large enough such that any motor curent ripple is negligible. (a) Assuming negligible supply reactance, show that the average rectifier output voltage V, in tems of the supply ms voltage E and the firing angle a, is given by 2/2E (6 marks) cos a _ (b) Given that the supply voltage is 230V, 50HZ and...
8) A three-phase thyristor controlled converter is used to drive a motor system. What is the...
8) A three-phase thyristor controlled converter is used to drive a motor system. What is the required trigger delay angle a if the required average output DC voltage is 0.5Vm [2 points) a) 90 degrees. b) 45 degrees. c) 58.43 degrees. d) O degrees. 9) A 3-point motor starter arrangement is shown in the diagram below (1 point). Starting Resistence No volt col OFF Soft ron piece Starter handie Spring Over load release Lever Trangular iron Three Point Starter As...
A separately excited dc motor is fed by a 3-phase, 6-pulse converter shown in figure Q5. The 3-phase line is a 500 V, 6...
A separately excited dc motor is fed by a 3-phase, 6-pulse converter shown in figure Q5. The 3-phase line is a 500 V, 60 Hz supply. At rated condition, the dc motor armature current is 15 A. The dc motor armature resistance is 0.15 Ω and the rated speed is 1700 rpm. If the delay angle of the converter is 36 °, calculate the following: 3-phase (2 0 line Figure Q5. (2 marks) Rated voltage of the motor a. b....
A power electronic converter used to drive a separately-excited DC motor for application in Sohar, Oman...
A power electronic converter used to drive a separately-excited DC motor for application in Sohar, Oman as shown in Figure Q2. Let R = 0.25 , K = 0.62 V/rpm.Wb, (flux per pole) = 175 mWb. The used converter is a single-phase, controlled full-wave bridge rectifier. Assume the firing angle is 45°, and the average speed is 1300 rpm and torque constant K is 9.55 of K. Assuming the motor current is continuous; calculate the armature current drawn by the...
6. The speed of a 150 HP, 650 V, 1750 rpm, separately excited DC motor is...
6. The speed of a 150 HP, 650 V, 1750 rpm, separately excited DC motor is controlled by a 3- phase full converter. The converter is operating from 3-phase, 460 V, 50 Hz supply. The rated armature current of the motor is 170 A. The motor parameters are Ra = 0.099 2, La = 0.73 mH, and K.D=0.33 V/rpm. Neglect the losses in converter system. Determine i. No-load speed at firing angles a = 0º and a = 30°. Assume...
Problem # 1 A three-phase full converter controls the speed of a de motor. The motor's...
Problem # 1 A three-phase full converter controls the speed of a de motor. The motor's content is 0.1V/rpm. The motor armature resistance is 0.2 ohms. The supply (A-connected) line-to-line voltage is 1 10 volts with a line impedance of 0.5 mH. For α 50° and the motor speed of 900 rpm. Assume ripple-free operation. a) Draw the power circuit b) Determine the average value of the motor current. c) d) Detemine the supply power factor. c Compute the commutation...
3. A 3-phase full-wave converter drive is feeding power to a 220 V, 20 A, 1500...
3. A 3-phase full-wave converter drive is feeding power to a 220 V, 20 A, 1500 rpm separately excited DC motor. The ac input to the converters are 415 V, 3-phase, 50 Hz, Y-connected supply system, connected through a step-down transformer so that the armature terminal voltage equals to rated voltage when converter firing angle is 0°. The resistance of the armature winding is 0.5 12. Determine the firing angle, i. when the motor is running at 1000 rpm and...
A 100 kW, 500 V, 2000 r.p.m separately excited d.c. motor is energized from a 400...
A 100 kW, 500 V, 2000 r.p.m separately excited d.c. motor is energized from a 400 V, 50 Hz, three phase source through a three phase full converter. The voltage drop in conducting thyristors is 2 V. The d.c. motor armature resistance is 0.1 Ω, motor constant is 1.6 V-s/rad, rated armature current is 210 A and no-load armature current is 10% of rated current. Determine the following: i) Motor terminal voltage at a firing angle of 30 ii) No...
i. The speed of a separately excited dc motor is controlled by a one-phase full-wave converter. The field circuit is also controlled by a full-wave converter, see V supply) Vs pk-150V Ra-0.310 L Rf 152O E-63V α. 1-35A Figure 3 The AC supply voltage to the armature and field converters is one-phase, 150Vpeak, 50Hz. The armature resistance Ra-0.31Ω, the field circuit resistance Rf-152Ω, and the motor voltage constant is Kv-1.3V/A. The armature current corresponding to the load demand la-35A The...
4. A 3-phase full-wave converter drive is feeding power to a 220 V, 20 A, 1000 rpm separately excited dc motor. The ac input to the converters are 415 V, 3-phase, 50 Hz, Y-connected supply system. The field is also controlled by a 3-phase full converter and is set to the maximum possible value. The armature resistance is 0.5 Q and the field resistance is 250 12. The motor voltage constant is 1.2 V/A rad/s. Assume continuous conduction and ripple...
3. A controlled single-phase fiull-wave controlled rectifier is connected in a de motor drive in Figure 4. The de motor armature inductance can be assumed large enough such that any motor curent ripple is negligible. (a) Assuming negligible supply reactance, show that the average rectifier output voltage V, in tems of the supply ms voltage E and the firing angle a, is given by 2/2E (6 marks) cos a _ (b) Given that the supply voltage is 230V, 50HZ and...
8) A three-phase thyristor controlled converter is used to drive a motor system. What is the required trigger delay angle a if the required average output DC voltage is 0.5Vm [2 points) a) 90 degrees. b) 45 degrees. c) 58.43 degrees. d) O degrees. 9) A 3-point motor starter arrangement is shown in the diagram below (1 point). Starting Resistence No volt col OFF Soft ron piece Starter handie Spring Over load release Lever Trangular iron Three Point Starter As...
A separately excited dc motor is fed by a 3-phase, 6-pulse converter shown in figure Q5. The 3-phase line is a 500 V, 60 Hz supply. At rated condition, the dc motor armature current is 15 A. The dc motor armature resistance is 0.15 Ω and the rated speed is 1700 rpm. If the delay angle of the converter is 36 °, calculate the following: 3-phase (2 0 line Figure Q5. (2 marks) Rated voltage of the motor a. b....
A power electronic converter used to drive a separately-excited DC motor for application in Sohar, Oman as shown in Figure Q2. Let R = 0.25 , K = 0.62 V/rpm.Wb, (flux per pole) = 175 mWb. The used converter is a single-phase, controlled full-wave bridge rectifier. Assume the firing angle is 45°, and the average speed is 1300 rpm and torque constant K is 9.55 of K. Assuming the motor current is continuous; calculate the armature current drawn by the...
6. The speed of a 150 HP, 650 V, 1750 rpm, separately excited DC motor is controlled by a 3- phase full converter. The converter is operating from 3-phase, 460 V, 50 Hz supply. The rated armature current of the motor is 170 A. The motor parameters are Ra = 0.099 2, La = 0.73 mH, and K.D=0.33 V/rpm. Neglect the losses in converter system. Determine i. No-load speed at firing angles a = 0º and a = 30°. Assume...
Problem # 1 A three-phase full converter controls the speed of a de motor. The motor's content is 0.1V/rpm. The motor armature resistance is 0.2 ohms. The supply (A-connected) line-to-line voltage is 1 10 volts with a line impedance of 0.5 mH. For α 50° and the motor speed of 900 rpm. Assume ripple-free operation. a) Draw the power circuit b) Determine the average value of the motor current. c) d) Detemine the supply power factor. c Compute the commutation...
3. A 3-phase full-wave converter drive is feeding power to a 220 V, 20 A, 1500 rpm separately excited DC motor. The ac input to the converters are 415 V, 3-phase, 50 Hz, Y-connected supply system, connected through a step-down transformer so that the armature terminal voltage equals to rated voltage when converter firing angle is 0°. The resistance of the armature winding is 0.5 12. Determine the firing angle, i. when the motor is running at 1000 rpm and...
