I. Implement a 8 to 1 multiplexer from 2 to 1 multiplexers

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

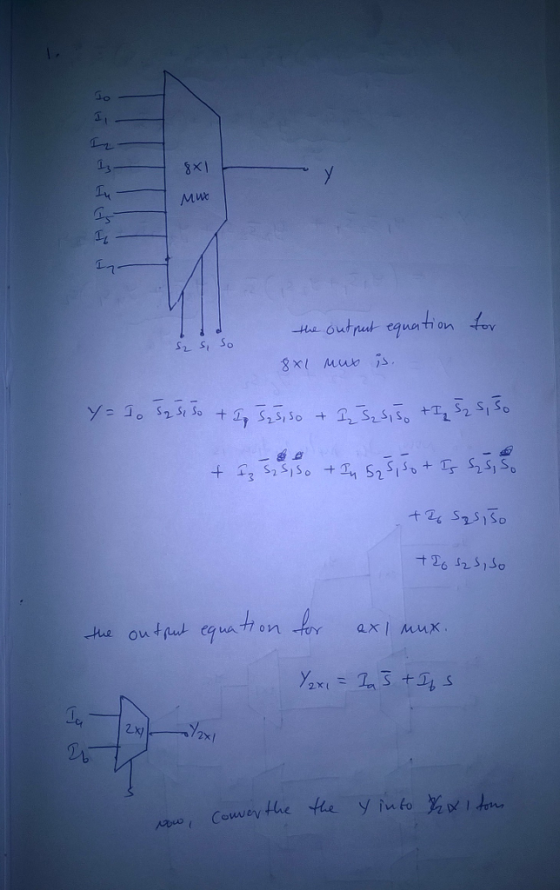

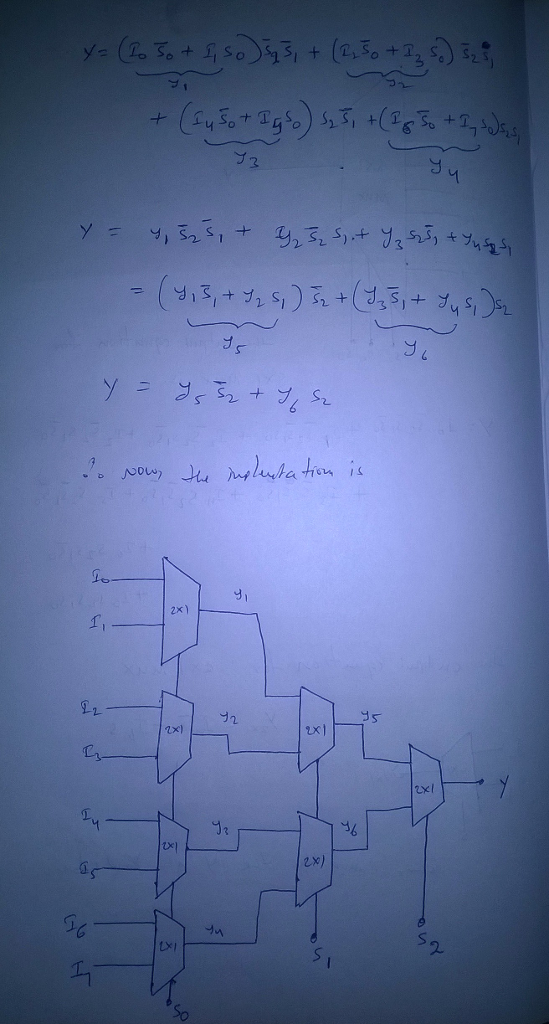

( ㄣˊ 8x1 an s Si So 2x/ noo Couvey the He げ3 2x) T び! 2 X 2.

(If you have any query leave any query leave a comment, Thank you)

Answer 2

Similar Homework Help Questions

Make a 24:1 multiplexer using only 8:1 multiplexers

Make a 24:1 multiplexer using only 8:1 multiplexers
I just need help on this, I also cannot find the correct 8x1 multiplexer in Quartus...

I just need help on this, I also cannot find the correct 8x1 multiplexer in Quartus Digital Systems Laboratory ECE-215L Lab 5 - In-Lab PURPOSE: To design and implement circuits utilizing digital multiplexers. PRE-LAB READINGS AND EXERCISES: Prior to the lab period, perform the following readings and exercises. Reading: Review information (on combinational circuits, specifically different types of decoders/encoders and multiplexers) in the ECE 215 textbook. Exercises: a. Using the Quartus schematic capture, implement a 16-to-1 multiplexer using two IC-741515...
Implement the following functions with the indicated multiplexers and control inputs. 1. f(P,Q,R) = (P' +...

Implement the following functions with the indicated multiplexers and control inputs. 1. f(P,Q,R) = (P' + Q')R', 8:1 multiplexer

Implement the function R = ab'h' + bch' + eg'h + fgh using *only* 2-to-1 multiplexers....

Implement the function R = ab'h' + bch' + eg'h + fgh using *only* 2-to-1 multiplexers. Use the 2-to-1 multiplexer VHDL description from Problem 1 as a component to write VHDL code for the circuit design of function R. Perform CAD simulation of your design. (60)
Q3. Construct a 10-to-1 line multiplexer with three 4-to-1 line multiplexers. The multiplexers should be interconnected...

Q3. Construct a 10-to-1 line multiplexer with three 4-to-1 line multiplexers. The multiplexers should be interconnected and inputs labeled so that the selection codes 0000 through 1001 can be directly applied to the multiplexer selections inputs without added logic.
answer as u can make it up Lab #7-8 Objectives: 1. To understand Multiplexers and De-multiplexers....

answer as u can make it up Lab #7-8 Objectives: 1. To understand Multiplexers and De-multiplexers. 2. To implement a basic multiplexer using AND, OR, and NOT, gates. 3. To verify the operation of Integrated Mulitplexers. Equipment: Digital Multi-meter, Breadboard, Power Supply, Function Generator, Oscilloscope. Components: 7404, 7408, 7432, 74151, 74138, LEDs, Resistors Procedure: 7. Draw the schematic of a 2-1 De-multiplexer using basic gates. 8. Write down the IC numbers and pin numbers of the gates in your schematic....

How do you make a 8x16 multiplexer from 4x4 multiplexers?

How do you make a 8x16 multiplexer from 4x4 multiplexers?
ECE 275 - DIGITAL DESIGN Question 1: (@) Write VHDL code for a 2-to-1 multiplexer. -...

ECE 275 - DIGITAL DESIGN Question 1: (@) Write VHDL code for a 2-to-1 multiplexer. - (6) Implement - using only the Sunction R= ab h + bch' + eg h + 8 h 2-to-1 multiplexers. Use the 2-to-1 multiplexer VHDL description as a component to write VHDL code for the of Sunction R, from Problem 1 circuit design
1. Give the design of 8x1 multiplexer using 2x1 multiplexers. and 2. Design a 3x6 decoder.

1. Give the design of 8x1 multiplexer using 2x1 multiplexers. and 2. Design a 3x6 decoder.

Design an 8x1 multiplexer with three 4x1 multiplexers. Use block diagrams for the multiplexers and show...

Design an 8x1 multiplexer with three 4x1 multiplexers. Use block diagrams for the multiplexers and show the indices of all inputs and outputs. Hint: some data inputs may not be used.
