For this problem, assume 4 bits precision. Add two binary numbers, 1.110 two x 2 -7...

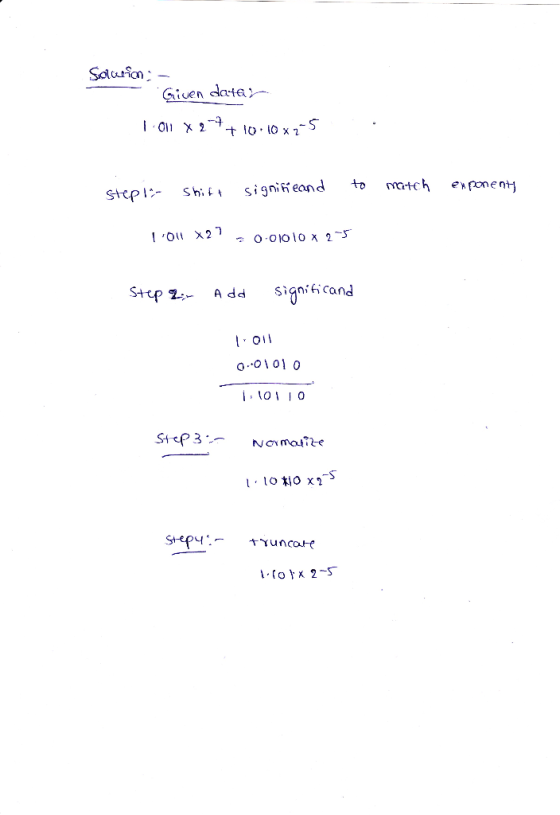

For this problem, assume 4 bits precision. Add two binary numbers, 1.110 two x 2 -7 and 1.010 two x 2 -5 by showing the following steps:
Step1: The significand of the number with the lesser exponent is shifted right to match the exponent of the larger number.
Step2: Add the significands. (you can assume that you can carry all digits)
Step3: Normalize the sum, determine whether there is an overflow or an underflow.
Step4: Truncate the sum (using 4 bits precision.)
Homework Answers
Add Answer to:
For this problem, assume 4 bits precision. Add two binary
numbers, 1.110 two x 2 -7...
Problem 4 (10 points): 1. Consider the numbers 23.724 and 0.3344770219. Please normalize both 2. ...
please help
Problem 4 (10 points): 1. Consider the numbers 23.724 and 0.3344770219. Please normalize both 2. Calculate their sum by hand. 3. Convert to binary assuming each number is stored in a 16-bit register. Half-precision binary floating-point has: sign bit: lbit, exponent width: 5bits and a bias of 15, and significand 10 bits (16 bits total) 4. Show cach step of their binary addition, assuming you have one guard, one round, and one sticky bit, rounding to the nearest...
computer architecture The sum of the two 32 bit integers may not be representable in 32 bits. In this case, we say that an overflow has occurred. Write MIPS instructions that adds two numbers stor...
computer architecture
The sum of the two 32 bit integers may not be representable in 32 bits. In this case, we say that an overflow has occurred. Write MIPS instructions that adds two numbers stored in registers Ss1 and Ss2, stores the sum in register $s3, and sets register Sto to 1 if an overflow occurs and to 0 otherwise. 5. (16pts) 6. Show the IEEE 754 binary representation of the number -7.425 in a single and double 7. If...
2. Perform the following binary multiplications, assuming unsigned integers: B. 10011 x 011 C. 11010 x...
2. Perform the following binary multiplications, assuming unsigned integers: B. 10011 x 011 C. 11010 x 1011 3. Perform the following binary divisions, assuming unsigned integers: B. 10000001 / 101 C. 1001010010 / 1011 4. Assume we are using the simple model for floating-point representation as given in the text (the representation uses a 14-bit format, 5 bits for the exponent with a bias of 16, a normalized mantissa of 8 bits, and single sign bit for the number ):...
number 4 and 5 please! PROBLEM STATEMENT A logic circuit is needed to add multi-bit binary...
number 4 and 5 please!
PROBLEM STATEMENT A logic circuit is needed to add multi-bit binary numbers. A 2-level circuit that would add two four-bit numbers would have 9 inputs and five outputs. Although a 2-level SOP or POS circuit theoretically would be very fast, it has numerous drawbacks that make it impractical. The design would be very complex in terms of the number of logic gates. The number of inputs for each gate would challenge target technologies. Testing would...
please help
Problem 4 (10 points): 1. Consider the numbers 23.724 and 0.3344770219. Please normalize both 2. Calculate their sum by hand. 3. Convert to binary assuming each number is stored in a 16-bit register. Half-precision binary floating-point has: sign bit: lbit, exponent width: 5bits and a bias of 15, and significand 10 bits (16 bits total) 4. Show cach step of their binary addition, assuming you have one guard, one round, and one sticky bit, rounding to the nearest...
computer architecture
The sum of the two 32 bit integers may not be representable in 32 bits. In this case, we say that an overflow has occurred. Write MIPS instructions that adds two numbers stored in registers Ss1 and Ss2, stores the sum in register $s3, and sets register Sto to 1 if an overflow occurs and to 0 otherwise. 5. (16pts) 6. Show the IEEE 754 binary representation of the number -7.425 in a single and double 7. If...
number 4 and 5 please!
PROBLEM STATEMENT A logic circuit is needed to add multi-bit binary numbers. A 2-level circuit that would add two four-bit numbers would have 9 inputs and five outputs. Although a 2-level SOP or POS circuit theoretically would be very fast, it has numerous drawbacks that make it impractical. The design would be very complex in terms of the number of logic gates. The number of inputs for each gate would challenge target technologies. Testing would...
