A power plant serves a factory having two 22 kw motors and ten 3.7 kw motors....

A power plant serves a factory having two 22 kw motors and ten 3.7 kw motors. Assume the
efficiency of motors 80%, of transmission line 95%, of generator 92%. (a) What should the rated
capacity of the generator be if it is assumed that all motors might be delivering their rated power
simultaneously? (b) What should the rated capacity of the engine be?

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

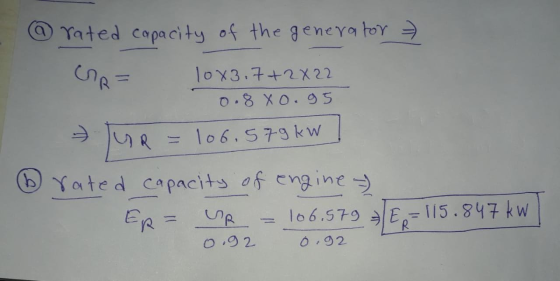

rated capacity of the generator - 10x3.7+2X 22 0.8xo.95 - UR = 106.579kw ] rated capacity of Engine ER= UR = 106.579 0.92 0.9

0 0
