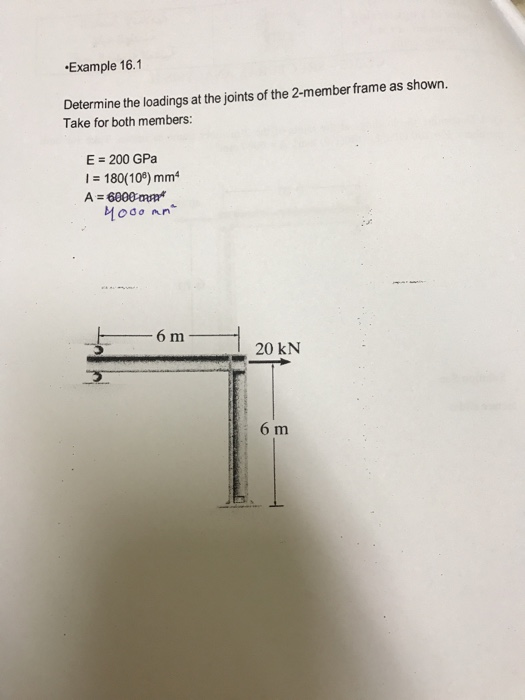

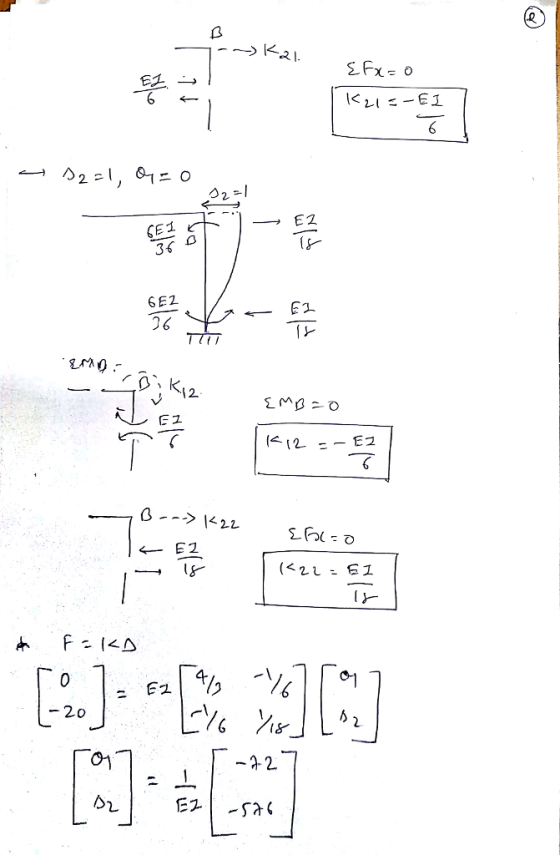

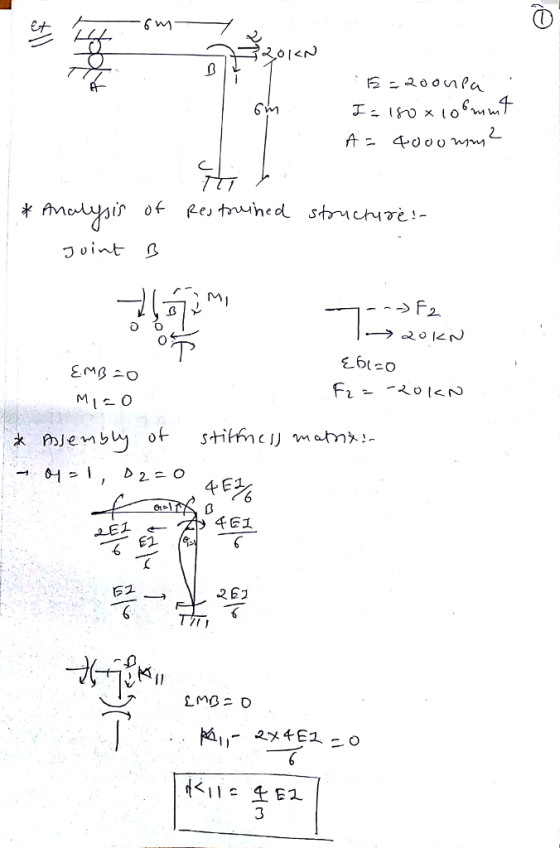

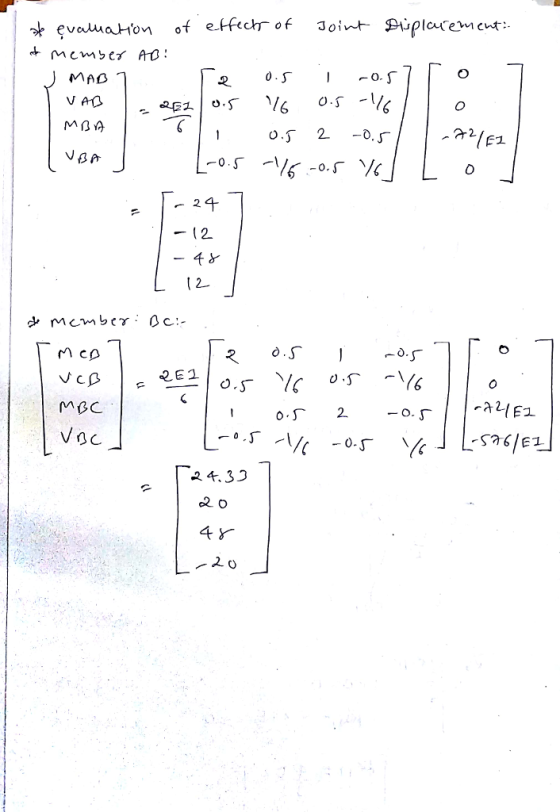

Example 16.1 Determine the loadings at the joints of the 2-member frame as shown. Take for...
tatically determinate or indeterminate frame analysis by the stiffness method (45 marks) a) Determine the stiffiness matrix of the frame of problems 16.5 and 16.6 (p. 619). Indicate the degrees-of freedom in all the stiffness matrices. b) D Q4. S (10 marks) etermine all the displacement components at node 2 and all the reactions including the reactions at node 2. Show all calculations. c) (18 marks) of the frame on the compression side showing all the salient values (5 marks)...
16-5. Determine the structure stiffness matrix K for the 200 GPa, are fixed. Take E and frame. Assume 1-300 105) mm,A 10(10) mm2 for each member. 16-6. Determine the support reactions at the fixed supports D and . Take E-200 GPa,1 300 (10) mm, A 10(10) mm2 for each member. 12 kN/m 2 m 4 m 12 2 m Probs. 16-5/6
16-5. Determine the structure stiffness matrix K for the 200 GPa, are fixed. Take E and frame. Assume 1-300...
QUESTION 1 [25 marks A frame loaded with a uniformly distributed load at Member AB and point load at Member BC and joint B. It has pinned supports A and C, while joint B is fixed connected, as can be seen in Figure 1. Take E-200 GPa. a) Using the slope-deflection method, calculate the moments and illustrate the bending moment diagram. [15 marks) b) Then calculate the shear forces and sketch the shear force diagram. [10 marks) 22 KN 10...
Figure 3b() shows a step beam with different moment of inertia in member 1 and 2. Assemble the structure stiffness matrix, Ke. Then, calculate the reactions at both supports by using matrik stifness method. Assuming the elastic modulus of beam, E 200 GPa. 150 kN 3 5m 2 10 m 1 = 500 x 106 mm4 I = 250 x 106 mm 4 Rajah 3b(@)/Figure 3b() Given: Stiffness relations for a beam element 12 6 12 6 z12 12 6...
The frame shown below is fixed at A and C, and is supported by a roller at B. Use the numbering shown for the members and joints and determine the support reactions at all supports of the frame using the Stiffness Method. The 10 kN force is applied at the middle of the beam, and the 12 kN/m load is uniformly distributed on the column Take E = 200 GPa, 1 = 300(109) mm+ and A = 10(10-) mm2 for...
Using the stiffness method, determine the axial forces within
members and the displacements of joints of the truss shown in the
Figure 1. The truss was built using 50 mm x 50 mm x 3 mm SHS with
E= 200 GPa (approx). (Cross members BD and CE are not connected at
the middle)
(a) Show local stiffness matrices for each member and the
assembled global stiffness matrix. Show your step by step solution.
(30 Marks)
(b) Use an appropriate method...
The plane truss is subjected to a load as shown in Figure 4. Take E = 200 GPa and cross sectional areas of members 1, 2 and 3 as 150, 250 and 200 mm2 respectively a) Assemble the upper triangular part of the global stiffness matrix for the truss b) Determine the horizontal and vertical displacements at node 4 c) Calculate the forces in each member of the truss. (25 marks) 20 kN 3 60° 4 1.5m 2 2 20m...
Q2. Statically determinate or indeterminate truss analysis by
the stiffness method. (50 marks)
a) Determine the stiffness matrix of the whole truss given in
problems 14.9 and 14.10 (p. 583). Indicate the degrees-of freedom
in all the stiffness matrices. (18 marks)
b) Calculate all the nodal displacements and all the member forces
for the truss.
(16 marks)
14-9. Determine the stiffness matrix K for the trus Take A 0.0015 m2 and E 200 GPa for each member. 2 12 4...
Question 4 The plane truss is subjected to a load as shown in Figure 4. Take E = 200 GPa and cross sectional areas of members 1, 2 and 3 as 150, 250 and 200 mm2 respectively a) Assemble the upper triangular part of the global stiffness matrix for the truss. b) Determine the horizontal and vertical displacements at node 4. c) Calculate the forces in each member of the truss. (25 marks) 20 kN 3 600 4 3 1.5m...
do 14-9 please .
nine the stiffness matrix K for the truss. AE is nnstant l Determine ine the force in member 6. Take Dt andE200 GPa for each member. ermine the force in member 1 if this colution remove the 10-kN tb 1S 00015 m2 andthe 14 ar member ng before it was fitted into the truss. For ve the 10-kN load. Take A 0.0015 m2 200 GPa for each member. 4 6 4 10 kN
nine the stiffness...
