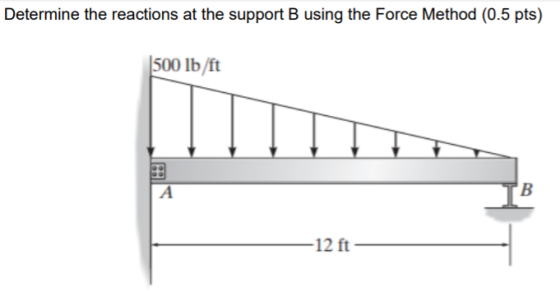

Determine the reactions at the support B using the Force Method

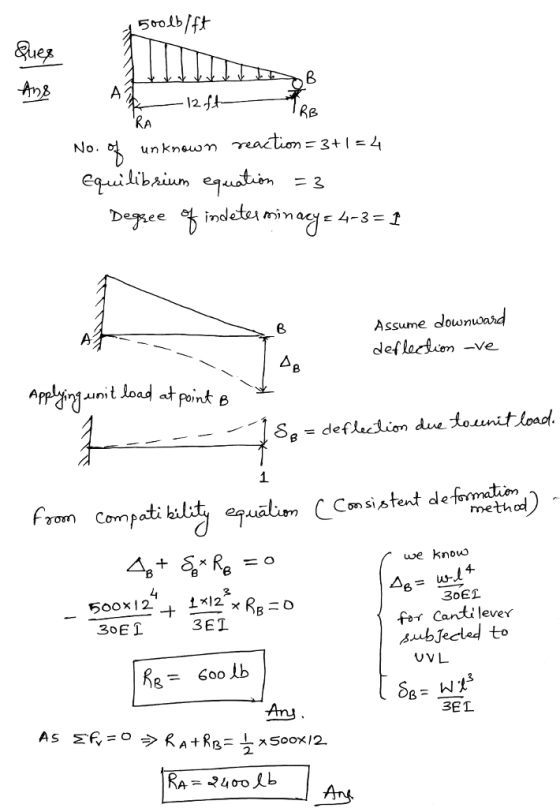

Homework Answers
Add Answer to:
Determine the reactions at the support B using the Force
Method
Determine the reactions at the...
Using the force method, Determine the reactions at supports. EI is constant. Determine the reactions at...
Using the force method, Determine the reactions at
supports. EI is constant.
Determine the reactions at supports. El is constant. 500 lb/ft 3k 10 ft- SA 0 a 6.5 (10) 10 ft - 2.5 uz
2.[1251 Determine the support reaction at the roller B using the Force Method. The support at A i...
please I need someone to do it clearly.
2.[1251 Determine the support reaction at the roller B using the Force Method. The support at A is a roller and C is a pin. 500 lb 120 lb/ft 12ft 5 ft 5 ft- a. 130) Write the compatibility condition. Include sketches of the primary structure and redundant condition with the flexibility coefficient. Chose B, as the redundant force b. 160] Solve for ABy using virtual work 130] Draw the shear and...
Determine the support reactions and the force in member CE for the truss : 8 ft...
Determine the support reactions and the force in member CE for
the truss :
8 ft *4fty 300 lb D E F 8 ft A B 3 1000 lb 8 ft * 8 ft
Problem 3.5 Determine the forces in all members of the below structure using the method of joints...
Problem 3.5 Determine the forces in all members of the below structure using the method of joints. Calculate the support reactions as needed and indicate the zero force members if any. 600 lb 450 lb YE 30° 3 ft 3 ft
Problem 3.5 Determine the forces in all members of the below structure using the method of joints. Calculate the support reactions as needed and indicate the zero force members if any. 600 lb 450 lb YE 30° 3 ft...
8 ft #417 PROBLEM 4 Determine the support reactions and the force in member CE for...
8 ft #417 PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D E 8 ft А B 1000 lb 8 ft + 8 ft
—8 ft * 4 fit PROBLEM 4 Determine the support reactions and the force in member...
—8 ft * 4 fit PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D E F 8 ft A B 3 1000 lb 8 ft- 8 ft
K8 ft * 4 ft PROBLEM 4 Determine the support reactions and the force in member...
K8 ft * 4 ft PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D E F 8 ft A B C 4 3 1000 lb 8 ft * 8 ft
8 ft PROBLEM 4 *4ftY E F Determine the support reactions and the force in member...
8 ft PROBLEM 4 *4ftY E F Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D 8 ft A B 4 3 1000 lb 8 ft * 8 ft
8f-4f-4 PROBLEM 4 Determine the support reactions and the force in member CE for the truss...
8f-4f-4 PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D E 8 ft B 1000 lb 8f- -8 ft-
If the member EF was removed and the support at F was replaced as shown below, determine the support forces at E and F 500 lb 500 lb 12 ft 12 ft12 ft 12 ft 15 ft Support force at E, (Ex, Ey). 1 pt] l...
If the member EF was removed and the support at F was replaced as shown below, determine the support forces at E and F 500 lb 500 lb 12 ft 12 ft12 ft 12 ft 15 ft Support force at E, (Ex, Ey). 1 pt] lb (Sign: negative if leftwards or downwards) Support force at F, (Fx, Fy). [1 pt] )lb (Sign: negative if leftwards or downwards)
If the member EF was removed and the support at F was replaced...
Using the force method, Determine the reactions at
supports. EI is constant.
Determine the reactions at supports. El is constant. 500 lb/ft 3k 10 ft- SA 0 a 6.5 (10) 10 ft - 2.5 uz
please I need someone to do it clearly.
2.[1251 Determine the support reaction at the roller B using the Force Method. The support at A is a roller and C is a pin. 500 lb 120 lb/ft 12ft 5 ft 5 ft- a. 130) Write the compatibility condition. Include sketches of the primary structure and redundant condition with the flexibility coefficient. Chose B, as the redundant force b. 160] Solve for ABy using virtual work 130] Draw the shear and...
Determine the support reactions and the force in member CE for
the truss :
8 ft *4fty 300 lb D E F 8 ft A B 3 1000 lb 8 ft * 8 ft
Problem 3.5 Determine the forces in all members of the below structure using the method of joints. Calculate the support reactions as needed and indicate the zero force members if any. 600 lb 450 lb YE 30° 3 ft 3 ft
Problem 3.5 Determine the forces in all members of the below structure using the method of joints. Calculate the support reactions as needed and indicate the zero force members if any. 600 lb 450 lb YE 30° 3 ft...
8 ft #417 PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D E 8 ft А B 1000 lb 8 ft + 8 ft
—8 ft * 4 fit PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D E F 8 ft A B 3 1000 lb 8 ft- 8 ft
K8 ft * 4 ft PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D E F 8 ft A B C 4 3 1000 lb 8 ft * 8 ft
8 ft PROBLEM 4 *4ftY E F Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D 8 ft A B 4 3 1000 lb 8 ft * 8 ft
8f-4f-4 PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D E 8 ft B 1000 lb 8f- -8 ft-
If the member EF was removed and the support at F was replaced as shown below, determine the support forces at E and F 500 lb 500 lb 12 ft 12 ft12 ft 12 ft 15 ft Support force at E, (Ex, Ey). 1 pt] lb (Sign: negative if leftwards or downwards) Support force at F, (Fx, Fy). [1 pt] )lb (Sign: negative if leftwards or downwards)
If the member EF was removed and the support at F was replaced...
