Homework Answers
Solution,
A)
Energy = power x time = 0.460 x 0.12 = 0.055 J
B)
Power, P = voltage x current
0.460 = 3 x I
Current, I = 0.153 A
Charge, Q = I t = 0.153 x 0.12 = 0.018 C
C)
Charge, Q = CV
0.018 = C x 3
C = 0.0061 F
D)
Resistance, R = V/I = 3/0.153 = 19.61 ohm
Comment in case any doubt please rate my answer ...
Add Answer to:

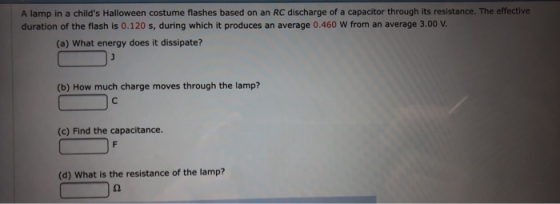

A lamp in a child's Halloween costume flashes based on an RC discharge of a capacitor...
