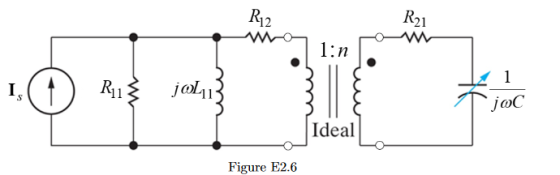

The AC circuit depicted in Figure E2.6 includes an ideal transformer and operates at ?= 20...
The AC circuit depicted in Figure E2.6 includes an ideal transformer and operates at ?= 20 krad/sec.
Further, the circuit components are given as follows:
•Source: Is= 15?0? A(rms)
•Primary side: R_11= 10 R_12= 20? ,j?L_11 = j10?
•Secondary side:R_21= 100?, 1/j?C = variable reactance
•Turns ratio: 1:n = 1:5

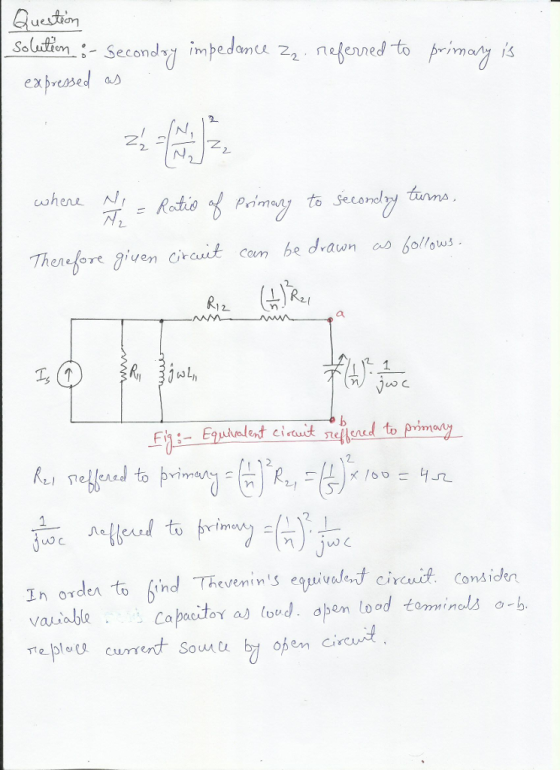

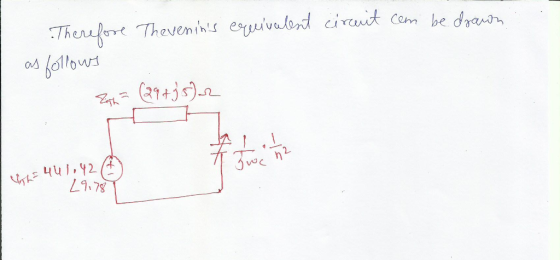

(a) Derive the Thevenin equivalent of the driving circuit on the primary side of the ideal transformer. Draw
the simplified circuit after transferring the impedance of the secondary side to the primary side.
Homework Answers
Add Answer to:
The AC circuit depicted in Figure E2.6 includes an ideal
transformer and operates at ?= 20...
Problem E1.2.6 (20 points) Consider the magntically coupled circuit that involves an ideal transformer as depicted...
Problem E1.2.6 (20 points) Consider the magntically coupled circuit that involves an ideal transformer as depicted in Figure E1.2.6. The sinusoidal voltage source frequency is 20 x 103 (rad/sec). The load connected to the secondary winding (RHS of the ideal transformer) consists of a variable resistor R in series with a variable capacitor C. (a) Find the values of R and C for maximum power transfer from the voltage source in the primary winding. (b) What is the maximum average...
An ideal step-down transformer has a primary coil of 400 turns and a secondary coil of...
An ideal step-down transformer has a primary coil of 400 turns and a secondary coil of 25 turns. Its primary coil is plugged into an outlet with 110 V(AC), from which it draws an rms current of 0.83 A. 1.)What is the voltage in the secondary coil? 2.)Calculate the rms current in the secondary coil. 3.)Assuming that the transformer secondary is driving a resistive load, calculate the average power dissipated in the resistor.
An ideal transformer has a primary winding with 100 turns and a secondary winding with 20...
An ideal transformer has a primary winding with 100 turns and a secondary winding with 20 turns. If the primary winding has a voltage drop of 10 V AC, what is the EMF in the secondary coil? A. 100 V AC B. 10 V AC C. 2 V AC D. 20 V AC
The primary of an ideal iron-core transformer with a 10:1 (primary:secondary) turns ratio is connected to...
The primary of an ideal iron-core transformer with a 10:1 (primary:secondary) turns ratio is connected to an ideal sinusoidal voltage source whose rms phasor is a real number Vi. The secondary is connected to a load impedance of 3 + 2j Ohms. a) Find the rms phasor for the current flowing through the primary.. b) Find the maximum instantaneous current flowing through the primary.
An RLC circuit is driven by an AC power source at a frequency of 131.1 Hz....
An RLC circuit is driven by an AC power source at a frequency of 131.1 Hz. The resistance, the inductive reactance and the capacitive reactance are all shown in the Z-plane. (See figure.) XL 9 8 7 6 5 4 3 2 1 X (Ohm) XC 3 4 -5 6 -7 8 -9 0 1 2 3 4 5 6 7 8 9 R (Ohm) What is the net impedance of the circuit? Submit Answer Tries 0/12 What is the...
An AC adapter for a telephone answering machine uses a transformer to reduce the line voltage...
An AC adapter for a telephone answering machine uses a transformer to reduce the line voltage of 120 V to a voltage of 6.00 V. The RMS current delivered to the answering machine is 600 mA. If the primary (input) coil of the transformer has 360 turns, then how many turns are there on the secondary (output) coil? Tries 0/20 What is the power drawn from the electric outlet, if the transformer is assumed to be ideal? Tries 0/20 What...
An AC adapter for a telephone answering machine uses a transformer to reduce the line voltage...
An AC adapter for a telephone answering machine uses a transformer to reduce the line voltage of 120 V to a voltage of 5.00 V. The RMS current delivered to the answering machine is 380 mA. If the primary (input) coil of the transformer has 960 turns, then how many turns are there on the secondary (output) coil? Submit Answer Tries 0/20 What is the power drawn from the electric outlet, if the transformer is assumed to be ideal? Submit...
Electrical Engineering Ideal Transformer Question 4. You are given the circuit shown below. Please note the...
Electrical Engineering Ideal Transformer Question
4. You are given the circuit shown below. Please note the polarities of the currents and voltages at the ideal transformer. The source voltage is 10V RMS. 21 j11 1 1:4 j10N 400 W ell ell + + 1020 -j112 1 a) Write your voltage and current relationships for the transformer. b) Create a Thevenin equivalent circuit for everything to the left of the dashed line shown in the schematic. Provide the open circuit voltage...
PLEASE SO PART C, THANK YOU WILL RATE. A single-phase transformer with a 5:1 turns ratio...
PLEASE SO PART C, THANK YOU WILL RATE.
A single-phase transformer with a 5:1 turns ratio is connected to a 600 V voltage source on the primary side, and a 5 Ω resistor on the secondary. A current of 22 amps of current is measured to flow through the 5 Ω resistor on the secondary side. The real power flowing into the transformer primary is measured at 2500 W. You can neglect Lm and Rc (the magnetizing inductance and core...
An AC circuit consists of a non-ideal source, an ideal transformer, and a load impedance. Assume...
An AC circuit consists of a non-ideal source, an ideal transformer, and a load impedance. Assume VTH = 66/42° VRMS, ZTH = 86/-37° and n = 2. Zih 1:n + th ele lll ZLOAD non-ideal AC source What is the maximum average power in W) that could be delivered to the load?
Problem E1.2.6 (20 points) Consider the magntically coupled circuit that involves an ideal transformer as depicted in Figure E1.2.6. The sinusoidal voltage source frequency is 20 x 103 (rad/sec). The load connected to the secondary winding (RHS of the ideal transformer) consists of a variable resistor R in series with a variable capacitor C. (a) Find the values of R and C for maximum power transfer from the voltage source in the primary winding. (b) What is the maximum average...
An RLC circuit is driven by an AC power source at a frequency of 131.1 Hz. The resistance, the inductive reactance and the capacitive reactance are all shown in the Z-plane. (See figure.) XL 9 8 7 6 5 4 3 2 1 X (Ohm) XC 3 4 -5 6 -7 8 -9 0 1 2 3 4 5 6 7 8 9 R (Ohm) What is the net impedance of the circuit? Submit Answer Tries 0/12 What is the...
An AC adapter for a telephone answering machine uses a transformer to reduce the line voltage of 120 V to a voltage of 5.00 V. The RMS current delivered to the answering machine is 380 mA. If the primary (input) coil of the transformer has 960 turns, then how many turns are there on the secondary (output) coil? Submit Answer Tries 0/20 What is the power drawn from the electric outlet, if the transformer is assumed to be ideal? Submit...
Electrical Engineering Ideal Transformer Question
4. You are given the circuit shown below. Please note the polarities of the currents and voltages at the ideal transformer. The source voltage is 10V RMS. 21 j11 1 1:4 j10N 400 W ell ell + + 1020 -j112 1 a) Write your voltage and current relationships for the transformer. b) Create a Thevenin equivalent circuit for everything to the left of the dashed line shown in the schematic. Provide the open circuit voltage...
PLEASE SO PART C, THANK YOU WILL RATE.
A single-phase transformer with a 5:1 turns ratio is connected to a 600 V voltage source on the primary side, and a 5 Ω resistor on the secondary. A current of 22 amps of current is measured to flow through the 5 Ω resistor on the secondary side. The real power flowing into the transformer primary is measured at 2500 W. You can neglect Lm and Rc (the magnetizing inductance and core...
An AC circuit consists of a non-ideal source, an ideal transformer, and a load impedance. Assume VTH = 66/42° VRMS, ZTH = 86/-37° and n = 2. Zih 1:n + th ele lll ZLOAD non-ideal AC source What is the maximum average power in W) that could be delivered to the load?
