Calculate the Thévenin voltage, Vth, and the Thévenin resistance, Rth, at terminal pair a-b. 2? 8?...

Question

Question

Calculate the Thévenin voltage, V_th, and the Thévenin resistance, R_th, at terminal pair a-b.

2? 8? 75 V 10 A 10?

engineering Electrical-Engineering

Answer 1

Answer #1

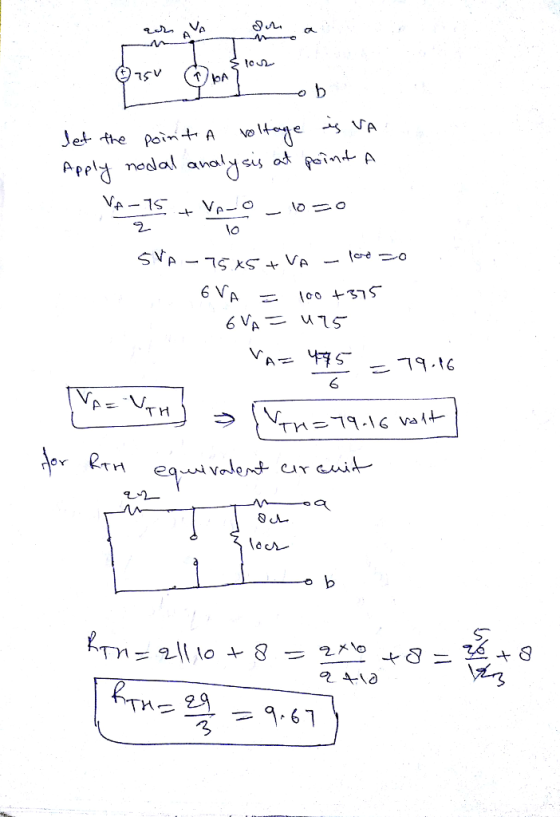

lo 6 V. T H St 24-1.3 2

Answer 2

Similar Homework Help Questions

Determine thevenin resistance Rth 3. Determine Thévenin equivalent resistance Rh between terminal a and b in...

Determine thevenin resistance Rth 3. Determine Thévenin equivalent resistance Rh between terminal a and b in the circuit below. (Hint: This is the same circuit of HW #2, P2.30 that we have determined open circuit Vab. In this problem we are looking for Rth only. If needed, you may use any portion of HwH2 results without solving it again.) (10 pt.) 8Ω 3 0 4 92 Ct 2 A 15 V 6 2 Vw
Find the Thévenin equivalent external to RL in the circuit. Use the equivalent circuit to find Vth and Rth.

Find the Thévenin equivalent external to RL in the circuit. Use the equivalent circuit to find Vth and Rth. Vth is equal to V and Rth is equal to ohms.
use thevenin for terminals to find Rth and Vth for each terminal. a) a-b b) c-d...

use thevenin for terminals to find Rth and Vth for each terminal. a) a-b b) c-d i ucour se-Id=-3 / 7533-1 &contenti d--4957009-1 &step-null Given the circuit in Figure 2, obtain the Thevenin equivalent as viewed from terminals: a)a-b b) cd Thevenin resistance (a-b Thevenin voltage (a-b) Thevenin resistance (c-d) Thevenin voltage (c-d) ohms ,volts 8Ω 71.2 6 6Ω 28 V

Need to find Vth Rth and In, answers are on the right, thanks Topic 4: Thévenin...

Need to find Vth Rth and In, answers are on the right, thanks Topic 4: Thévenin and Norton Exercise 4.2: Thévenin and Norton Equivalent Circuits 1 Find the Thévenin and Norton equivalents (between terminals A and B) of the circuit shown below. Try command executed. The exact answers are displayed next to your entries. Your score: 23 (Fail). Your score is not recorded for assessment purposes. New Problem Help Try View Submission Topic Menu Equation Solver "O: 8 R3 R1...
20) Given the circuit shown at right, Calculate VTH and RTH. B) C) D) VTH-10 V,...

20) Given the circuit shown at right, Calculate VTH and RTH. B) C) D) VTH-10 V, RTH-50 ? Vrh,-6.7 V,Rm,-150 ? VTH,-5.0 V, RTH-50 ? 50? 100 ? 20 VS 100 ? -T 50 ? t ht the Thevenin voltage is
Vth = 1.54 Volt Rth = 118.5 ohm Inorton = 13 mAmp a. Draw the Thévenin...

Vth = 1.54 Volt Rth = 118.5 ohm Inorton = 13 mAmp a. Draw the Thévenin and Norton equivalent circuits of the schematic shown above b. Connect a 100 Ohm “load” resistor to the terminals of the original circuit (this means in parallel with R c. Calculate the voltage across the load resistor, and calculate its power. Repeat the procedure for a 220 Ohm load. Resistance (Ohms) Voltage (Volts) Power (milliwatts) 100 220 R1 R5 Vout+ 15 100 V1 +...

15 k2 10 mA $ 10k:2 30 V 1. Obtain the Thévenin equivalent circuit: VTH and...

15 k2 10 mA $ 10k:2 30 V 1. Obtain the Thévenin equivalent circuit: VTH and RTH as seen by terminals a-b. 2. Determine the load resistance that can be placed at terminals a-b for maximum power. 3. Determine the maximum power, Pmax
3. 25 pts. Find the Thévenin equivalent of the network seen by the 3-22 load resistor...

3. 25 pts. Find the Thévenin equivalent of the network seen by the 3-22 load resistor in the circuit below. (a) VTH, Thévenin voltage. (b) RTH, Thévenin resistance. (e) What is the required load resistance to maximize power at the load. (d) Compute the voltage V, across the given the 3 2 load resistance using Thévenin Equivalent circuit. w
(2) a) Determine the Thévenin equivalent circuit (Rth and Vtw) of the circuit shown below as...

(2) a) Determine the Thévenin equivalent circuit (Rth and Vtw) of the circuit shown below as seen by terminals a-b. 1 k w oa 35k 320k 25 mA 45 kn 50 V .b RTH (5 pts) VTH (15 pts) b) Determine the max power Pmax to a load R that will be connected to terminals a-b. (10 pts)

Find the Thévenin equivalent with respect to the terminals a,b for the circuit in (Figure 1)...

Find the Thévenin equivalent with respect to the terminals a,b for the circuit in (Figure 1) if v = 360 V, i = 4 A. Figure 1 of 1The figure shows a rectangular circuit. A vertical cross wire connects the top and bottom wires. An 8-ohm resistor is located on this cross wire. A 40-ohm and a 10-ohm resistors are located on the top wire to the left and right from the cross wire, respectively. Independent voltage source v, with...
