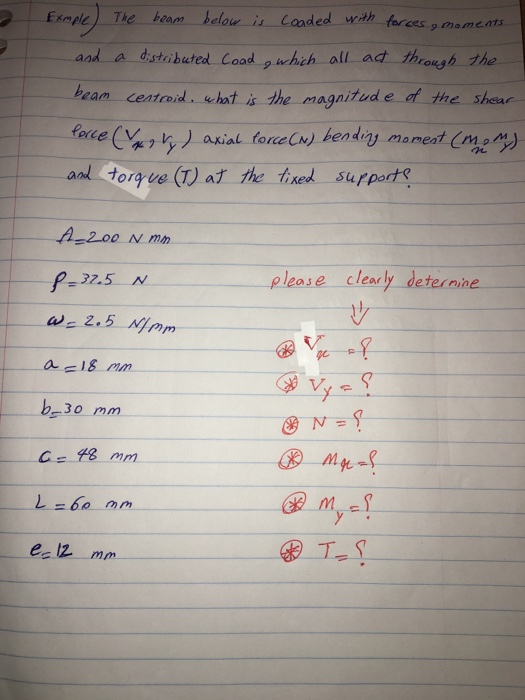

Exmple The beam below is loaded with forces a moments and a distributed Coad which all...
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment

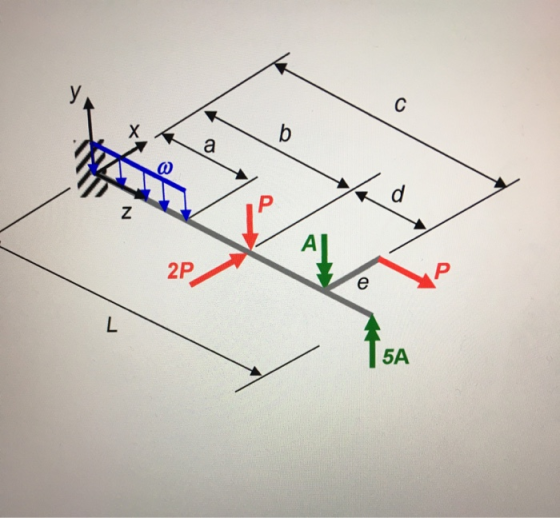

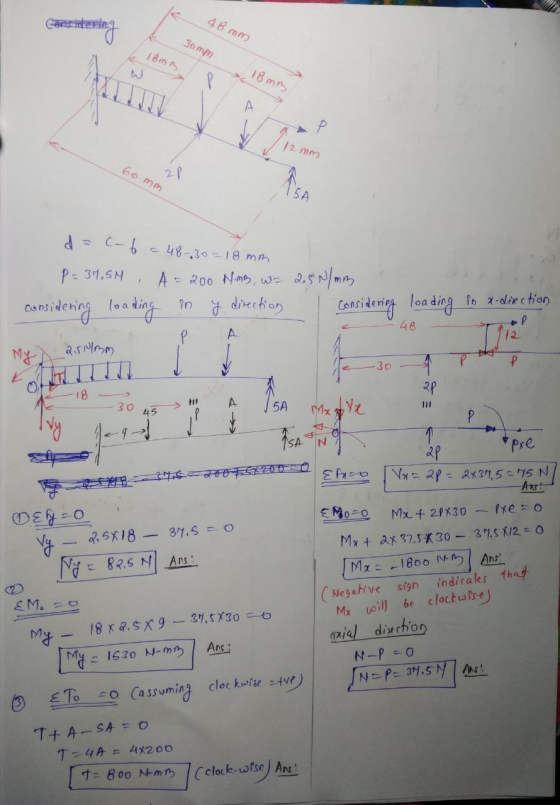

diagrams. The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is fixed at
C. Determine the reactions at the support located at C. Then write
expressions for shear and bending moment as a function of their
positions...
A simply supported prismatic beam is loaded with a load applied at an angle at point F as shown below The beams connecting points CE and EF can be considered rigid (l-very large). The magnitude of the applied load P is 75kN. NOTE: You must use your student number to calculate the magnitude of the angle, α, and the length EF using the expressions below. The angle, α, is given in degrees and the unit for length EF is m...
The beam is loaded as shown in the diagram below. The beam is uniformly loaded at 3 kN/m for the length of 4 m from B. The beam also has two point loads, 4 KN at 2 m from A and 3 KN at 3 m from B. 2 KN 3 KN 3KN/m A 2 m 2 m 11 m 3 m Fig. Q2 Draw a shear force and bending moment diagram. Also determine the location of maximum bending moment...
find
2) Calculate the shear forces and bending moments at point of the beam shown below. Please show all your work 2/ KN A с 5 m 3 m
P=10 kN A cantilever beam is subiected to a concentrated force P, a uniformly distributed load w and a moment MI shown in the figure. Neglect the weight of the beam. (a) Draw the free body diagram for the beam showing all the 2 m reactions, replacing the support M.-2 kNm by the reaction forces/moments. (b) Use the equations of equilibrium to find the reaction forces/moments at R (c) Give the expression for the shear force, V- V(x), and the...
4. A T-shaped cross-sectional beam is loaded as shown in the figure. Determine the following a. Sketch the internal shear force and bending moment diagrams for the beam. b. Calculate the maximum magnitude of the bending stress. Indicate where this occurs on the cross-section and along the length of the beam. c. Calculate the transverse shearing stress at the centroid of the cross-section using the maximum magnitude of the transverse shear force. - 200 mm 8 KN 1.5 kN/m 20...
Considering a structure is fixed at joint D as shown in the figure,(a) Please determine all reaction forces at D;(b) The torque, shear force, and moment diagrams from D to A;(c) Determining the maximum of stresses (normal and shear) at the indicated points (1, 2, 3, 4) on the cross-section of a location along the beam.(For a circle: Izz=(π/4)(r4), J=(π/2)(r4), For a half-circle y-centroid = 4r/(3π)Bending shear stress: τxy=(VyQy)/(Izzwz)=(Vy(ycentroid A))/(Izzwz);Normal stress by bending: σxx =(Mzy)/Izz;Normal stress by axial load: P/A;Torsional...
Problem#1 (10 points): For each beam in the figure below, determine the following: a) Shear forces b) The shear force diagram. c) Bending moments. d) The bending moment diagram. e) The maximum value of the bending stress (same cross-section for all beams) (I=180*106 mm). f) The mode of loading created by the bending stress (tension or compression) 19 N le 12 N 16 AN 24 AN GAN 2 N 20 NEL 1 m ( 19 KN 2 AN NYE 4...
mechanics materials
To determine the reactive forces and moments acting on a beam; express the shear and bending moment as functions of their positions along the beam; and construct shear and bending moment diagrams. The cantilever beam shown is subjected to a moment at A and a distributed load that acts over segment BC, and is foxed at C. Determine the reactions at the support located at C. Then write expressions for shear and bending moment as a function of...
Problem 2: For the beam shown below: 16.0 kN/m 8.0 kN/m 16.8 mm 354 mm 9.4 mm 50 kN 205 mm 4.0 m Beam Cross Section 4.0 m 4.0 m (a) Draw and label the axial, shear, and bending moment diagrams for the beam. (b) Determine the location and magnitude of maximum forces in the beam (axial, shear, and moment). (c) At the location of the maximum forces, draw the distribution of normal and shear stresses over the depth of...
