Homework Answers

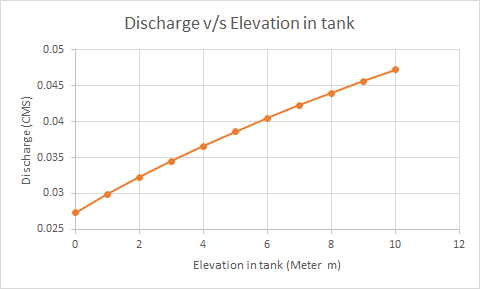

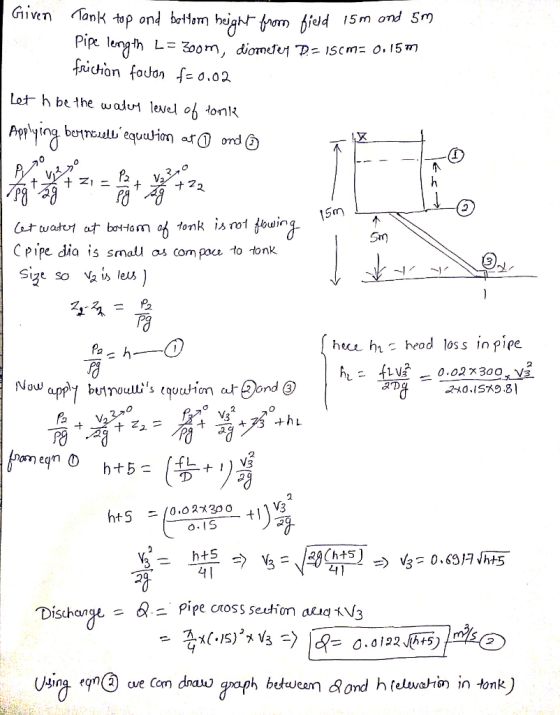

Question is solve below with graph attached.
Add Answer to:

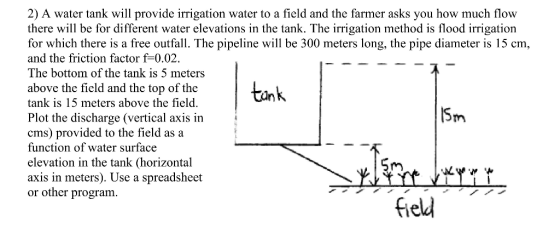

- - - 1- 2) A water tank will provide irrigation water to a field and...
