Homework Answers
Add Answer to:
Can

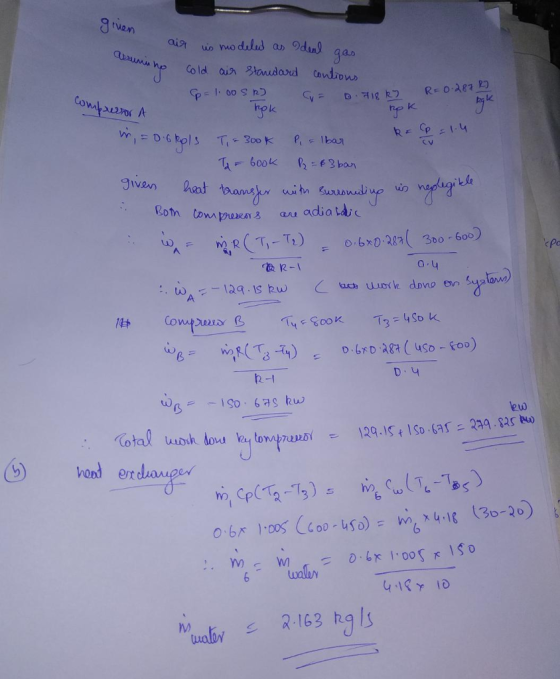

I know full step

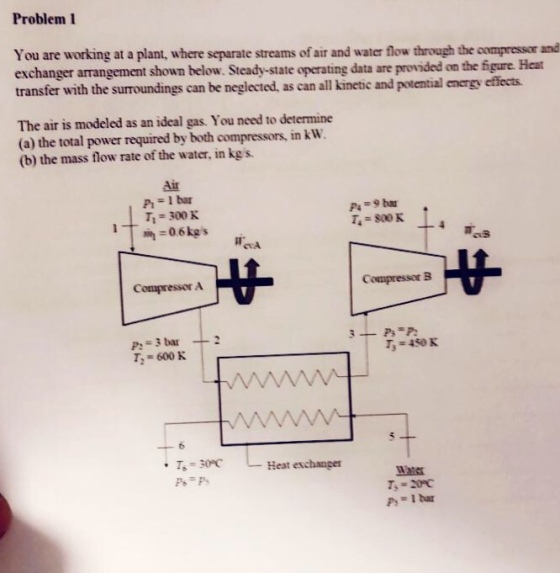

Problem 1 You are working at a plant, where separate streams...
Separate streams of air and water flow through the compressor and heat exchanger arrangement shown below....
Separate streams of air and water flow through the compressor
and heat exchanger arrangement shown below. Steady state operating
data are provided on the figure. Heat transfer with the
surroundings can be neglected as can all kinetic and potential
energy effects. The air is modeled as an ideal gas. Determine: (a)
the total power required by both compressors, in kW. (b) the mass
flow rate of the water, in kg/s.
Separate streams of air and water flow through the compressor...
Separate streams of steam and air flow through the turbine and heat exchanger arrangement shown in...
Separate streams of steam and air flow through the turbine and heat exchanger arrangement shown in Fig. P4.108. Steady-state operating data are provided on the figure. Heat transfer with the surroundings can be neglected, as can all kinetic and potential energy effects. Determine (a) T3, in K, and (b) the power output of the second turbine, in kW. Figure P4.108 (page 227) Fundamentals of Engineering Thermodynamics 7th edition: Moran Shapiro
Problem 2 20) Air enters a compressor operating at steady state at 280 K and exits...
Problem 2 20) Air enters a compressor operating at steady state at 280 K and exits at a higher pressure and a higher temperature of 1020 K. Specitic heat at constant pressure for air is a constant and equal to 1.003 kJkg K. The mass flow rate is 01 kg's. If the compressor consumes electric power 77 kW Neglect kinetic and potential energy effects and assume air is ideal gas. Find (1) The rate of heat transfer between the compressor...
Air enters a compressor operating at steady state at a pressure of 100 kPa, a temperature...
Air enters a compressor operating at steady state at a pressure of 100 kPa, a temperature of 290 K, and with a mass flow rate of 0.72 kg/s. At the exit, the pressure is 700 kPa and the temperature is 450 K. Heat transfer from the compressor to its surroundings occurs at a rate of 3 kW. Kinetic and potential energy changes can be ignored. Determine the power input to the compressor, in kW. Assume that the air is an...
Air, modeled as an ideal gas, is compressed at steady state from 1 bar, 300 K,...
Air, modeled as an ideal gas, is compressed at steady state from 1 bar, 300 K, to 5 bar, 500 K, with 190 kW of power input. Heat transfer occurs at a rate of 25.33 kW from the air to cooling water circulating in a water jacket enclosing the compressor. Neglecting kinetic and potential energy effects, determine the mass flow rate of the air, in kg/s.
2. A gas turbine power plant operating at a steady state consists of a compressor, a...
2. A gas turbine power plant operating at a steady state consists of a compressor, a heat exchanger, and a turbine. Air enters the compressor with a mass flow rate of 3.8 kg/s at 0.95 bar, 27 °C and exists the turbine at 0.95 bar, 452 °C. Heat transfer to the fluid at the heat exchanger occurs at an average of 537 °C. Other parameters are To = 300 K, po = 0.95 bar, and Wnet = 0.8 MW. The...
An air compressor is operating at a steady state with a mass flow rate of 1.3...
An air compressor is operating at a steady state with a mass flow rate of 1.3 kg/s. The inlet pressure and temperature are P1 171 kPa and T1 319 K, respectively. The exit pressure and temperature are P2 609 kPa and T2 428 K. respectively. Heat lost from the compressor to the surroundings per unit mass flow is 16 kJ/kg. Air can be assumed as an ideal gas. Kinetic and potential energy changes can be neglected. what is the required...
5. (30 pts) In a steady-state flow process carried out at atmosphere pressure, 2 mol/s of...
5. (30 pts) In a steady-state flow process carried out at atmosphere pressure, 2 mol/s of air at 600K is continuously mixed with 3 mol/s of air at 450 K. The product stream is at 400 K and at 1 atm. Assume the ideal-gas state for air with Cp=7/2 R, and that kinetic and potential-energy changes of the streams are negligible, and the surroundings are at 300 K. a) What is the rate of heat transfer? b) What is the...
Problem 4.069 The figure belows shows three components of an air-conditioning system, where T3 115°F and...
Problem 4.069 The figure belows shows three components of an air-conditioning system, where T3 115°F and 4.5 Ib/s. Refrigerant 134a flows through a throttling valve and a heat exchanger while air flows through a fan and the same heat exchanger. Data for steady-state operation are given on the figure. There is no significant heat transfer between any of the components and the surroundings. Kinetic and potential energy effects are negligible. Air T 535 R cp = 0.240 Btu/lb-R Saturated liquid...
Urgent An industrial process discharges 5,700 m3/min of gaseous products at 200°C, 100 kPa. The figure...
Urgent
An industrial process discharges 5,700 m3/min of gaseous products at 200°C, 100 kPa. The figure below shows a proposed system for utilizing the combustion products and its steady state conditions. Heat transfer from the outer surface of the steam generator (heat exchanger) and turbine can be ignored, as can the changes in kinetic and potential energies of the streams. There is no pressure drop through the heat exchanger. The combustion product can be modeled as air as an ideal...
Separate streams of air and water flow through the compressor
and heat exchanger arrangement shown below. Steady state operating
data are provided on the figure. Heat transfer with the
surroundings can be neglected as can all kinetic and potential
energy effects. The air is modeled as an ideal gas. Determine: (a)
the total power required by both compressors, in kW. (b) the mass
flow rate of the water, in kg/s.
Separate streams of air and water flow through the compressor...
Problem 2 20) Air enters a compressor operating at steady state at 280 K and exits at a higher pressure and a higher temperature of 1020 K. Specitic heat at constant pressure for air is a constant and equal to 1.003 kJkg K. The mass flow rate is 01 kg's. If the compressor consumes electric power 77 kW Neglect kinetic and potential energy effects and assume air is ideal gas. Find (1) The rate of heat transfer between the compressor...
Air enters a compressor operating at steady state at a pressure of 100 kPa, a temperature of 290 K, and with a mass flow rate of 0.72 kg/s. At the exit, the pressure is 700 kPa and the temperature is 450 K. Heat transfer from the compressor to its surroundings occurs at a rate of 3 kW. Kinetic and potential energy changes can be ignored. Determine the power input to the compressor, in kW. Assume that the air is an...
2. A gas turbine power plant operating at a steady state consists of a compressor, a heat exchanger, and a turbine. Air enters the compressor with a mass flow rate of 3.8 kg/s at 0.95 bar, 27 °C and exists the turbine at 0.95 bar, 452 °C. Heat transfer to the fluid at the heat exchanger occurs at an average of 537 °C. Other parameters are To = 300 K, po = 0.95 bar, and Wnet = 0.8 MW. The...
An air compressor is operating at a steady state with a mass flow rate of 1.3 kg/s. The inlet pressure and temperature are P1 171 kPa and T1 319 K, respectively. The exit pressure and temperature are P2 609 kPa and T2 428 K. respectively. Heat lost from the compressor to the surroundings per unit mass flow is 16 kJ/kg. Air can be assumed as an ideal gas. Kinetic and potential energy changes can be neglected. what is the required...
5. (30 pts) In a steady-state flow process carried out at atmosphere pressure, 2 mol/s of air at 600K is continuously mixed with 3 mol/s of air at 450 K. The product stream is at 400 K and at 1 atm. Assume the ideal-gas state for air with Cp=7/2 R, and that kinetic and potential-energy changes of the streams are negligible, and the surroundings are at 300 K. a) What is the rate of heat transfer? b) What is the...
Problem 4.069 The figure belows shows three components of an air-conditioning system, where T3 115°F and 4.5 Ib/s. Refrigerant 134a flows through a throttling valve and a heat exchanger while air flows through a fan and the same heat exchanger. Data for steady-state operation are given on the figure. There is no significant heat transfer between any of the components and the surroundings. Kinetic and potential energy effects are negligible. Air T 535 R cp = 0.240 Btu/lb-R Saturated liquid...
Urgent
An industrial process discharges 5,700 m3/min of gaseous products at 200°C, 100 kPa. The figure below shows a proposed system for utilizing the combustion products and its steady state conditions. Heat transfer from the outer surface of the steam generator (heat exchanger) and turbine can be ignored, as can the changes in kinetic and potential energies of the streams. There is no pressure drop through the heat exchanger. The combustion product can be modeled as air as an ideal...
