A rod A and a disks B are sliding on a horizontal plane as shown. They...

Question

Question

A rod A and a disks B are sliding on a horizontal plane as shown. They have a mass of my = 10 kg and mg = 3 kg respectively.

engineering Mechanical-Engineering

Answer 1

Answer #1

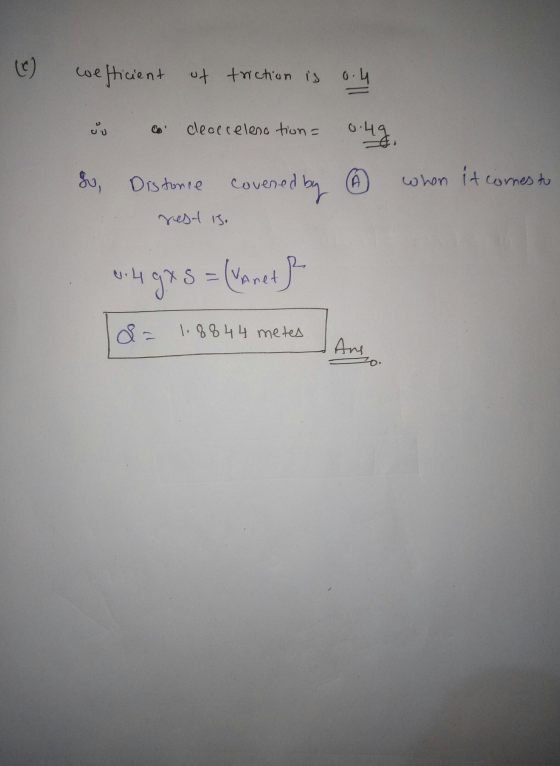

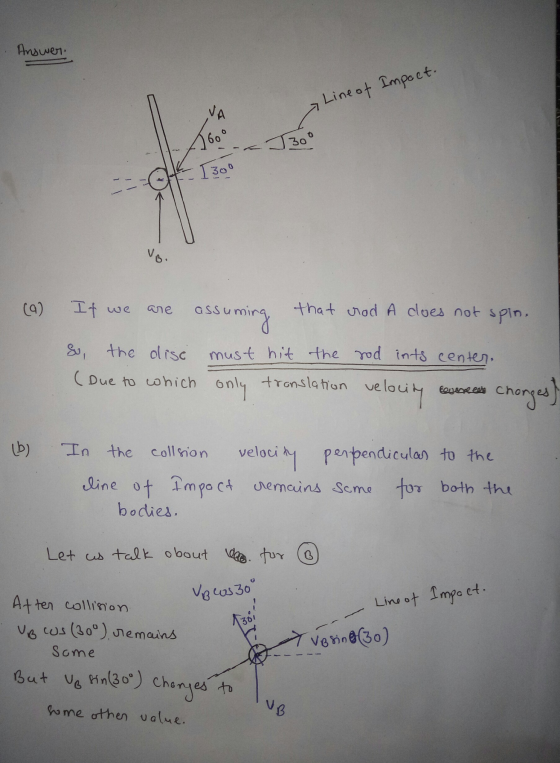

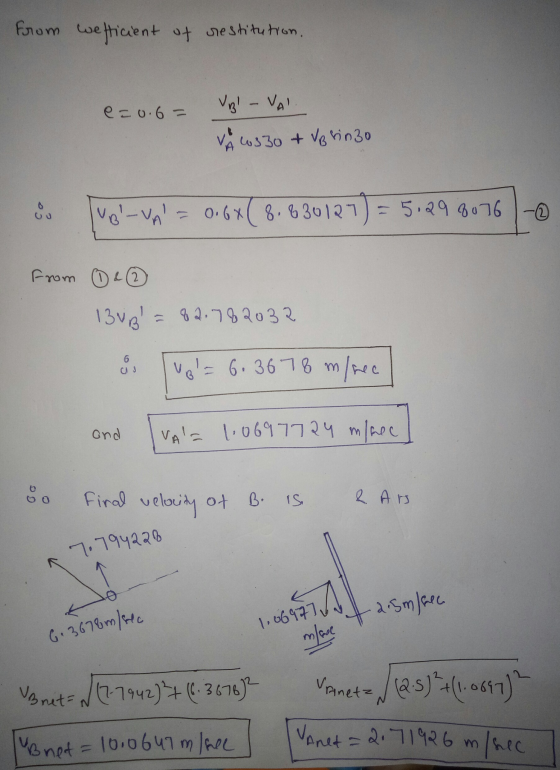

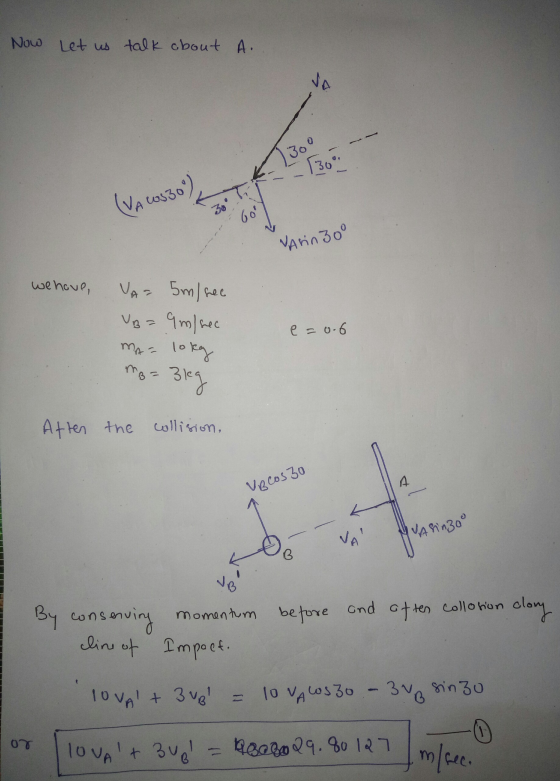

Here is the solution...

Answer 2
