The theoretical velocity of oil, sp.gr 0.75, flowing from an orifice in a reservoir under a...

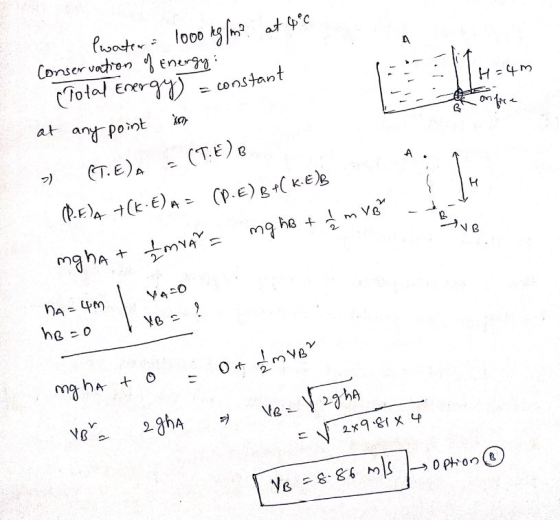

The theoretical velocity of oil, sp.gr 0.75, flowing from an orifice in a reservoir under a head of 4 m is, in meter per second, (a) 6.7; (b) 8.86; (c) 11.8 ; ( d) not determinable from data given; (e) none of these answers.
