b) A 1MW, 3300 V, 50 Hz, wye-connected, 3-ф, twenty four-pole, synchronous motor has a synchronous reactance of 3.24 2 per phase. Assume armature resistance is negligible. This machine is connected to an infinite bus-bars at 3300 V. Its field excitation is adjusted to provide P.F-1 at rated load Calculate: 0 the internal generated voltage EA and armature current la at rated conditions (S marks) ii) the maximum power and torqu e that the motor can deliver with its Ir remaining constant

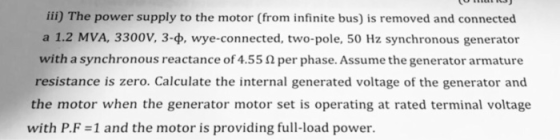

iii) The power supply to the motor (from infinite bus) is removed and connected a 1.2 MVA, 3300V, 34, wye-connected, two-pole, 50 Hz synchronous generator with a synchronous reactance of 4.55 Ω per phase. Assume the generator armature resistance is zero. Calculate the internal generated voltage of the generator and the motor when the generator motor set is operating at rated terminal voltage with P.F 1 and the motor is providing full-load power.

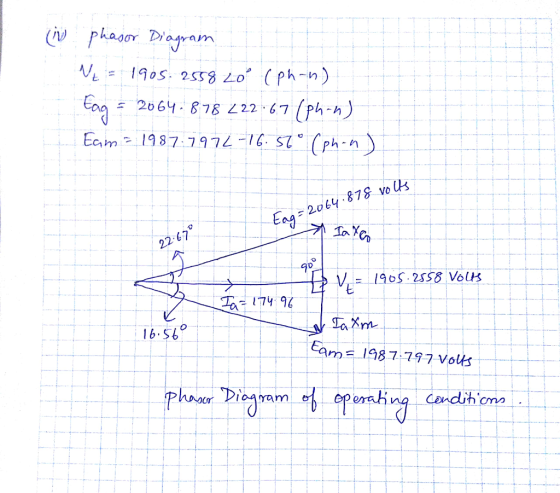

iii) The power supply to the motor (from infinite bus) is removed and connected a 1.2 MVA, 3300V, 3-<p, wye-connected, two-pole, 50 Hz synchronous generator with a synchronous reactance of 4.55 Ω per phase. Assume the generator armature resistance is zero. Calculate the internal generated voltage of the generator and the motor when the generator motor set is operating at rated terminal voltage with P.F-1 and the motor is providing full-load power. (8 marks) iv) draw the phasor diagram for the loading condition stated in part (i) and indicates the magnitudes of various vectors and their angles. (4 marks)
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

174914 -- λnu mohy is sta, con nuh olint curren 3242 ph ta 16(1-1)| : 1987-7979 3 ผู้) Sane Pes en owun anu would v

In case you have any doubts or you did not understand any step please feel free to ask your doubts in the comments section. I would be happy to clarify it

DO GIVE A THUMBS UP !!
