A car air conditioning system takes air at 35 °C from the surrounding atmosphere and cools...

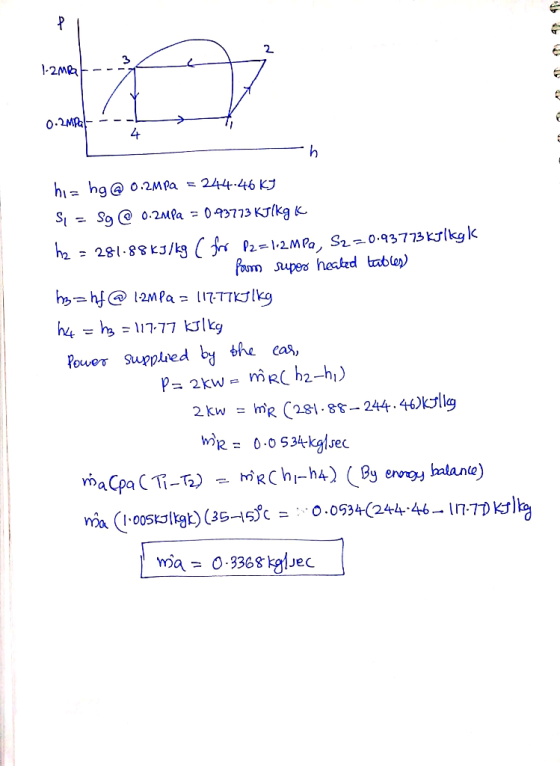

A car air conditioning system takes air at 35 °C from the surrounding atmosphere and cools it down to 15 °C in a heat exchanger from which heat is removed by an ideal refrigeration cycle using refrigerant 134a. The condenser pressure is 1.2 MPa and the evaporator pressure is 0.2 MPa. If the car engine can supply 2 kW of power to run the air conditioner what is the maximum mass flow rate of cold air that can be supplied
Homework Answers
