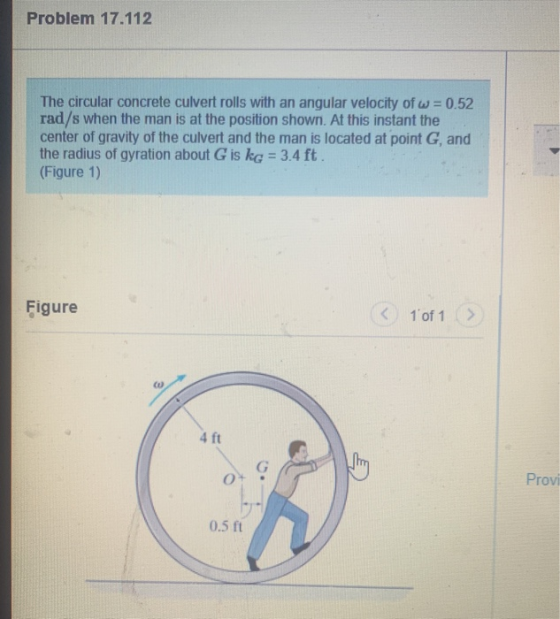

Problem 17.112 The circular concrete culvert rolls with an angular velocity of w = 0.52 rad/s...
The circular concrete culvert rolls with an angular velocity of w = 0.56 rad/s when the...

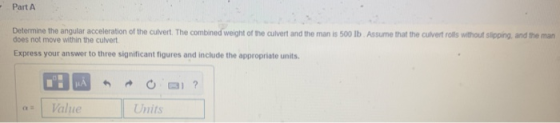

The circular concrete culvert rolls with an angular velocity of w = 0.56 rad/s when the man is at the position shown. At this instant the center of gravity of the culvert and the man is located at point G, and the radius of gyration about G is kg = 3.2 ft. (Figure 1) PI Figure ( 1 oft 4 ft 0.5 ft Part A Determine the angular acceleration of the culvert. The combined weight of the culvert and the...
The circular concrete culvert rolls with an angular velocity of w=0.56 rad/s when the man is...
The circular concrete culvert rolls with an angular velocity of w=0.56 rad/s when the man is at the position shown. At this instant the center of gravity of the culvert and the man is located at point Gand the radius of gyration about G is kg = 3.2 ft. (Figure 1) Figure 1 of 1 > 4 ft 0.5 ft Part A Determine the angular acceleration of the culvert. The combined weight of the culvert and the man is 500...
The wheel rolls without slipping with an angular velocity of 10 rad/s. Determine the magnitude of...
The wheel rolls without slipping with an
angular
velocity of 10 rad/s. Determine the magnitude of the
velocity of point B at the instant shown in Figure.
B A
The wheel rolls without slipping, where its angular velocity = 1k rad/s angular acceleration = 2k...
The wheel rolls without slipping, where its
angular velocity = 1k rad/s
angular acceleration = 2k rad/s^2
Find the acceleration vector of point A, a_A
VIE rolls without 2m slipping lll
disk rolls without slipping such that it has an angular acceleration of a 8 rad/s2 and...
disk rolls without slipping such that it has an angular acceleration of a 8 rad/s2 and angular velocity of w 32 rad/s at the instant shown. Assume point A lies on the periphery of the disk, 150 mm from C. (Figure 1) Figure 1 of 1 500 mm 150 mm 400 mm
The wheel rolls without slipping and has the angular velocity of 10 [rad/s] in the clockwise...
The wheel rolls without slipping and has the angular velocity of 10 [rad/s] in the clockwise direction. The acceleration of point Gis 1.5 [m/s2). 0=10 [rad/s] 0.5 m B ag =1.5 [m/s?] х A Copyright © 2016 Pearson Education, Inc. All Rights Reserved (1) Determine the velocity of point A. (2) Determine the velocity of point G. (3) Determine the velocity vector of point B. (4) Determine the angular acceleration of the wheel. (5) Determine the acceleration vector of point...
Problem 16.113 17 The reel of rope has the angular velocity w = 5 rad/s and...
The reel of rope has the angular velocity ω = 5 rad/s and angular acceleration α = 8 rad/s2 (Figure 1) Part ADetermine the magnitude of the velocity of point A at the instant shownPart B Determine the direction of the velocity of point A at the instant shown. Part C Determine the magnitude of the acceleration of point A at the instant shown. Part D Determine the direction of the acceleration of point A at the instant shown.
0.5 m The flywheel rotates with angular velocity w=2 rad/s and angular acceleration of a=6 rad/s2....
0.5 m The flywheel rotates with angular velocity w=2 rad/s and angular acceleration of a=6 rad/s2. Determine the angular acceleration of links AB and BC at this instant. w = 2 rad/s a = 6 rad/s? B 0.3 m 0.4 m co
1) The disk rolls without slipping with an angular velocity of o 2 rad's and an angular acceleration of -3 rad/s, Link AB is pin connected to the disk at point A which is on the periphery of t...
1) The disk rolls without slipping with an angular velocity of o 2 rad's and an angular acceleration of -3 rad/s, Link AB is pin connected to the disk at point A which is on the periphery of the disk. The length of the link is 0.5 m and the radius of the wheel is 0.25 m. Find the velocity of point B when A is 0.25m above the ground. 10 points a) VA-W /o o.25 ,775 Find the acceleration...
Problem 16.106 Part A Member AB has the angular motions shown. Suppose that w 3.3 rad/s...
Problem 16.106 Part A Member AB has the angular motions shown. Suppose that w 3.3 rad/s and a 6.5 rad/s. (Figure 1) Determine the velocity of the slider block C at this instant. Express your answer to three significant figures and include the appropriate units. HA Value Units (vc)= Request Answer Submit Part B Figure 1 of 1 Determine the acceleration of the slider block C at this instant. Express your answer to three significant figures and include the appropriate...
The circular concrete culvert rolls with an angular velocity of w = 0.56 rad/s when the man is at the position shown. At this instant the center of gravity of the culvert and the man is located at point G, and the radius of gyration about G is kg = 3.2 ft. (Figure 1) PI Figure ( 1 oft 4 ft 0.5 ft Part A Determine the angular acceleration of the culvert. The combined weight of the culvert and the...
The circular concrete culvert rolls with an angular velocity of w=0.56 rad/s when the man is at the position shown. At this instant the center of gravity of the culvert and the man is located at point Gand the radius of gyration about G is kg = 3.2 ft. (Figure 1) Figure 1 of 1 > 4 ft 0.5 ft Part A Determine the angular acceleration of the culvert. The combined weight of the culvert and the man is 500...
The wheel rolls without slipping with an
angular
velocity of 10 rad/s. Determine the magnitude of the
velocity of point B at the instant shown in Figure.
B A
The wheel rolls without slipping, where its
angular velocity = 1k rad/s
angular acceleration = 2k rad/s^2
Find the acceleration vector of point A, a_A
VIE rolls without 2m slipping lll
disk rolls without slipping such that it has an angular acceleration of a 8 rad/s2 and angular velocity of w 32 rad/s at the instant shown. Assume point A lies on the periphery of the disk, 150 mm from C. (Figure 1) Figure 1 of 1 500 mm 150 mm 400 mm
The wheel rolls without slipping and has the angular velocity of 10 [rad/s] in the clockwise direction. The acceleration of point Gis 1.5 [m/s2). 0=10 [rad/s] 0.5 m B ag =1.5 [m/s?] х A Copyright © 2016 Pearson Education, Inc. All Rights Reserved (1) Determine the velocity of point A. (2) Determine the velocity of point G. (3) Determine the velocity vector of point B. (4) Determine the angular acceleration of the wheel. (5) Determine the acceleration vector of point...
0.5 m The flywheel rotates with angular velocity w=2 rad/s and angular acceleration of a=6 rad/s2. Determine the angular acceleration of links AB and BC at this instant. w = 2 rad/s a = 6 rad/s? B 0.3 m 0.4 m co
1) The disk rolls without slipping with an angular velocity of o 2 rad's and an angular acceleration of -3 rad/s, Link AB is pin connected to the disk at point A which is on the periphery of the disk. The length of the link is 0.5 m and the radius of the wheel is 0.25 m. Find the velocity of point B when A is 0.25m above the ground. 10 points a) VA-W /o o.25 ,775 Find the acceleration...
Problem 16.106 Part A Member AB has the angular motions shown. Suppose that w 3.3 rad/s and a 6.5 rad/s. (Figure 1) Determine the velocity of the slider block C at this instant. Express your answer to three significant figures and include the appropriate units. HA Value Units (vc)= Request Answer Submit Part B Figure 1 of 1 Determine the acceleration of the slider block C at this instant. Express your answer to three significant figures and include the appropriate...
