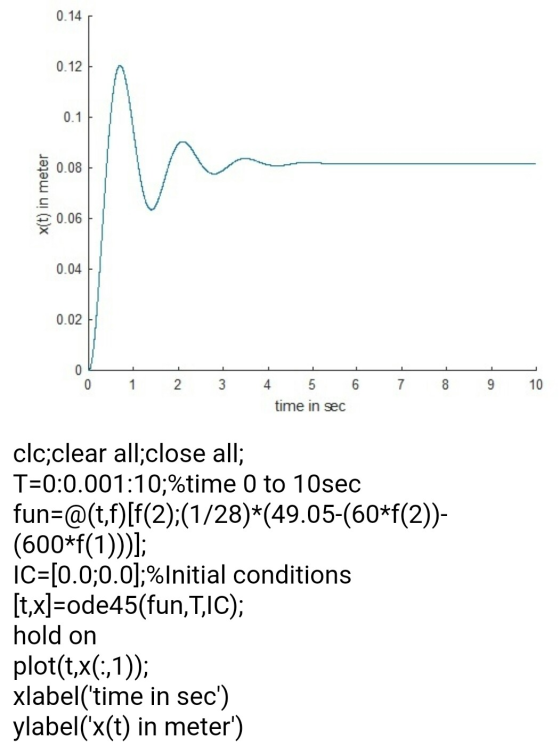

For the vibrating system shown in Fig. 3, a mass of 5 kg is placed on mass m at t = 0 and the system is at rest initially (at t = 0). Given that m = 20 kg, k = 600 N/m, and c = 60 Ns/m. Plot the response curve x(t) versus t using MATLAB.
Homework Answers
