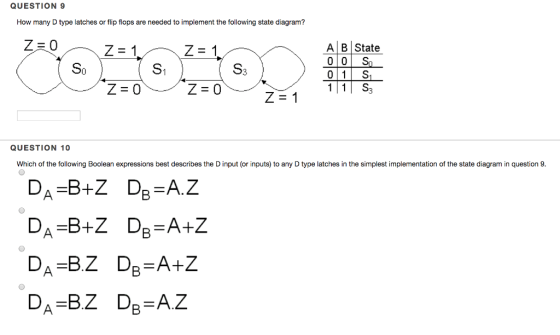

QUESTION 9 How many D type latches or flip flops are needed to implement the following...
please solve this ASAP
4. (2.5pt) Latches A. (PDF) Implement a D flip-flop using 2 Dlatches without any SR nor SR latches, by drawing the circuit diagram by hand. (1pt) I B. Consider the standard latch implementation using logical gates as we've covered in class, discuss whether this alternative implementation is superior to the D-SR master-slave implementation approach in the box below. (0.5pt) Har.. meetings M Mathway | Algebra... assign mooodle CSCI 150: Introducti... Application Detail- WhatsApp C. (PDF) Extend...
Design a 3- bit Multipurpose Register. The register utilizes 3 "D" type flip flops with outputs Q0, Q1, Q2. The Registers has a synchronous clock input(CLK) that clocks all 3 flip flops on its positive edge The Registers has an asynchronous clear input(CLR' ) that sets all flip flops to "0" when active low. The Register has 2 select inputs, S0 and S1 that selects the functions as folows: S1 = 0, 0, 1, 1 and S0 = 0,1,0,1 and...
3. Use the D-type flip-flops and logic gates to design a counter with the following repeated binary sequence: 0,2,1,3,4,7,5,6. Here, you need to use the best suited state encoding scheme to reduce the number of logic gates. Mention the encoding scheme you want to implement.
Draw a Moore-type state diagram and design a synchronous sequential circuit using D flip flops for a 1-input/1-output "sequence detector" for the sequence 110 (be sure to recognize overlapping sequences). Draw the final circuit.
Draw a Moore-type state diagram and design a synchronous sequential circuit using D flip flops for a 1-input/1-output "sequence detector" for the sequence 1001 (be sure to recognize overlapping sequences). Draw the final circuit.
Design a modulus-5 synchronous counter with D-type flip flops. Assume the next state for unused states are 000 rather than don't cares. Set an output Z to high at the terminal count. (a) Determine state transition table. (b) Determine input equations for the flip flops and output equations. (c) Sketch the circuit diagram.
A combination circuit is specified by the following Boolean functions listed below. h(a, b, c) = b,c' + a'c Implement the circuit with a 3x8 decoder. Provide truth table and drawing the logic/circuit diagram. Use the block diagram for the decoder provided in Figure A4 in supplements. Please label the inputs and outputs clearly. Note: use single 3x8 decoder Question 2 (15 points] A priority encoder is an encoder circuit that includes the Truth Table of a priority function. The...
WRITE THE CODE IN VERILOG: Instead of using Registers, USE D
FLIP FLOPS and a clock. Include the logic for a reset
A sequential circuit with three D flip-flops A, B, and C, a trigger x, and an output z1, and zo. On this state machine diagram, the label of the states are in the order of (ABC), the transition is the one bit x, and the output is under the forward slash. x/z1zo. The start state is 001 0/01...
A sequential circuit with two D Flip-Flops and one input X and one output Y is specifed by the following input equations: Y = A'+B DA = X + B DB = XA' (a) Draw the logic diagram of the circuit (b) Derive the state table. (c) Derive the state diagram. (b) Is this a Mealy or a Moore machine?
I need to work out a traffic light controllers sequential logic
using d flip flops. There are only 2 lights; Side street and Main
street. The input has the clock, long timer (20s) and short timer
(4s). The output is the codes required to change the light. The
side street HAS to be green when the main street is red to let cars
through. I have included the next state table and state diagram but
am unsure how group the...
