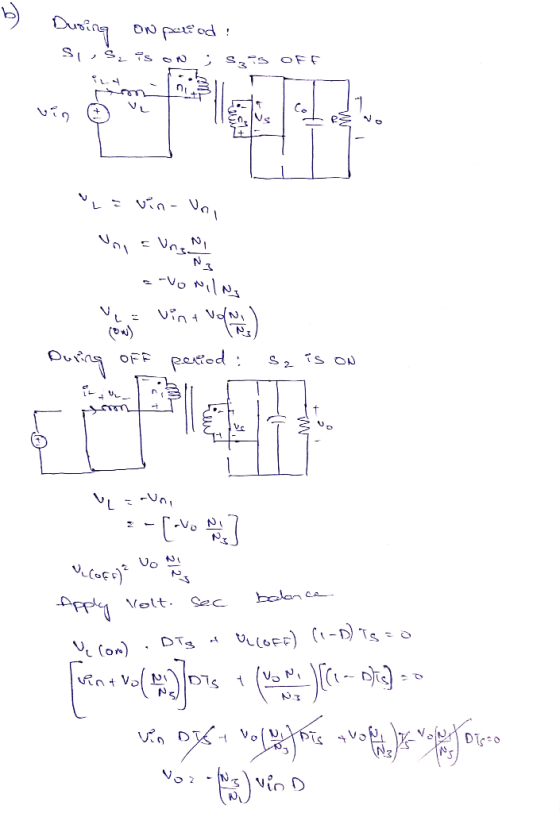

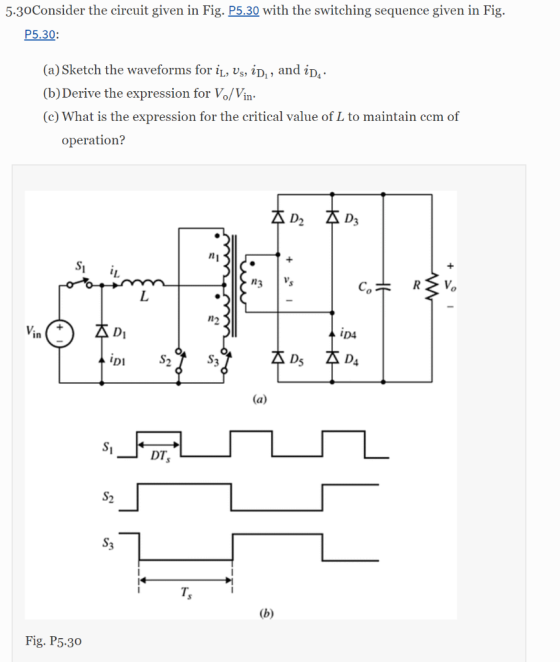

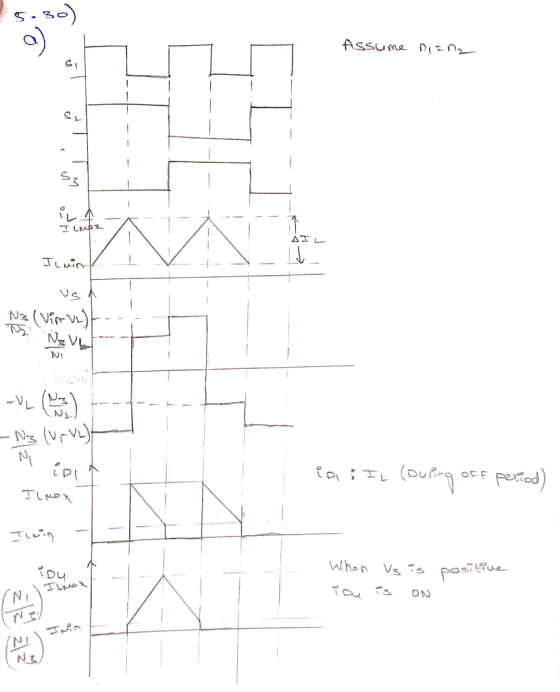

Power Electronics 5.30Consider the circuit given in Fig. P5.30 with the switching sequence given in Fig....
Fundamental of power electronics: In a certain application, an unregulated dc input voltage can vary between 18 and 36 V. It is desired to produce a regulated output of 28 V to supply a 2 A load. control circuit automatically adjust D to maintain the constant output voltage and current. All ideal components. Hence, a converter is needed that is capable of both increasing and decreasing the voltage. Since the input and output voltages are both positive, converters that invert the...
( Q2) Marks 14+14+6 In Fig 2 L1 mH and R-0.001 2 Vac 60 V. Square wave switching is used with switching frequency of 300 Hz and 50% duty cycle. Assume ideal switches and ideal diodes. Switches S1, S2. S3 and S4 are IGBTs/MOSFETs and Diode D and D2, D3 and D4 are antiparallel body diodes of these devices.. At steady state Sketch the gate signal for S1, VAN and o. For each region, indicate the conducting devices, by clearly...
fundamentals of power electronics erikson
e switches in the converter of Fig. 2.30 operate synchronously: each is in position l for U DT, and in position 2 for DT,< 7, Derive an expression for the voltage conversion ratio M(D) = wy, Sketch M(D) vs. D. Fig. 2.30 H-bridge converter of Problems 2.4 and 2.6. The switches in the convener of Fig. 2.31 operate synchronously: each is in position I for I < DT, and in position 2 for D7,く,くなDerive an...
conversion ratio analysis of the SEPIC of Fig. 4 a) Suppose that the converter operates at the boundary between CCM and DCM DCM, with the following element and parameter values D 0.225 f-100 kHz V120 V C2 200 μF Sketch the diode current ID(t) waveform and the inductor current waveforms and I(t) and 12(t) Label the magnitudes of the ripples and de components of these waveforms. b) Suppose next that the converter operates in the discontinuous conduction mode, with a...
Given: A MOSFET is used in a switching power-pole found in Fig. 2-4a of the text. The operating conditions are as follows: Vin 35V, 6 A, the switching frequency fs 300 kHz, and the duty ratio d 0.4 a) Consider the diode in the power pole. Assuming an offset voltage forward bias model of the free-wheeling diode in which VM 1.2 V, calculate the average forward power loss in the diode HINT: Consider Eq. 2A-1 b) In the diode reverse...
8.38. For Fig. 8.63, analyze the functionality of circuit and
derive expression for Vout.
2. For Fig.8.66(a cir- for the input cuit and verify its function mathematically.the current mior a func- 8.37.For AA.S Vin2 oltage 2 k wollol od M1 C MoHomout + Vin1 C OT + Wcg ab sub vo taum coo o ni TOTI9 9283-1210w ort nbFigure 8.62 or bns .0 wolod nism TIT smon&i 8.38. For Fig. 8.63, analyze the functionality of mcircuit and derive expression for...
1.29 The voltage source of the circuit shown in Fig. P1.29 is given by vs(t) = 25 cos(4 x 104t - 45°) (V). Obtain an expression for il(t), the current flowing through the inductor IR vs() R23 R1 = 20 12, R2 = 30 12, L = 0.4 mH
In the circuit of Figure E5.1 (same as Fig. 5.1(a)), let Vs = 150 Volts, f = 60 Hz, R = 5 Ohms, XL = oL = (21f)L = 5 Ohms. P.1 Calculate the rms output voltage (Vor), the rms output current (Ior) and the output active power (rms). Use only the first and third harmonics of the output voltage and current. P.2 Calculate the load current at the instant of commutation. P.3 Calculate the diode conduction time. P.4 Draw...
03- The voltage source of the circuit shown in Fig. below is given by vs(t) = 50cos(4x10^-45) (V). Obtain an expression for the current ic(t), flowing through the capacitor in time domain and frequency domain. K Let R=222, L=0.2mH, C= 1uF V5 (t) = bocos (4x1097-45°) (V) R=2KV 230-2mH C=1uF I Vs(t) 0.2m Ho ic(t)
