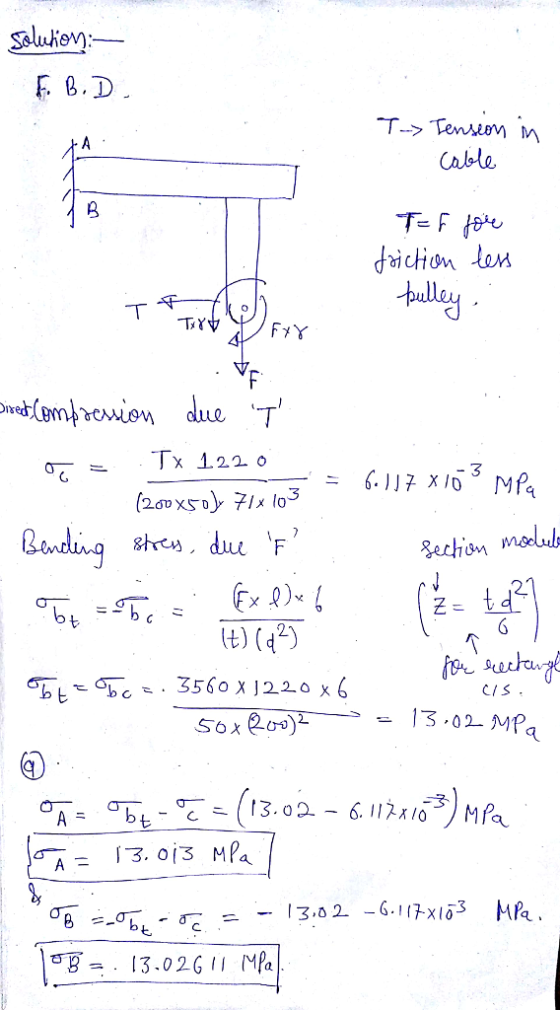

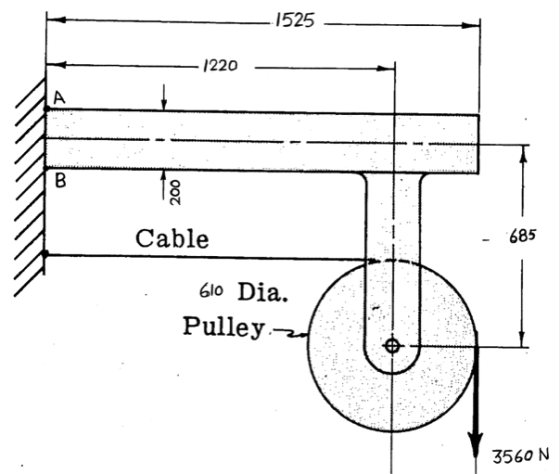

For the machine member shown in the Figure below, the thickness
of the cantilever member is 50 mm. The cantilever is made of
Aluminum with elastic constant E = 71 GPa and Poisson's ratio of
0.35. Ignoring the direct shear stress, a) Find the maximum

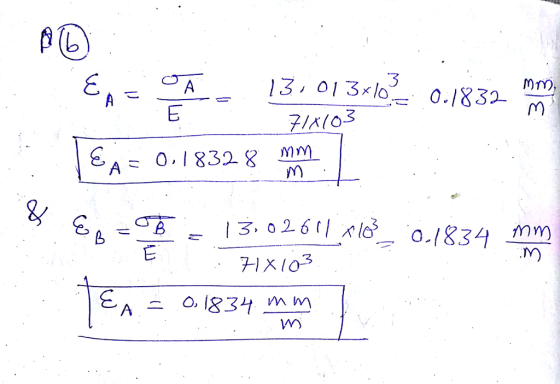

stresses at points A and B. b) Calculate the maximum strains at
points A and B. All dimensions are in millimeters
For the machine member shown in the Figure below, the thickness of the cantilever member is...
The cylindrical pressure vessel shown in the figure has an
inside diameter of 980 mm and a wall thickness of 12 mm. The
cylinder is made of an aluminum alloy that has an elastic modulus
of E = 72 GPa and a shear modulus of G = 27.5
GPa. Two strain gages are mounted on the exterior surface of the
cylinder at right angles to each other. The angle θ is 21°. If the
pressure in the vessel is 1.86...
3 (15 points) A bent circular cantilever beam of uniform diameter of 25 mm is shown in igure below. The beam is made from a material with elastic modulus is 70 GPa, the tensile strength is 250 MPa, and the ultimate strength is 300 MPa. 250 mm A. 150 mm z Zz. 50N V (z direction) 100 N (a) (5 points) What are the stresses in the beam at point A? (b) (10 points) Based on your calculations in (a),...
Question 2 The cylindrical pressure veese shown in the figure has an inside diameter of 910 mm and a al thickness of 10 mm. The cylinder is made of an aluminum alloy that has an elastic modulus of E = 70 GPa and a shear modulus of G = 27.0 GPa mounted on the exterior surface of the cylinder at right angles to each other. The angle θ is 28°. If the pressure in the vessel is 1.69 MPa. determine:...
A countershaft carrying two V-belt pulleys is shown in the
figure. Pulley A receives power from a motor through a belt with
the belt tensions shown. The power is transmitted through the shaft
and delivered to the belt on pulley B. Assume the belt tension on
the loose side at B is 15 percent of the tension on the tight side.
Yield of the Shaft ?? = 560 ???
a) Determine the tensions in the belt on pulley B, assuming...
The cantilever beam shown in the figure is subjected to a concentrated load at point B. The stresses acting at point H on the beam are to be determined. H Cross section For this analysis, use the following values: Beam and Load. a = 1.75 m b=0.30 m @= 60 degrees P = 25 KN Cross-sectional Dimensions d=250 mm bp = 125 mm ty=7 mm tw = 7 mm C= 30 mm (Note: The load P applied at Bacts in...
The cantilever beam shown in the figure is subjected to a concentrated load at point B. The stresses acting at point Hon the beam are to be determined Ques! Text- Quest Text Ent T Quest Text End Cross section Viewir Text-Ent For this analysis, use the following values Beam and Load. Questi Muitstep a. 1.75 m b-0.30 m 0.63 degrees P.49 KN Questid Text Entry Questio Text Entry Cross-sectional Dimensions d - 275 mm by - 150 mm - 13...
A tubular steel column C supports horizontal cantilever arm ABC, as shown in the figure. Column C has an outside diameter of 9.000 in. and a wall thickness of 0.460 in. The loads are PA = 370 lb and Pg = 550 lb. Dimensions of the structure are a = 6.1 ft. b = 8.2 ft, and c = 12.5 ft. Determine the maximum compression stress at the base of column co. b B Determine the maximum compression bending stress...
Question 1 The cylindrical pressure vessel shown has an inside diameter of 625 mm and a wall thickness of 5 mm. The cylinder is made of an aluminum alloy that has an elastic modulus of E = 70 GPa and a shear modulus of G-26.3 GPa. Two strain gages are mounted on the exterior surface of the cylinder at right angles to each other; however, the angle θ is not known. If the strains measured by the two gages are...
I need to know the steps and the answer of every single question
in the images. Thank you.
2. (35 points) Calculate the elastic modulus, percentage of load and stresses in the fibers and the matrix of a composite material. The composite is made of an epoxy matrix and 20% of fibers The fibers are either (a) high modulus carbon fiber, or (b) Kevlar 29 fibers. The fibers are continuous and uniaxially aligned. The dimensions of the composite are as...
A compound shaft drives several pulleys, as shown in Figure P6.18. Segments (1) and (2) of the compound shaft are FI = 28 GPa] tubes, which have an outside diameter of 75 mm and a wall thickness of 3 mm. Segments (3) and (4) are solid 40 mm diameter steel [G = 80 GPa] shafts. The shaft lengths are a = 2.0 m, b = 0.8 m, c = 1.4 m, and d = 1.4 m. The following torques are...
