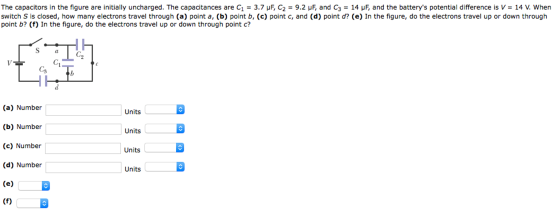

The capacitors in the figure are initially uncharged. The capacitances are C_1 = 3.7 mu F,...

Question

Question

The capacitors in the figure are initially uncharg

science physics

Answer 1

Answer #1

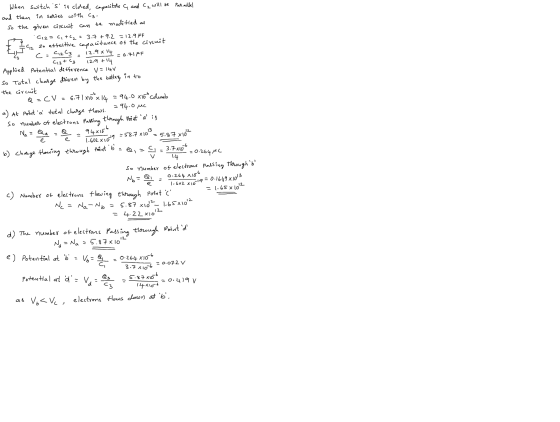

e mkied at So the ven ciycuit c 3 Applie& Potential differen e V=14V So Total ckarj* diven by the baltey in to So numbex os e

Answer 2

Similar Homework Help Questions

The figure displays a 10.8 V battery and three uncharged capacitors of capacitances C_1 = 4.25...

The figure displays a 10.8 V battery and three uncharged capacitors of capacitances C_1 = 4.25 mu F, C_2 = 6.42 mu F and C_3 = 3.44 mu F. The switch is thrown to the left side until capacitor 1 is fully charged. Then the switch is thrown to the right. What is the final charge (in C) on (a) capacitor l, (b) capacitor 2, and (c) capacitor 3? Number _____ Units _____ Number _____ Units _____ Number _____ Units...
Capacitors C_1 = 128 mu F, C_2 = 318 mu F and C_3 = 366 mu...

Capacitors C_1 = 128 mu F, C_2 = 318 mu F and C_3 = 366 mu F, are placed in series with a 4.02 V batter. Find: - the equivalent capacitance of the circuit: C_TOT = mu F -the total charge absorbed by the circuit: q_TOT = mu C Capacitors C_1 = 128 mu F, C_2 = 318 F and C_3 = 366 mu F, are placed in parallel with a 4.02 V battery. Find: =the equivalent capacitance of the...
In the figure below, a 18.0 V battery is connected across capacitors of capacitances with the...

In the figure below, a 18.0 V battery is connected across capacitors of capacitances with the following values. C_1 = C_6 = 2.90 mu F C_3 = C_5 = 3.70 mu F C_2 = C_4 = 1.85 mu F (a) What is the equivalent capacitance C_eq? mu F (b) What is the charge stored by C_eq? C (c) What is V_1 of capacitor 1? V (d) What is q_1 of capacitor 1? C (e What is V_2 of capacitor 2?...

In the figure provided, an emf of 9 V is connected to the three capacitors. If...

In the figure provided, an emf of 9 V is connected to the three capacitors. If C_1| = 4.60 mu F, C_2| = 11.3 mu F, and C_3| = 1.30 mu F, what is the charge and the potential difference across each capacitor? Charge on C_1:| Potential difference across C_1|: Charge on C_2:| Potential difference across C_2|: Charge on C_3:| Potential difference across C_3|:
In the figure find the equivalent capacitance of the combination. Assume that C_1 = 10.7 mu...

In the figure find the equivalent capacitance of the combination. Assume that C_1 = 10.7 mu F C_2 = 7.08 mu F, and C_3 = 5.47 mu F Number _____ Units mu F
Find charge on each capacitors: show every single step of your calculations. C_1 = 1.0 mu...

Find charge on each capacitors: show every single step of your calculations. C_1 = 1.0 mu F, C_2 = 2.0 mu F, C_3 = 3.0 mu F, C_4 = 4.0 mu F, V= 6.0 V Find the charge on each capacitor: Q_1, Q_2, Q_3, Q_4, ?

Need help with these three parts, please and thank you!!! Three capacitors with capacitances C_1 =...

Need help with these three parts, please and thank you!!! Three capacitors with capacitances C_1 = C, C_2 = 3C, and C_3 = 5C, are in a circuit as shown. The source has potential difference Delta V = 11 V. It is observed that one plate of the capacitor C_3 has a charge of q = 11 mC. What is the charge on the other plate of the capacitor C_3, in coulombs? Write an expression for the capacitance C (that...
In Fig. 25-31, a 20.0 V battery is connected across capacitors of capacitances C_1 = C_6...

In Fig. 25-31, a 20.0 V battery is connected across capacitors of capacitances C_1 = C_6 = 3.00 mu F and C_3 = C_5 = 2.00C_2 = 2.00 C_4 = 4.00 mu F. What are (a) the equivalent capacitance C_eq of the capacitors and (b) the charge stored by C_eq the What are (c) V_1 and (d) q_1 of capacitor 1, (e) V_2 and (f) q_2 of capacitor 2, and (g) V_3 and (h) q_3 of capacitor 3?
Find the charge stored on each capacitor in Figure 18.24 (C_1 = 10.0 mu F, C_2...

Find the charge stored on each capacitor in Figure 18.24 (C_1 = 10.0 mu F, C_2 = 6.00 mu F) when a 1.54 V battery is connected to the combination. What energy is stored in each capactitor? What total energy is stored in the capacitors in Figure 18.25 (C_1 = 0.600mu F, C_2 = 22 0 mu F) if 1.80 Times 10^-4 J is stored in the 2.50 mu F capacitor?

Four capacitors C_1 = C, C_2 = 2C, C_3 = 3C, and C_4 = 4C with...

Four capacitors C_1 = C, C_2 = 2C, C_3 = 3C, and C_4 = 4C with C = 1.0 mu F are connected as shown in the figure. What is the equivalent capacitance? A) 0.1 mu F B) 0.9 mu F C) 1.1 mu F D) 7.7 mu F E) 10 mu F
