SOLUTION

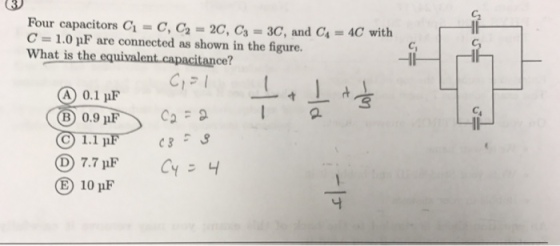

C2 , C3 and C4 are in parallel
equivalent capacitance of C2, C3 and C4, C' = 2C +
3C + 4C = 9C = 9*1 = 9
C' is in series with C1
Then equivalent capacitance of the configuration shown, Ceq =
C'*C1/(C'+C1) = 9*1/(9+1) = 0.9
option B is correct.
Capacitors C_1 = 128 mu F, C_2 = 318 mu F and C_3 = 366 mu...
Capacitors C_1 = 128 mu F, C_2 = 318 mu F and C_3 = 366 mu F, are placed in series with a 4.02 V batter. Find: - the equivalent capacitance of the circuit: C_TOT = mu F -the total charge absorbed by the circuit: q_TOT = mu C Capacitors C_1 = 128 mu F, C_2 = 318 F and C_3 = 366 mu F, are placed in parallel with a 4.02 V battery. Find: =the equivalent capacitance of the...
Find the equivalent capacitance for Fig.3. If C_1 = 5 uC, C_2 = 2 uC, C_3...
Find the equivalent capacitance for Fig.3. If C_1 = 5 uC, C_2 = 2 uC, C_3 = 10 uC, C_4 = 10 uC, C_5 = 20 uc and C_4 = 2 uC.
In the figure below, a 18.0 V battery is connected across capacitors of capacitances with the...
In the figure below, a 18.0 V battery is connected across capacitors of capacitances with the following values. C_1 = C_6 = 2.90 mu F C_3 = C_5 = 3.70 mu F C_2 = C_4 = 1.85 mu F (a) What is the equivalent capacitance C_eq? mu F (b) What is the charge stored by C_eq? C (c) What is V_1 of capacitor 1? V (d) What is q_1 of capacitor 1? C (e What is V_2 of capacitor 2?...
In Fig. 25-31, a 20.0 V battery is connected across capacitors of capacitances C_1 = C_6...
In Fig. 25-31, a 20.0 V battery is connected across capacitors of capacitances C_1 = C_6 = 3.00 mu F and C_3 = C_5 = 2.00C_2 = 2.00 C_4 = 4.00 mu F. What are (a) the equivalent capacitance C_eq of the capacitors and (b) the charge stored by C_eq the What are (c) V_1 and (d) q_1 of capacitor 1, (e) V_2 and (f) q_2 of capacitor 2, and (g) V_3 and (h) q_3 of capacitor 3?
Find charge on each capacitors: show every single step of your calculations. C_1 = 1.0 mu...
Find charge on each capacitors: show every single step of your calculations. C_1 = 1.0 mu F, C_2 = 2.0 mu F, C_3 = 3.0 mu F, C_4 = 4.0 mu F, V= 6.0 V Find the charge on each capacitor: Q_1, Q_2, Q_3, Q_4, ?
Two capacitors have values of C_1 = 4.0 mu F and C_2 = 8.0 mu F....
Two capacitors have values of C_1 = 4.0 mu F and C_2 = 8.0 mu F. (When entering units, use micro for the metric system prefix mu.) (a) Find the equivalent capacitance C_eq, s when these two are connected in series. (b) Find the equivalent capacitance C_eq, p when these two are connected in parallel.
Consider the system of capacitors depicted below, where C_1 = C_ (a) Calculate the equivalent capacitance...
Consider the system of capacitors depicted below, where C_1 = C_ (a) Calculate the equivalent capacitance of the system. (b) If C_2 stores a charge of Q_2 = 110 mu C, what is the potential difference between a and b? (c) How much energy is stored in C_3? (d) Suppose you now insert a slab of graphite (dielectric constant of K = 10) into C_3 while maintaining the potential difference V_ab. Calculate the potential difference across C_1 now.
Consider the following figure. C2 Find the equivalent capacitance between points a and b for the...
Consider the following figure. C2 Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in the figure if C_1 = 6.00 mu F, C_2 = 10.0 mu F, and C_3 = 3.00 mu F. 420 Your response differs significantly from the correct answer. Rework your solution from the beginning and check each step carefully. mu F If the potential between points a and b is 60.0 V, what charge is stored on...
Need help with these three parts, please and thank you!!! Three capacitors with capacitances C_1 =...
Need help with these three parts, please and thank you!!!
Three capacitors with capacitances C_1 = C, C_2 = 3C, and C_3 = 5C, are in a circuit as shown. The source has potential difference Delta V = 11 V. It is observed that one plate of the capacitor C_3 has a charge of q = 11 mC. What is the charge on the other plate of the capacitor C_3, in coulombs? Write an expression for the capacitance C (that...
Capacitor C_1 4 mu F is charged to Delta V = 100 volt. Another capacitor C_2...
Capacitor C_1 4 mu F is charged to Delta V = 100 volt. Another capacitor C_2 = 4 mu F has no charge without discharging C_1 is connected to C_2 A) What is the charge on C_1 before both capacitors are connected B) What is the energy U stored on C_1 before both capacitors are connected C) What is the total charge q^1 = q_1 + q_2 after two capacitors connected D) What is the new voltage Delta V' across...
Capacitors C_1 = 128 mu F, C_2 = 318 mu F and C_3 = 366 mu F, are placed in series with a 4.02 V batter. Find: - the equivalent capacitance of the circuit: C_TOT = mu F -the total charge absorbed by the circuit: q_TOT = mu C Capacitors C_1 = 128 mu F, C_2 = 318 F and C_3 = 366 mu F, are placed in parallel with a 4.02 V battery. Find: =the equivalent capacitance of the...
Find the equivalent capacitance for Fig.3. If C_1 = 5 uC, C_2 = 2 uC, C_3 = 10 uC, C_4 = 10 uC, C_5 = 20 uc and C_4 = 2 uC.
In the figure below, a 18.0 V battery is connected across capacitors of capacitances with the following values. C_1 = C_6 = 2.90 mu F C_3 = C_5 = 3.70 mu F C_2 = C_4 = 1.85 mu F (a) What is the equivalent capacitance C_eq? mu F (b) What is the charge stored by C_eq? C (c) What is V_1 of capacitor 1? V (d) What is q_1 of capacitor 1? C (e What is V_2 of capacitor 2?...
In Fig. 25-31, a 20.0 V battery is connected across capacitors of capacitances C_1 = C_6 = 3.00 mu F and C_3 = C_5 = 2.00C_2 = 2.00 C_4 = 4.00 mu F. What are (a) the equivalent capacitance C_eq of the capacitors and (b) the charge stored by C_eq the What are (c) V_1 and (d) q_1 of capacitor 1, (e) V_2 and (f) q_2 of capacitor 2, and (g) V_3 and (h) q_3 of capacitor 3?
Find charge on each capacitors: show every single step of your calculations. C_1 = 1.0 mu F, C_2 = 2.0 mu F, C_3 = 3.0 mu F, C_4 = 4.0 mu F, V= 6.0 V Find the charge on each capacitor: Q_1, Q_2, Q_3, Q_4, ?
Two capacitors have values of C_1 = 4.0 mu F and C_2 = 8.0 mu F. (When entering units, use micro for the metric system prefix mu.) (a) Find the equivalent capacitance C_eq, s when these two are connected in series. (b) Find the equivalent capacitance C_eq, p when these two are connected in parallel.
Consider the system of capacitors depicted below, where C_1 = C_ (a) Calculate the equivalent capacitance of the system. (b) If C_2 stores a charge of Q_2 = 110 mu C, what is the potential difference between a and b? (c) How much energy is stored in C_3? (d) Suppose you now insert a slab of graphite (dielectric constant of K = 10) into C_3 while maintaining the potential difference V_ab. Calculate the potential difference across C_1 now.
Consider the following figure. C2 Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in the figure if C_1 = 6.00 mu F, C_2 = 10.0 mu F, and C_3 = 3.00 mu F. 420 Your response differs significantly from the correct answer. Rework your solution from the beginning and check each step carefully. mu F If the potential between points a and b is 60.0 V, what charge is stored on...
Need help with these three parts, please and thank you!!!
Three capacitors with capacitances C_1 = C, C_2 = 3C, and C_3 = 5C, are in a circuit as shown. The source has potential difference Delta V = 11 V. It is observed that one plate of the capacitor C_3 has a charge of q = 11 mC. What is the charge on the other plate of the capacitor C_3, in coulombs? Write an expression for the capacitance C (that...
Capacitor C_1 4 mu F is charged to Delta V = 100 volt. Another capacitor C_2 = 4 mu F has no charge without discharging C_1 is connected to C_2 A) What is the charge on C_1 before both capacitors are connected B) What is the energy U stored on C_1 before both capacitors are connected C) What is the total charge q^1 = q_1 + q_2 after two capacitors connected D) What is the new voltage Delta V' across...
