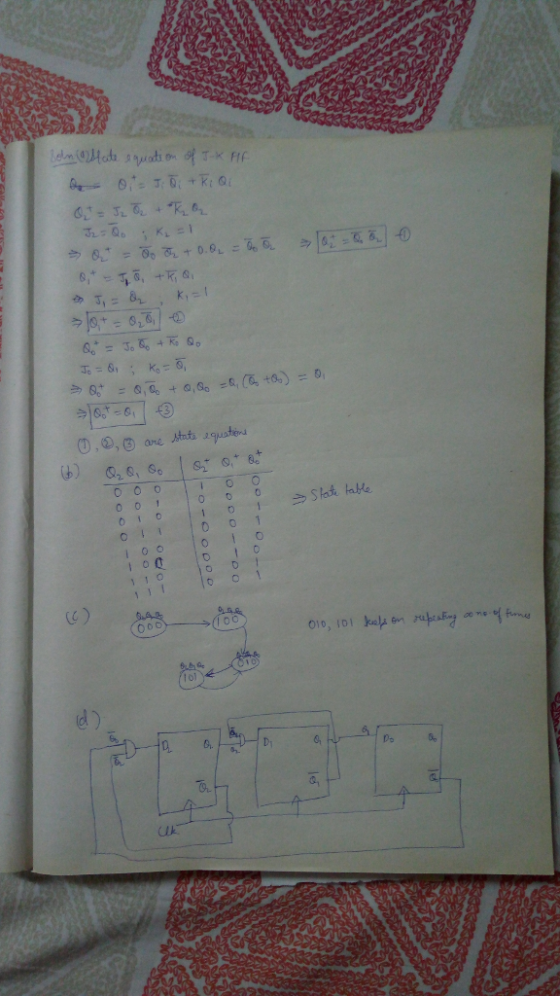

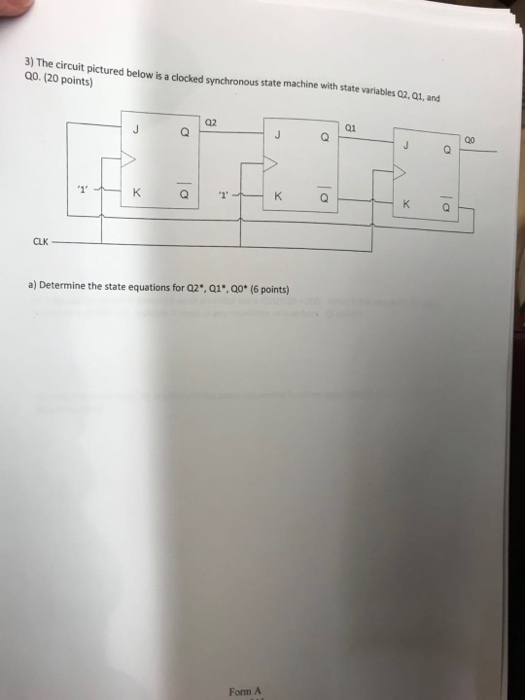

Finish C and D 3) The circuit pictured below is a clocked synchronous state machine with...
Problem: Design a clocked synchronous state machine with two inputs A, and B, and a single output Z that is 1 is: .A had the same value at each of the two previous clock ticks, or B has been 1 since the last time that the first condition was true. In-Lab 1. 2. 3. 4. For the finite state machine (FSM), identify the minimum number of states required Draw the state transition diagram Complete the state transition table Derive the...
1. FSM design. Design a clocked synchronous state machine with one input X, and an output Z. Z is 1 if 010 sequence pattern has occurred in the input X Otherwise, the output should be 0 For solution: a) Draw the state diagram. b) Write the state/output table. xcitation eqations and output equatio You do not have to draw the circuit diagram. Hint: Three states are needed (two D flip-flops) A: initial state waiting for a 0' from X B:...
a) A synchronous finite state machine (FSM) is described by the state table in Fig. 3. Show how redundant states may be found and eliminated to minimise this FSM. [15 marks) b) Derive Boolean equations for the implementation of the reduced FSM. (15 marks] Next state Output Current X1Xo state 00 01 11 10 Z1Zo A A F E C 00 B C B A 01 F A B C 00 G DİACİ 10 Figure 3 Tum over...
a) A...
3. (20 points) For the circuit given below, draw the state machine diagram. CLK A' CLK CLOCK
SEQUENCE is 101
In Lab Procedure
1. Draw the state diagram of the state machine below and show it
to the lab instructor.
2. Fill the state table.
3. Assign State numbers
4. Find simplified Expressions (State Equations) for the
flip-flops
5. Draw the circuit diagram using NAND GATES ONLY for the state
machine
STATE DIAGRAM::
STATE TABLE::
State Table Next State Qc Y DA DB Dc Present State QA Qв 0 0 0 0 0 0 0 0 0...
Thc state transition table bclow is for a sequential circuit with onc input X and onc output Y. The circuit has two state variables A and B, and synchronous input Reset that resets the circuit to state AB-01 when Reset 1: Present State Next State Output X-0 A B A B 0 Reset State 0 0 (9 points) Implement the sequential circuit using minimum number of logic gates and rising- edge triggered D-FFs and draw the logic diagram of the...
1. Given the state diagram shown below for a state machine with
one-bit input W and two-bit output Z:
a. (20 points) Using the state assignments below, make the
state-assigned table. Let S0 = 001, S1 = 010, and S2 = 100.
b. (20 points) Let the state variables be Y2, Y1, and Y0. Derive
an expression for each of the next state variables.
c. (10 points) Derive expressions for the output of this state
diagram.
d. (20 points) Draw...
Problem 3: Derive the state diagram and state table for the clocked sequential circuit given below: X: input Z: output
The following is an equivalent way of creating the circuit
above.
Below is the truth table
Q2, Q1, and Q0 are LED outputs from left to right respectively
and D2, D1, and D0 are switches from left to right respectively
Answer the following questions:
1. What signal(s) represent the present state and next state of
the circuit?
2. Sketch a Finite State Machine diagram of the circuit (Be sure
to show inputs and outputs).
3. Describe the high-level behavior of...
