Homework Answers

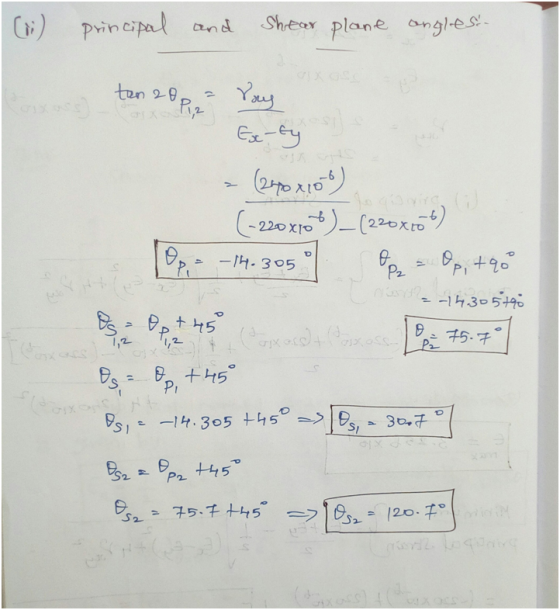

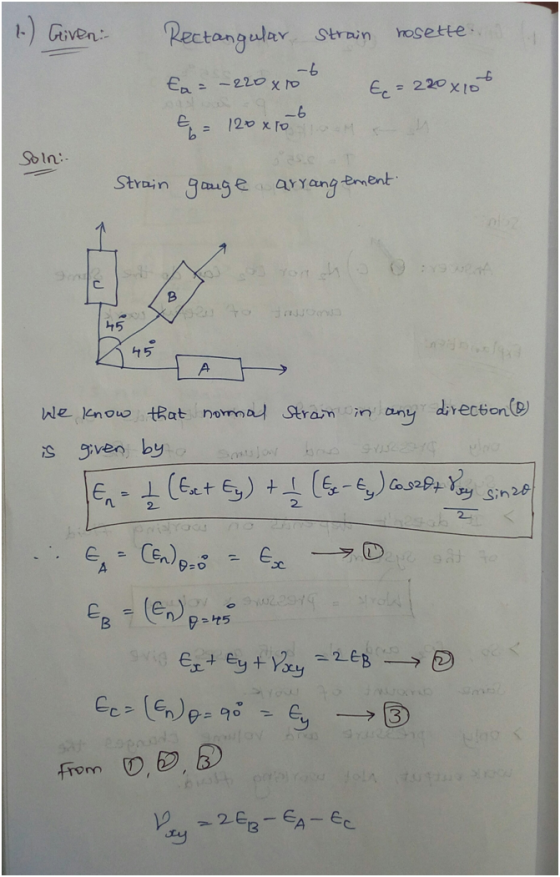

Angles may be different from original value due to the minus sign, but the steps is correct.
Add Answer to:
The following readings are measured from a rectangular strain rosette fixed to a member at a...
Question 4 - (25 marks) 4a) The 60° strain rosette, shown in Figure 6, -is mounted...
Question 4 - (25 marks) 4a) The 60° strain rosette, shown in Figure 6, -is mounted on a beam. The following readings are obtained from each gauge: Ea= 250 u ; Eb= -400 u ; Ec= 280 u Determine:- (9) i. The in-plane principal strains and their orientation, and ii. The maximum in-plane shear strain and the average normal strain. of the principal plane. (6) b a 60° 60° 60°
10–25. The 45° strain rosette is mounted on the surface of a shell. The following readings...
10–25. The 45° strain rosette is mounted on the surface of a shell. The following readings are obtained for each gage: €, = -200(10“), €5 = 300(10), and € = 250(10-). Determine the in-plane principal strains. 45° Prob. 10-25
Question 7 A delta strain gauge rosette (60° angles between gauges) bonded to a magnesium alloy...
Question 7 A delta strain gauge rosette (60° angles between gauges) bonded to a magnesium alloy component, measured microstrain readings of 300, -240 and 60. Determine the principal strains and from them the principal stresses and the maximum shear stress at this point on the component (a) using analytical relationships and (b) by using Mohr's circles for strain and stress. The relevant material properties are: E = 80 x 10°N/m², v=0.3.
A rectangular strain rosette measures the following strains Ea-3451, ε,-193μ ε,-270μ. What are the principal strains,...
A rectangular strain rosette measures the following strains Ea-3451, ε,-193μ ε,-270μ. What are the principal strains, stresses and directions of the principal planes (E- 200 GPa, v-0.3)?
1) An element in plane strain has a 60° strain rosette that is 150 from the...
1) An element in plane strain has a 60° strain rosette that is 150 from the x axis. Use Mohr's circle to determine. E = 29,000 ksi G= 11,200 ksi &=-.0015 E, = .004 E = -0025 a) The principal strains and maximum shear strain. b) Determine the location of the principal strains. c) Determine the stresses from the strains given d) Determine the stresses from the principal strains
Asap 1. The bracket is made of steel (Young's modulus 200 GPa; Poisson's ratio 0.3). When the force P is applied to the bracket, the gages in the strain rosette at point A have the followi...
Asap
1. The bracket is made of steel (Young's modulus 200 GPa; Poisson's ratio 0.3). When the force P is applied to the bracket, the gages in the strain rosette at point A have the following readings: E.-60 μ . Ep 135 μ l, and E.-264 μ (a) Determine the shear strain at point A. (b) Determine the orientation of the principal plane, the in-plane principal strains, the maximum in-plane shear strain, and the average in-plane normal strain. Determine the...
Question 2 I (a) Using a 459 strain gauge rosette placed on a mild steel structure,...
Question 2 I (a) Using a 459 strain gauge rosette placed on a mild steel structure, the following strains were established from the measurements taken:£x = 75x10", Eyy =-115x10-6 = 210 10-6 and Yxy yy (i) Determine the corresponding normal stresses Ox and and shear stress txy. For mild steel, use Young's modulus E= 205 GPa , Poisson's ratio v=0.3 and shear modulus G = 78.8 GPa. [6 marks] (ii) Using the values obtained in (i), determine the principal stresses...
Will rate. P13.067 The strain rosette shown was used to obtain normal strain data at a...
Will rate.
P13.067 The strain rosette shown was used to obtain normal strain data at a point on the free surface of a machine component. Given the values Ea = eb -165 ?? , ec- 130 ?? , E = 10,200 ksi, and v = 0.33, determine -170 ?? , (a) the stress components Ox , ? ? , and Txy at the point (b) the principal stresses and the maximum in-plane shear stress at the point; on paper, show...
Part A - Question 3 (Total Marks for Part A - Question 3:20) A steel beam...
Part A - Question 3 (Total Marks for Part A - Question 3:20) A steel beam in an industrial structure is part of a complicated frame that was difficult to analyse. Using a rectangular strain gauge rosette, the actual strains at point A have been recorded while being subjected to test loads. It is necessary to determine the normal stresses and shear stresses in the actual beam subject to the test loads to check whether the stresses assumed in the...
End of Semester 1, 2018 STEN2002 Civil Engineering Materials (Total Mark for Question 4: 18) Part...
End of Semester 1, 2018 STEN2002 Civil Engineering Materials (Total Mark for Question 4: 18) Part A - Question 4 7 complicated frame that was difficult to analyse Using a rectangular strain gauge rosette, the actual strains at point A have been recorded while being subjected to test loads. It is necessary to determine the principal stresses and shear stresses in the actual beam subject to the test loads to check whether the stresses assumed in the design of the...
Question 4 - (25 marks) 4a) The 60° strain rosette, shown in Figure 6, -is mounted on a beam. The following readings are obtained from each gauge: Ea= 250 u ; Eb= -400 u ; Ec= 280 u Determine:- (9) i. The in-plane principal strains and their orientation, and ii. The maximum in-plane shear strain and the average normal strain. of the principal plane. (6) b a 60° 60° 60°
10–25. The 45° strain rosette is mounted on the surface of a shell. The following readings are obtained for each gage: €, = -200(10“), €5 = 300(10), and € = 250(10-). Determine the in-plane principal strains. 45° Prob. 10-25
Question 7 A delta strain gauge rosette (60° angles between gauges) bonded to a magnesium alloy component, measured microstrain readings of 300, -240 and 60. Determine the principal strains and from them the principal stresses and the maximum shear stress at this point on the component (a) using analytical relationships and (b) by using Mohr's circles for strain and stress. The relevant material properties are: E = 80 x 10°N/m², v=0.3.
A rectangular strain rosette measures the following strains Ea-3451, ε,-193μ ε,-270μ. What are the principal strains, stresses and directions of the principal planes (E- 200 GPa, v-0.3)?
1) An element in plane strain has a 60° strain rosette that is 150 from the x axis. Use Mohr's circle to determine. E = 29,000 ksi G= 11,200 ksi &=-.0015 E, = .004 E = -0025 a) The principal strains and maximum shear strain. b) Determine the location of the principal strains. c) Determine the stresses from the strains given d) Determine the stresses from the principal strains
Asap
1. The bracket is made of steel (Young's modulus 200 GPa; Poisson's ratio 0.3). When the force P is applied to the bracket, the gages in the strain rosette at point A have the following readings: E.-60 μ . Ep 135 μ l, and E.-264 μ (a) Determine the shear strain at point A. (b) Determine the orientation of the principal plane, the in-plane principal strains, the maximum in-plane shear strain, and the average in-plane normal strain. Determine the...
Question 2 I (a) Using a 459 strain gauge rosette placed on a mild steel structure, the following strains were established from the measurements taken:£x = 75x10", Eyy =-115x10-6 = 210 10-6 and Yxy yy (i) Determine the corresponding normal stresses Ox and and shear stress txy. For mild steel, use Young's modulus E= 205 GPa , Poisson's ratio v=0.3 and shear modulus G = 78.8 GPa. [6 marks] (ii) Using the values obtained in (i), determine the principal stresses...
Will rate.
P13.067 The strain rosette shown was used to obtain normal strain data at a point on the free surface of a machine component. Given the values Ea = eb -165 ?? , ec- 130 ?? , E = 10,200 ksi, and v = 0.33, determine -170 ?? , (a) the stress components Ox , ? ? , and Txy at the point (b) the principal stresses and the maximum in-plane shear stress at the point; on paper, show...
Part A - Question 3 (Total Marks for Part A - Question 3:20) A steel beam in an industrial structure is part of a complicated frame that was difficult to analyse. Using a rectangular strain gauge rosette, the actual strains at point A have been recorded while being subjected to test loads. It is necessary to determine the normal stresses and shear stresses in the actual beam subject to the test loads to check whether the stresses assumed in the...
End of Semester 1, 2018 STEN2002 Civil Engineering Materials (Total Mark for Question 4: 18) Part A - Question 4 7 complicated frame that was difficult to analyse Using a rectangular strain gauge rosette, the actual strains at point A have been recorded while being subjected to test loads. It is necessary to determine the principal stresses and shear stresses in the actual beam subject to the test loads to check whether the stresses assumed in the design of the...
