Voltage v |
| 0.5 | 5.83 |
| 1 | 3.39 |
| 1.5 | 1.98 |
| 2 | 1.15 |
time

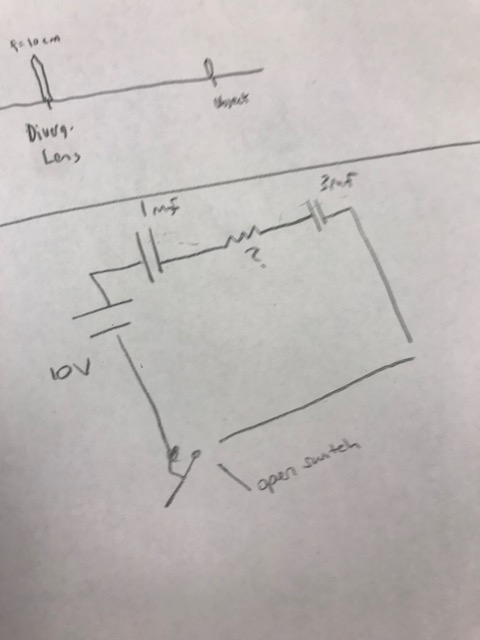

(sec)a 10 v batterey is connected to capacitor c1=1mf, follwoed by unknown resistor R, followed by capacitor C2= 3mf, followed by open switch connected to battery.
(when switch is closed the data above is collected)
1. whats the equation for the resistor?

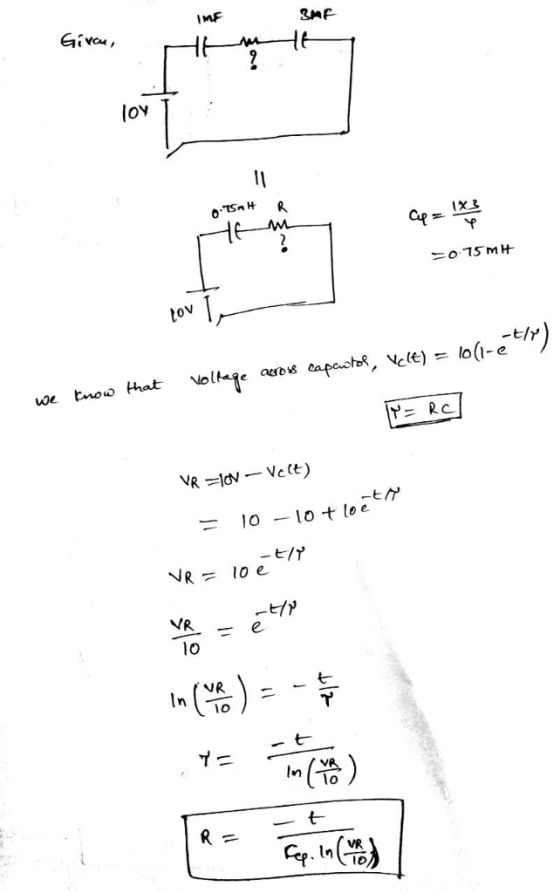

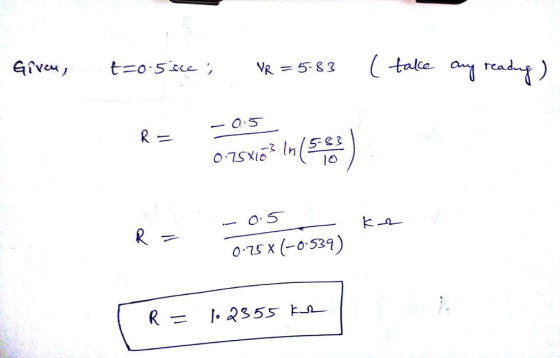

2. determine the equation and ohm value of the resitor and voltage of the battery
Homework Answers
Add Answer to:
time
(sec)
Voltage v
0.5
5.83
1
3.39
1.5
1.98
2
1.15
a 10 v batterey...
What is the Kirchhoff's junction rule equation for this junction? A 10-V-emf battery is connected in...
What is the Kirchhoff's junction rule equation for this junction? A 10-V-emf battery is connected in series with the following: a 2-mu F capacitor, a 2-Ohm resistor, an ammeter, and a switch, initially open; a voltmeter is connected in parallel across the capacitor. After the switch has been closed for a relatively long period (several seconds, say), what are the current and capacitor voltage readings, respectively? A resistor, inductor, battery, and switch are all hooked up in series. Draw a...
A 10-V-emf battery is connected in series with the following: a 2-uF capacitor, a 2- resistor,...
A 10-V-emf battery is connected in series with the following: a 2-uF capacitor, a 2- resistor, an ammeter, and a switch, initially open; a voltmeter is connected in parallel across the capacitor. After the switch has been closed for a relatively long period(several seconds, say) what are the current and capacitor voltage readings respectively
A 1mF flat plate circular capacitor of radius 1 cm is charged to voltage V=1000 V....
A 1mF flat plate circular capacitor of radius 1 cm is charged to voltage V=1000 V. Its plates are then connected through a resistor R=1 Ohm. The magnetic field at its side (cylindrical) surface in the beginning of discharging equals: A. 0 B. 2 T C. 20 mT D. 1.5 Wb E. None of the above
A 1mF flat plate circular capacitor of radius 1 cm is charged to voltage V=1000 V....
A 1mF flat plate circular capacitor of radius 1 cm is charged to voltage V=1000 V. Its plates are then connected through a resistor R=1 Ohm. The magnetic field at its side (cylindrical) surface in the beginning of discharging equals: A. 0 B. 2 T C. 20 mT D. 1.5 Wb E. None of the above
1. Consider the circuit shown below which shows a battery connected to some resistors battery is...
1. Consider the circuit shown below which shows a battery connected to some resistors battery is along with some switches which will be toggled opened or closed at different times. The a15V battery. Resistor R1 is 100?, R2 is 200?, and Cl is 110 ?F, C2 is 80 ?F, and C3 is A stopwatch is started at time t1-0 ms. At that time, switch S1 is closed and all other switches are open and the capacitor is allowed to charge...
2. Consider light bulbs A and B connected to a battery with voltage V and 2...
2. Consider light bulbs A and B connected to a battery with voltage V and 2 switches. Which light bulbs will be ON for each of the following switch conditions: switches 1 and 2 open switches 1 and 2 closed switch 1 open, 2 closed- switch 1 closed, 2 open -- 2
CI C2 = Problem 3. Capacitors in series and in parallel. Switches. In this circuit, C1=1...
CI C2 = Problem 3. Capacitors in series and in parallel. Switches. In this circuit, C1=1 uF, C2=2 uF, C3=3 uF, and C4=4 uF. The voltage source is an ideal 12 V battery. Find the charge on each capacitor when: a) Only Si is closed (obligatory) b) Si and S2 are both closed (extra, highly recommended for practice) C4 = S 31 ww 212 w Problem 4. A classic circuit problem. In the circuit shown, the e.m.f of the battery...
Calculate using physics 6. A 9-V battery is connected through a switch to 2 resistors, R1...
Calculate using physics
6. A 9-V battery is connected through a switch to 2 resistors, R1 = 15 Ohm and R2 = 23 Ohm. and an deal inductor L = 0.46 H as shown in the figure. The switch is initially open. Eight milliseconds after the switch is closed, what is the voltage cross the inductor?
1. (8 points total) A parallel plate capacitor whose plates have area A and plate separation d is...
i need help with this page???
1. (8 points total) A parallel plate capacitor whose plates have area A and plate separation d is connected to a battery. While the capacitor remiains connected to the battery, describe quantitatively what will happen to the charge on the capacitor if each if the following actions occur. That is, explain numerically how the magnitude of the charge on the capacitor in each circumstance compares to the original a. (3 pts) The distance between...
1. Consider this circuit with resistors and capacitors. The R2 battery V1 has a voltage of...
1. Consider this circuit with resistors and capacitors. The R2 battery V1 has a voltage of 9 V, the resistors R1 and R2 have values of 100 Ω and 50 Ω, and the capacitor C1 has a value of 100 nF. Initially, the switches S1 and S2 are open. S2 (10 points) Once we close S1, what will the voltage across Rl and Cl be? How much current initially flows around the closed loop? (10 points) The current in part...
What is the Kirchhoff's junction rule equation for this junction? A 10-V-emf battery is connected in series with the following: a 2-mu F capacitor, a 2-Ohm resistor, an ammeter, and a switch, initially open; a voltmeter is connected in parallel across the capacitor. After the switch has been closed for a relatively long period (several seconds, say), what are the current and capacitor voltage readings, respectively? A resistor, inductor, battery, and switch are all hooked up in series. Draw a...
1. Consider the circuit shown below which shows a battery connected to some resistors battery is along with some switches which will be toggled opened or closed at different times. The a15V battery. Resistor R1 is 100?, R2 is 200?, and Cl is 110 ?F, C2 is 80 ?F, and C3 is A stopwatch is started at time t1-0 ms. At that time, switch S1 is closed and all other switches are open and the capacitor is allowed to charge...
2. Consider light bulbs A and B connected to a battery with voltage V and 2 switches. Which light bulbs will be ON for each of the following switch conditions: switches 1 and 2 open switches 1 and 2 closed switch 1 open, 2 closed- switch 1 closed, 2 open -- 2
CI C2 = Problem 3. Capacitors in series and in parallel. Switches. In this circuit, C1=1 uF, C2=2 uF, C3=3 uF, and C4=4 uF. The voltage source is an ideal 12 V battery. Find the charge on each capacitor when: a) Only Si is closed (obligatory) b) Si and S2 are both closed (extra, highly recommended for practice) C4 = S 31 ww 212 w Problem 4. A classic circuit problem. In the circuit shown, the e.m.f of the battery...
Calculate using physics
6. A 9-V battery is connected through a switch to 2 resistors, R1 = 15 Ohm and R2 = 23 Ohm. and an deal inductor L = 0.46 H as shown in the figure. The switch is initially open. Eight milliseconds after the switch is closed, what is the voltage cross the inductor?
i need help with this page???
1. (8 points total) A parallel plate capacitor whose plates have area A and plate separation d is connected to a battery. While the capacitor remiains connected to the battery, describe quantitatively what will happen to the charge on the capacitor if each if the following actions occur. That is, explain numerically how the magnitude of the charge on the capacitor in each circumstance compares to the original a. (3 pts) The distance between...
1. Consider this circuit with resistors and capacitors. The R2 battery V1 has a voltage of 9 V, the resistors R1 and R2 have values of 100 Ω and 50 Ω, and the capacitor C1 has a value of 100 nF. Initially, the switches S1 and S2 are open. S2 (10 points) Once we close S1, what will the voltage across Rl and Cl be? How much current initially flows around the closed loop? (10 points) The current in part...
