Question
Scenario three is right but One and two are wrong

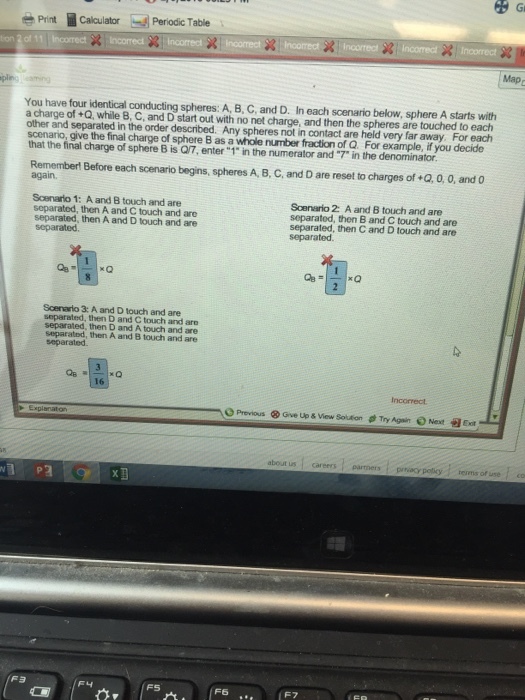

You have four identical conducting spheres A, B, C
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

scenario 1: A and B touch . The charge of A is distributed equally among A and B(since all spheres are identical).after being separated the charge of B will be (1/2)Q.

scenario 2: A and B touch . The charge of A is distributed equally among A and B(since all spheres are identical).after being separated the charge of B will be (1/2)Q. Then B and C touch . The charge of B is distributed equally among C and B. After being separated the charge of B will be (1/4)Q.

scenario 3:   A and D touch . The charge of A is distributed equally among A and D(since all spheres are identical).after being separated the charge of D will be (1/2)Q. Then D and C touch . The charge of D is distributed equally among C and D. After being separated the charge of D will be (1/4)Q. Again   A and D touch . The charge of D and A is distributed equally among A and D. after being separated the charge of A will be (3/8)Q. Then A and B touch . The charge of A is distributed equally among A and B. After being separated the charge of B will be (3/16)Q.

0 0
