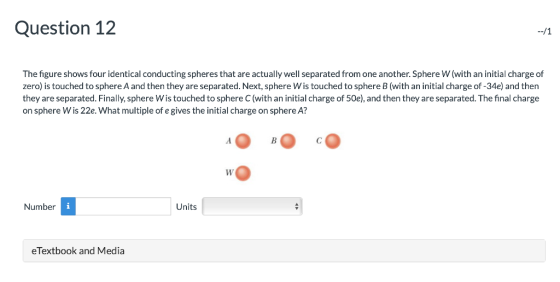

Question 12 The figure shows four identical conducting spheres that are actually well separated from one another.Sphere W(with an initial charge of zero) is touched to sphere A and then they are separated. Next, sphere Wis touched to sphere B(with an initial charge of -34e) and then they are separated. Finally, sphere Wis touched to sphere C(with an initial charge of 50e), and then they are separated. The final charge on sphere Wis 22e. What multiple of e gives the initial charge on sphere A? Number Units eTextbook and Media

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

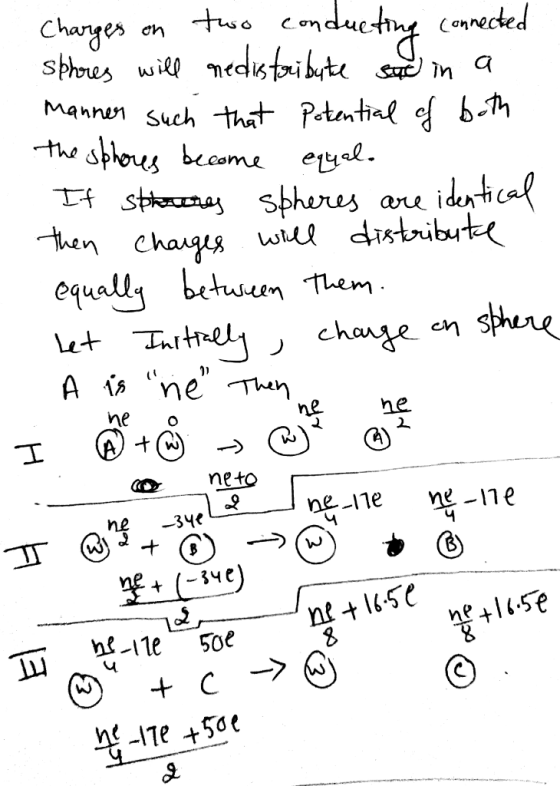

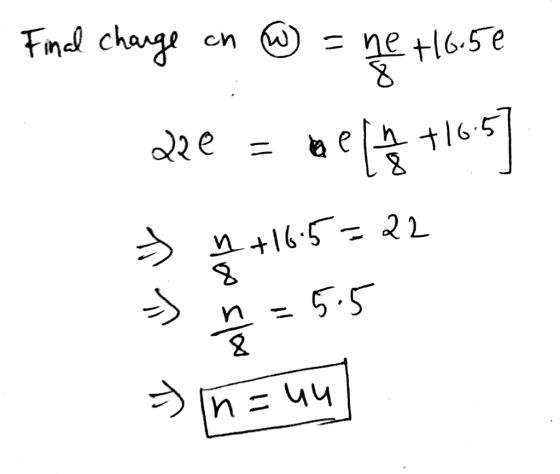

Charges en mannen such at Ptential ร์ b.th bucome quall ne o he. neto + (-34e -11e 50e

0 0
