Homework Answers
Add Answer to:

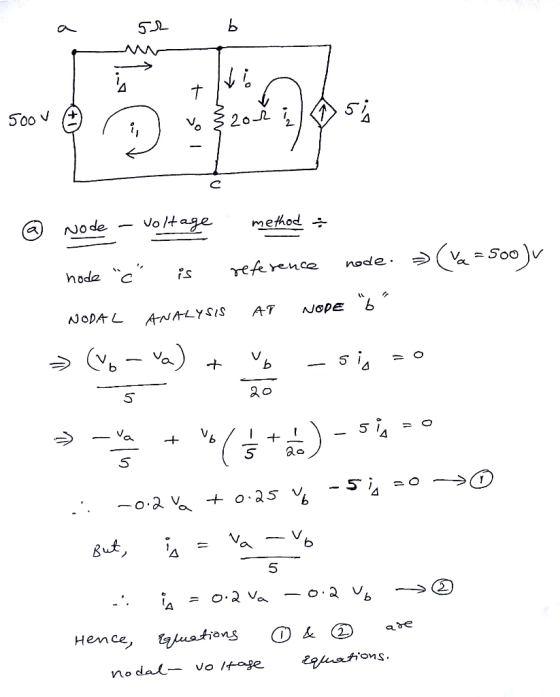

Problem A2 (10 points each part) For the following circuit establish the set of equations needed...
Problem 1 R1 R3 R4 Find the node voltage equations for nodes a and b, and...
Problem 1 R1 R3 R4 Find the node voltage equations for nodes a and b, and write them in the form AV. BV, C using the variables as labeled in the diagram. Use any method you wish (Matrix row reductions, calculator, Matlab, psychic powers...) to solve for Va and Vo using the following values: Problem 2 Va Vs 12V s 10mA R1 = 30Ω R2 400 R3 250 R1 R3 For the circuit above, set up node voltage equations to...
Problem 1 (20 points) You have the circuit shown below. 7 mA 8 kg %, 1...
Problem 1 (20 points) You have the circuit shown below. 7 mA 8 kg %, 1 ko Rz 4k sht 10v ☺ ş 4 kg (lc Ako su sos a. Write a complete set of node voltage equations; one for each node (A through E) b. Using the equations from part a, determine the node voltages VA, VB, Vc, Vo and Ve c. Using the node voltages from part b, determine Vyand ly. Problem 2 (20 points) Using the same...
Problem #1: Circuit Analysis and Thevenin Equivalent [20 points] The bridge circuit is connected to a...
Problem #1: Circuit Analysis and Thevenin Equivalent [20 points] The bridge circuit is connected to a load RL between terminals (a, b) as shown (a) Use node-voltage method to solve for VTH respect to terminal (a, b) (b) Use mesh-current method to solve for isc respect to terminal (a, b) 5Ω 2Ω 2 Ri b al 16 V 4Ω 2Ω
Problem 4: Assume Vin 10 cos(201) 4a) Write the voltage node equations for the following circuit....
m
for milli
Problem 4: Assume Vin 10 cos(201) 4a) Write the voltage node equations for the following circuit. 4b) Solve for V1, V2, and V3 4c) Simulate this circuit in PartSim and check your answers VO 10 V1 20 V2 V3 1mF 2mF 3mF Vin(ヘン Problem4
Problem 4: Assume Vin 10 cos(201) 4a) Write the voltage node equations for the following circuit. 4b) Solve for V1, V2, and V3 4c) Simulate this circuit in PartSim and check your answers...
10-76 The circuit in Figure P10-76 is shown in the t domain with initial values for...
10-76 The circuit in Figure P10-76 is shown in the t domain with initial values for the energy storage devices. (a) Transform the circuit into the s domain and write a set of node-voltage equations. (b) Transform the circuit into the s domain and write a set of mesh-current equations. (c) With the circuit in the zero state, use symbolic operations in MATLAB to solve for the node voltages. UR ) R W Vol a ich Llo_c() W VAT) yp)...
Problem 1. Perform the following for the circuit below using the node voltage method: 10Ω 10Ω...
Problem 1. Perform the following for the circuit below using the node voltage method: 10Ω 10Ω 5i a) Calculate ia b) Calculate v c) Calculate Psource,5ia Problem 2. Perform the following for the circuit below using the node voltage method: 10Ω 1 4Ω 2 60V+ 30A V. 3 2Ω 5Ω 3 a) Calculate vi, v2 and vs b) Calculate Psource 30A c) Calculate Psource,Gov node voltage method Problem 3. Perform the following for the circuit below using the 10V 4Ω...
Problem One (25 points) 300A. Determine the equivalent resistance as seen by the current source is...
Problem One (25 points) 300A. Determine the equivalent resistance as seen by the current source is in the circuit shown below. Show carefully each step of your solution process. B. Find the magnitude of the power delivered by the source in the circuit shown if current source is = 50 mA. OSA 100 150 12 w 75or SOL 5000 750 n 1kn 36000 250 12 3002 Velg Problem Two (25 points) v=l6 Consider the electrical circuit shown below. Suppose that...
please solve them all 2) For the circuit shown in Figure 1. Find the following: A....
please solve them all
2) For the circuit shown in Figure 1. Find the following: A. How many independent loops are present in the circuit? B. How many nodes are present in the circuit? C. Write a KVL equation at every independent loop (mesh) in the circuit in terms of the indicated voltage and current variables. D. Write a KCL equation at every node in the circuit. Write those equations using the indicated voltage variables by incorporating Ohm's Law for...
[15 Points] How many nodes does the circuit have (indicate on the diagram)? How many unknown volt...
[15 Points] How many nodes does the circuit have (indicate on
the diagram)? How many unknown voltages does this lead too (also
show on the diagram)?
[20 Points] Define the branch currents and assign current flow
directions on the diagram. Write down the minimum number of KCL
equations needed to analyze the circuit. Use Ohm’s law to re-write
the equations in terms of the voltage variables
[15 Points] Solve the equations from part b. for
Vout(t) and sketch, assuming G...
PART 1: Nodal/Mesh Decisions Example 1 Let's think about how to decide whether Nodal or Mesh...
PART 1: Nodal/Mesh Decisions Example 1 Let's think about how to decide whether Nodal or Mesh is a better approach to a problem. Both will work, but one may be a lot more work than the other one. For Part i and 2 of this homework do not write any KCL/KVL equations or use ohm's law until/unless the problem asks you to. Consider this circuit /2 In Nodal Analysis, our variables are nodal voltages. And for each unknown nodal voltage...
Problem 1 R1 R3 R4 Find the node voltage equations for nodes a and b, and write them in the form AV. BV, C using the variables as labeled in the diagram. Use any method you wish (Matrix row reductions, calculator, Matlab, psychic powers...) to solve for Va and Vo using the following values: Problem 2 Va Vs 12V s 10mA R1 = 30Ω R2 400 R3 250 R1 R3 For the circuit above, set up node voltage equations to...
Problem 1 (20 points) You have the circuit shown below. 7 mA 8 kg %, 1 ko Rz 4k sht 10v ☺ ş 4 kg (lc Ako su sos a. Write a complete set of node voltage equations; one for each node (A through E) b. Using the equations from part a, determine the node voltages VA, VB, Vc, Vo and Ve c. Using the node voltages from part b, determine Vyand ly. Problem 2 (20 points) Using the same...
Problem #1: Circuit Analysis and Thevenin Equivalent [20 points] The bridge circuit is connected to a load RL between terminals (a, b) as shown (a) Use node-voltage method to solve for VTH respect to terminal (a, b) (b) Use mesh-current method to solve for isc respect to terminal (a, b) 5Ω 2Ω 2 Ri b al 16 V 4Ω 2Ω
m
for milli
Problem 4: Assume Vin 10 cos(201) 4a) Write the voltage node equations for the following circuit. 4b) Solve for V1, V2, and V3 4c) Simulate this circuit in PartSim and check your answers VO 10 V1 20 V2 V3 1mF 2mF 3mF Vin(ヘン Problem4
Problem 4: Assume Vin 10 cos(201) 4a) Write the voltage node equations for the following circuit. 4b) Solve for V1, V2, and V3 4c) Simulate this circuit in PartSim and check your answers...
10-76 The circuit in Figure P10-76 is shown in the t domain with initial values for the energy storage devices. (a) Transform the circuit into the s domain and write a set of node-voltage equations. (b) Transform the circuit into the s domain and write a set of mesh-current equations. (c) With the circuit in the zero state, use symbolic operations in MATLAB to solve for the node voltages. UR ) R W Vol a ich Llo_c() W VAT) yp)...
Problem 1. Perform the following for the circuit below using the node voltage method: 10Ω 10Ω 5i a) Calculate ia b) Calculate v c) Calculate Psource,5ia Problem 2. Perform the following for the circuit below using the node voltage method: 10Ω 1 4Ω 2 60V+ 30A V. 3 2Ω 5Ω 3 a) Calculate vi, v2 and vs b) Calculate Psource 30A c) Calculate Psource,Gov node voltage method Problem 3. Perform the following for the circuit below using the 10V 4Ω...
Problem One (25 points) 300A. Determine the equivalent resistance as seen by the current source is in the circuit shown below. Show carefully each step of your solution process. B. Find the magnitude of the power delivered by the source in the circuit shown if current source is = 50 mA. OSA 100 150 12 w 75or SOL 5000 750 n 1kn 36000 250 12 3002 Velg Problem Two (25 points) v=l6 Consider the electrical circuit shown below. Suppose that...
please solve them all
2) For the circuit shown in Figure 1. Find the following: A. How many independent loops are present in the circuit? B. How many nodes are present in the circuit? C. Write a KVL equation at every independent loop (mesh) in the circuit in terms of the indicated voltage and current variables. D. Write a KCL equation at every node in the circuit. Write those equations using the indicated voltage variables by incorporating Ohm's Law for...
[15 Points] How many nodes does the circuit have (indicate on
the diagram)? How many unknown voltages does this lead too (also
show on the diagram)?
[20 Points] Define the branch currents and assign current flow
directions on the diagram. Write down the minimum number of KCL
equations needed to analyze the circuit. Use Ohm’s law to re-write
the equations in terms of the voltage variables
[15 Points] Solve the equations from part b. for
Vout(t) and sketch, assuming G...
PART 1: Nodal/Mesh Decisions Example 1 Let's think about how to decide whether Nodal or Mesh is a better approach to a problem. Both will work, but one may be a lot more work than the other one. For Part i and 2 of this homework do not write any KCL/KVL equations or use ohm's law until/unless the problem asks you to. Consider this circuit /2 In Nodal Analysis, our variables are nodal voltages. And for each unknown nodal voltage...
