A block of mass m1.95 kg and a block of mass m2 6.20 kg are connected...

Question

Question

science physics

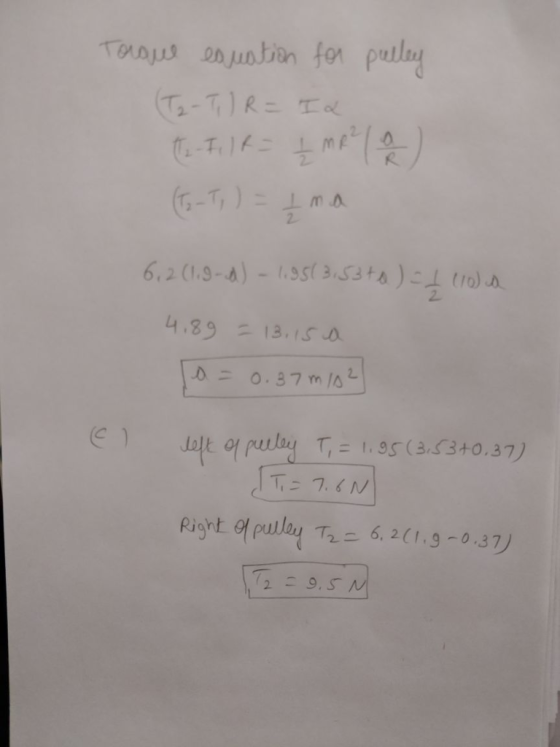

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

A block of mass m, 1.90 kg and a block of mass m2 6.05 kg are...

A block of mass m, 1.90 kg and a block of mass m2 6.05 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R 0.250 m and mass M - 10.0 kg. The fixed, wedge-shaped ramp makes an angle of 8- 30.00 as shown in the figure. The coefficient of kinetic friction is 0.360 for both blocks. M, R (a) Draw force diagrams of both blocks and of the pulley....
Circle answers please A block of mass m1 = 1.65 kg and a block of mass...

Circle answers please A block of mass m1 = 1.65 kg and a block of mass m2 = 6.15 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R = 0.250 m and mass M = 10.0 kg. The fixed, wedge-shaped ramp makes an angle of 0 = 30.0° as shown in the figure. The coefficient of kinetic friction is 0.360 for both blocks. М, R т (a) Draw force...
A block of mass m1 = 1.95 kg and a block of mass m2 = 5.50...

A block of mass m1 = 1.95 kg and a block of mass m2 = 5.50 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R = 0.250 m and mass M = 10.0 kg. The fixed, wedge-shaped ramp makes an angle of θ = 30.0° as shown in the figure. The coefficient of kinetic friction is 0.360 for both blocks. A wedge in the shape of a right trapezoid...

A block of mass m1 = 1.90 kg and a block of mass m2 = 6.50...

A block of mass m1 = 1.90 kg and a block of mass m2 = 6.50 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R = 0.250 m and mass M = 10.0 kg. The fixed, wedge-shaped ramp makes an angle of θ = 30.0° as shown in the figure. The coefficient of kinetic friction is 0.360 for both blocks. A wedge in the shape of a right trapezoid...
A block of mass m1 1.80 kg and a block of mass m2 5.55 kg are...

A block of mass m1 1.80 kg and a block of mass m2 5.55 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R = 0.250 m and mass M = 10.0 kg. These blocks are allowed to move on a fixed block-wedge of angle e 30.0°. The coefficient of kinetic friction is 0.360 for both blocks. Draw free-body diagrams of both blocks and of the pulley. M, R Mig...
.016. A block of mass m, 2.45 kg and a block of mass m 6.05 kg...

.016. A block of mass m, 2.45 kg and a block of mass m 6.05 kg are connected by a massless string over a puley in the shape of a solid disk having radius R 0.250 m and mass M20.0 kg. The fixed, wedge-shaped ramp makes an angle of 8 30.O as shown in the figure. The coefficient of kinetic friction is 0.360 for both blocks G My Notes Ask Your Teacher M. R (a) Draw force diagrams of both...

MR 772 A block of mass m2 = 1.08 kg and a block of mass m2...

MR 772 A block of mass m2 = 1.08 kg and a block of mass m2 = 12.1 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R = 0.250 m and mass M = 2 kg. The fixed, wedge-shaped ramp makes an angle of 0 = 30.0° as shown in the figure. The coefficient of kinetic friction is 0.19 for both blocks. Determine the acceleration of the blocks.
1) A block of mass 1 kg and one of mass 7 kg are connected by...

1) A block of mass 1 kg and one of mass 7 kg are connected by a massless string over a pulley that is in the shape of a disk having a radius of 0.11 m, and a mass of 6 kg. In addition, the blocks are allowed to move on a fixed block-wedge of angle 48◦ , as shown. The coefficient of kinetic friction is 0.25 for both blocks. What is the acceleration of the two blocks? The acceleration...
In the figure, two 6.20 kg blocks are connected by a massless string over a pulley...

In the figure, two 6.20 kg blocks are connected by a massless string over a pulley of radius 2.40 cm and rotational inertia of 7.40 Times 10^-1 kg m^2. The string does not slip on the pulley; and there is no friction between the table and the sliding block; the pulley's axis is frictionless. When this system is released from rest the pulley turns through 1.30 rad in 91.0 ms and the acceleration of the blocks is constant. What are...

As shown in Figure 3(a), a wooden block B with mass mg 2.4 kg on a rough inclined plane is connected to a massless sp...

As shown in Figure 3(a), a wooden block B with mass mg 2.4 kg on a rough inclined plane is connected to a massless spring (k 160 N/m) by a massless cord passing over a pulley P of radius R 0.25 m and mass M, 0.60 kg. The angle of the inclined plane is 0 37 and the coefficients of static and kinetic frictions are g 0.35 and A 0.30 respectively The frictional force at the axle of the pulley...
