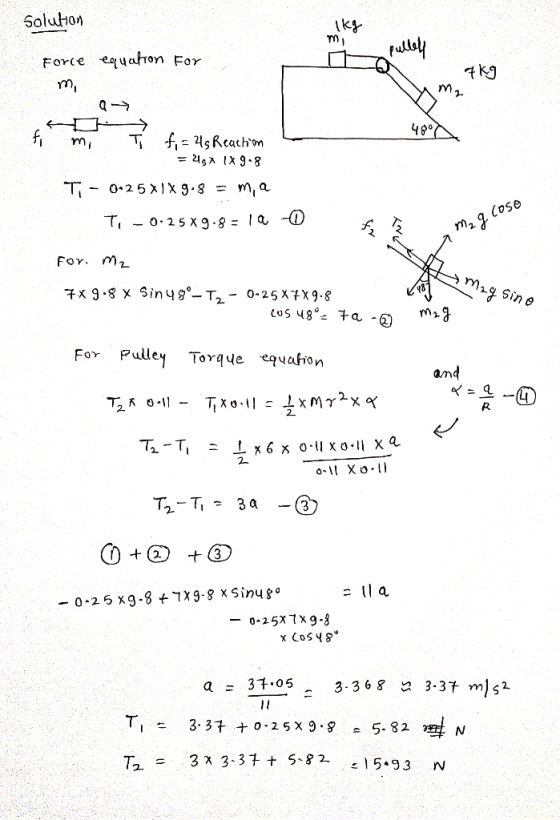

1) A block of mass 1 kg and one of mass 7 kg are connected by...
1) A block of mass 1 kg and one of mass 7 kg are connected by a massless string over a pulley that is in the shape of a disk having a radius of 0.11 m, and a mass of 6 kg. In addition, the blocks are allowed to move on a fixed block-wedge of angle 48◦ , as shown. The coefficient of kinetic friction is 0.25 for both blocks. What is the acceleration of the two blocks? The acceleration of gravity is 9.8 m/s^2 . Assume the positive direction is to the right. Answer in units of m/s^2 .
2) Find the tension in the horizontal part of the string. Answer in units of N.
Homework Answers
A block of mass m1 1.80 kg and a block of mass m2 5.55 kg are...
A block of mass m1 1.80 kg and a block of mass m2 5.55 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R = 0.250 m and mass M = 10.0 kg. These blocks are allowed to move on a fixed block-wedge of angle e 30.0°. The coefficient of kinetic friction is 0.360 for both blocks. Draw free-body diagrams of both blocks and of the pulley. M, R Mig...
A block of mass m1.95 kg and a block of mass m2 6.20 kg are connected...
A block of mass m1.95 kg and a block of mass m2 6.20 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R 0.250 m and mass M-10.0 kg. The fixed, wedge-shaped ramp makes an angle of θ-30.0° as shown in the figure. The coefficient of kinetic friction is 0.360 for both blocks. M, R (a) Draw force diagrams of both blocks and of the pulley. Choose File no file...
A block of mass m1 = 1.95 kg and a block of mass m2 = 5.50...
A block of mass m1 = 1.95 kg and a block of mass m2 = 5.50 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R = 0.250 m and mass M = 10.0 kg. The fixed, wedge-shaped ramp makes an angle of θ = 30.0° as shown in the figure. The coefficient of kinetic friction is 0.360 for both blocks. A wedge in the shape of a right trapezoid...
MR 772 A block of mass m2 = 1.08 kg and a block of mass m2...
MR 772 A block of mass m2 = 1.08 kg and a block of mass m2 = 12.1 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R = 0.250 m and mass M = 2 kg. The fixed, wedge-shaped ramp makes an angle of 0 = 30.0° as shown in the figure. The coefficient of kinetic friction is 0.19 for both blocks. Determine the acceleration of the blocks.
A block of mass m1 = 1.90 kg and a block of mass m2 = 6.50...
A block of mass
m1 = 1.90 kg
and a block of mass
m2 = 6.50 kg
are connected by a massless string over a pulley in the shape of
a solid disk having radius
R = 0.250 m
and mass
M = 10.0 kg.
The fixed, wedge-shaped ramp makes an angle of
θ = 30.0°
as shown in the figure. The coefficient of kinetic friction is
0.360 for both blocks.
A wedge in the shape of a right trapezoid...
A block of mass m, 1.90 kg and a block of mass m2 6.05 kg are...
A block of mass m, 1.90 kg and a block of mass m2 6.05 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R 0.250 m and mass M - 10.0 kg. The fixed, wedge-shaped ramp makes an angle of 8- 30.00 as shown in the figure. The coefficient of kinetic friction is 0.360 for both blocks. M, R (a) Draw force diagrams of both blocks and of the pulley....
Circle answers please A block of mass m1 = 1.65 kg and a block of mass...
Circle answers please
A block of mass m1 = 1.65 kg and a block of mass m2 = 6.15 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R = 0.250 m and mass M = 10.0 kg. The fixed, wedge-shaped ramp makes an angle of 0 = 30.0° as shown in the figure. The coefficient of kinetic friction is 0.360 for both blocks. М, R т (a) Draw force...
.016. A block of mass m, 2.45 kg and a block of mass m 6.05 kg...
.016. A block of mass m, 2.45 kg and a block of mass m 6.05 kg are connected by a massless string over a puley in the shape of a solid disk having radius R 0.250 m and mass M20.0 kg. The fixed, wedge-shaped ramp makes an angle of 8 30.O as shown in the figure. The coefficient of kinetic friction is 0.360 for both blocks G My Notes Ask Your Teacher M. R (a) Draw force diagrams of both...
Question 1 10 pts Two blocks A and B are connected by a massless string over...
Question 1 10 pts Two blocks A and B are connected by a massless string over a massless, frictionless pulley, as shown in the figure below. Both blocks are being held in place to prevent motion. Block A has a mass of 3.0 kg. and block B a mass of 10.0 kg. Block A is on top of a horizontal table, with a coefficient of kinetic friction of 0.25. If block B is released and the system is allowed to...
A block of mass m1 = 36 kg on a horizontal surface is connected to a...
A block of mass m1 = 36 kg on a horizontal surface is connected to a mass m2 = 17.1 kg that hangs vertically as shown in the figure below. The two blocks are connected by a string of negligible mass passing over a frictionless pulley. The coefficient of kinetic friction between m1 and the horizontal surface is 0.25. (a) What is the magnitude of the acceleration (in m/s2) of the hanging mass? ____ m/s2 (b) Determine the magnitude of...
A block of mass m1 1.80 kg and a block of mass m2 5.55 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R = 0.250 m and mass M = 10.0 kg. These blocks are allowed to move on a fixed block-wedge of angle e 30.0°. The coefficient of kinetic friction is 0.360 for both blocks. Draw free-body diagrams of both blocks and of the pulley. M, R Mig...
A block of mass m1.95 kg and a block of mass m2 6.20 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R 0.250 m and mass M-10.0 kg. The fixed, wedge-shaped ramp makes an angle of θ-30.0° as shown in the figure. The coefficient of kinetic friction is 0.360 for both blocks. M, R (a) Draw force diagrams of both blocks and of the pulley. Choose File no file...
MR 772 A block of mass m2 = 1.08 kg and a block of mass m2 = 12.1 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R = 0.250 m and mass M = 2 kg. The fixed, wedge-shaped ramp makes an angle of 0 = 30.0° as shown in the figure. The coefficient of kinetic friction is 0.19 for both blocks. Determine the acceleration of the blocks.
A block of mass
m1 = 1.90 kg
and a block of mass
m2 = 6.50 kg
are connected by a massless string over a pulley in the shape of
a solid disk having radius
R = 0.250 m
and mass
M = 10.0 kg.
The fixed, wedge-shaped ramp makes an angle of
θ = 30.0°
as shown in the figure. The coefficient of kinetic friction is
0.360 for both blocks.
A wedge in the shape of a right trapezoid...
A block of mass m, 1.90 kg and a block of mass m2 6.05 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R 0.250 m and mass M - 10.0 kg. The fixed, wedge-shaped ramp makes an angle of 8- 30.00 as shown in the figure. The coefficient of kinetic friction is 0.360 for both blocks. M, R (a) Draw force diagrams of both blocks and of the pulley....
Circle answers please
A block of mass m1 = 1.65 kg and a block of mass m2 = 6.15 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R = 0.250 m and mass M = 10.0 kg. The fixed, wedge-shaped ramp makes an angle of 0 = 30.0° as shown in the figure. The coefficient of kinetic friction is 0.360 for both blocks. М, R т (a) Draw force...
.016. A block of mass m, 2.45 kg and a block of mass m 6.05 kg are connected by a massless string over a puley in the shape of a solid disk having radius R 0.250 m and mass M20.0 kg. The fixed, wedge-shaped ramp makes an angle of 8 30.O as shown in the figure. The coefficient of kinetic friction is 0.360 for both blocks G My Notes Ask Your Teacher M. R (a) Draw force diagrams of both...
Question 1 10 pts Two blocks A and B are connected by a massless string over a massless, frictionless pulley, as shown in the figure below. Both blocks are being held in place to prevent motion. Block A has a mass of 3.0 kg. and block B a mass of 10.0 kg. Block A is on top of a horizontal table, with a coefficient of kinetic friction of 0.25. If block B is released and the system is allowed to...
