What is the final value of the system described by the transfer function: if the input...

Question

Question

What is the final value of the system described by the transfer function: if the input is 10u(t)?

engineering Electrical-Engineering

Answer 1

Answer #1

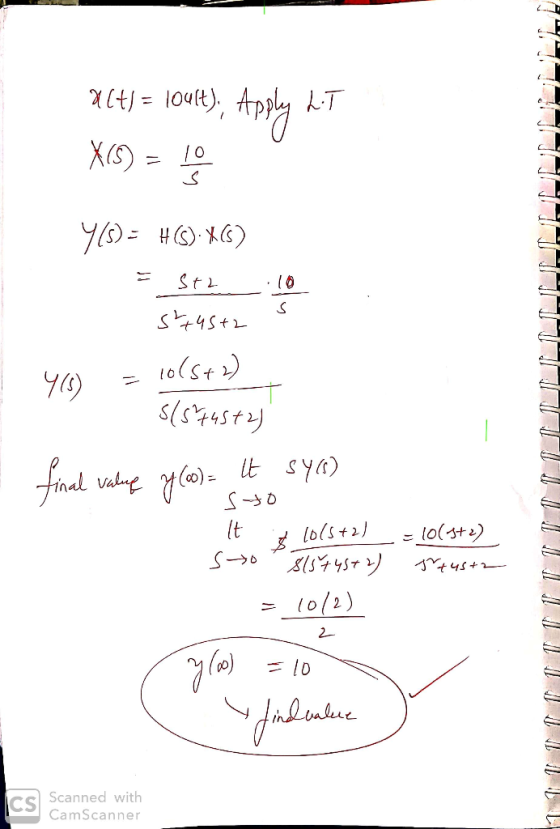

# [+] = loult), Apply LiT X15) = 10 475) = H (S). X6) = st2 s+45+2 10 1 46) = 10(5+2) 545745+23 final value y (00) = It sys)

Answer 2

Similar Homework Help Questions

4.8.2 For an LTIC system described by the transfer function H(s) = + 2) find the...

4.8.2 For an LTIC system described by the transfer function H(s) = + 2) find the steady-state system response to a. 10u(t) b. cos (2+ + 60°) (1) c. sin (3 - 45")u(t) d. e3 u(t)
3. Consider the causal single input single output system described by the transfer function (6s +...

3. Consider the causal single input single output system described by the transfer function (6s + 1)(4s + 3) 53 + 8s² + 19s +2 Y(s) U(s) Using the phase variable decomposition method express in terms of the state vector x, state matrix A, input matrix B and output matrix C.
Q3. Use the multiple system reduction methods: a) Find the final transfer function of the following...

Q3. Use the multiple system reduction methods: a) Find the final transfer function of the following system. (4 marks) R(5) C(s) S b) Find the initial and the final values of the impulse time-response of the system. (2 marks; bonus) c) If the input r(t) = sin (t), determine the steady-state response of the output, c(t). (2 marks; bonus)

6 Given the input of system x(t) = 2elt and transfer function H(w) = what will...

6 Given the input of system x(t) = 2elt and transfer function H(w) = what will be the magnitude y(t) ? 2 - jw 09 1 65 5 62 5
Consider the system described above. a. Find the transfer function of the system by reducing the...

Consider the system described above. a. Find the transfer function of the system by reducing the diagram. b. Draw a signal-flow diagram for the given system. c. Using Mason's rule find the transfer function of the system. d. Compare your answers to part (a) and part (c). What do you notice? Explain. Hals) R(s) Ga(s) Gals) Go(s) Ge(s) C(s) Hz(s)
Use the transfer function in the problem below. The input to this system H7jω is: x(t)...

Use the transfer function in the problem below. The input to this system H7jω is: x(t) = 0.6cos(12t+40°) Find the output of the system is y(t). (10 points) H7(jω)=(5000jω)/((jω+10)(jω+500))

For a control system, its transfer function from the input to the output is H(s) =...

For a control system, its transfer function from the input to the output is H(s) = 4/ (s2 + 2s + 2 ) if the input is r(t) = u(t), the steady-state tracking error is . a. 0 b. 1. c. 2 d. −1 e. None
2. what is the transfer function of the system? The continuous-time system shown in the figure...

2. what is the transfer function of the system? The continuous-time system shown in the figure consists of two integrators and two scalar multipliers. r(t) e(t) y(t) w(t) 1. Write a differential equation that relates the input x(t) and the output y(t)
A system is described by the following transfer function: A) What is the frequency response, H(f)?...

A system is described by the following transfer function: A) What is the frequency response, H(f)? B) What is the magnitude and phase (in degrees) of the frequency response at a frequency of w=3 rads/sec, corresponding to hz? $2 + 16 H(s) = - 11s(s+2)(2+1) We were unable to transcribe this image

A linear system is described by the transfer function G(o) Determine the location of the pole in ...

A linear system is described by the transfer function G(o) Determine the location of the pole in a minimum-beta lead compensator design for this system 10 which will yield a phase margin of 65.5 degrees at a magnitude crossover of 5.4 rad/sec. A linear system is described by the transfer function G(o) Determine the location of the pole in a minimum-beta lead compensator design for this system 10 which will yield a phase margin of 65.5 degrees at a magnitude...
