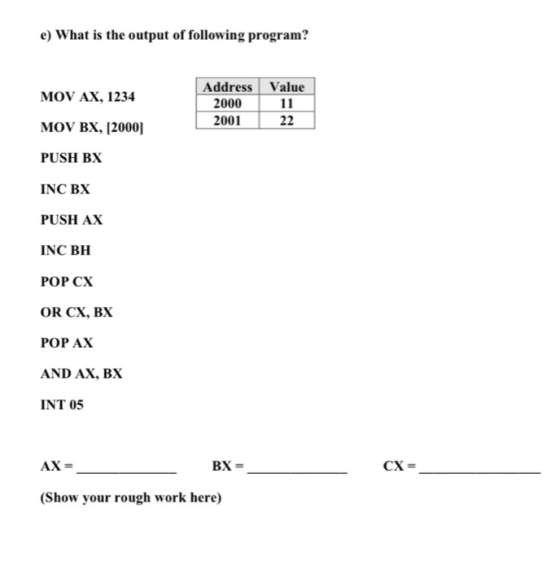

![e) What is the output of following program? MOV AX, 1234 Address Value 1 2000 11 200122 MOV BX, [2000] PUSH BX INC BX PUSH AX](http://img.homeworklib.com/questions/59db51d0-d10d-11ea-bab0-af6b3e30af88.png?x-oss-process=image/resize,w_560)
Homework Answers

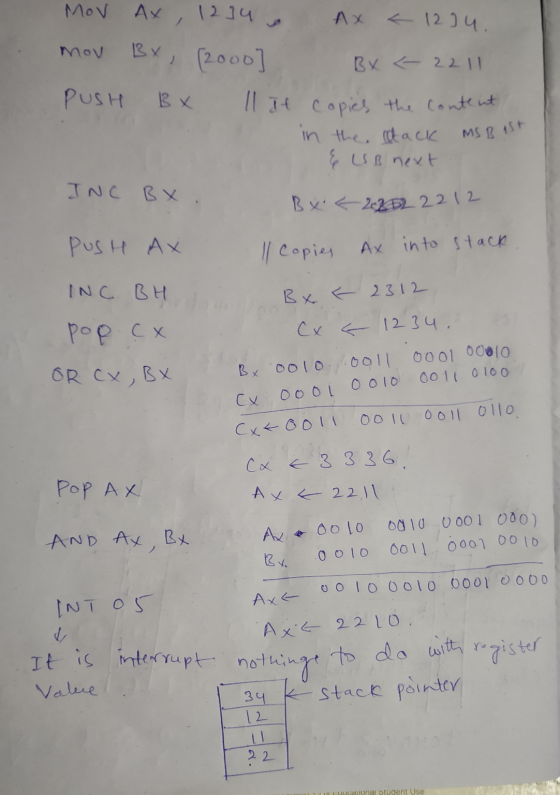

![MOV AX, 1234 Ax < 1234. MOV BX, [2000] BX <- 2211 PUSH Bx llit copies the content in the lack MS Bast I & UB next. INC BX . B](http://img.homeworklib.com/questions/c9cb4a50-d138-11ea-8b67-ebf70e4d4add.png?x-oss-process=image/resize,w_560)
Add Answer to:
e) What is the output of following program? MOV AX, 1234 Address Value 1 2000 11...
