Homework Answers
Add Answer to:

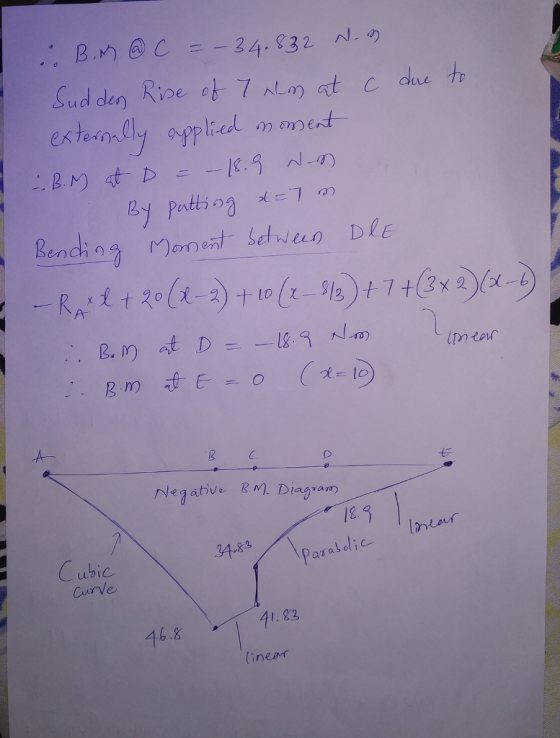

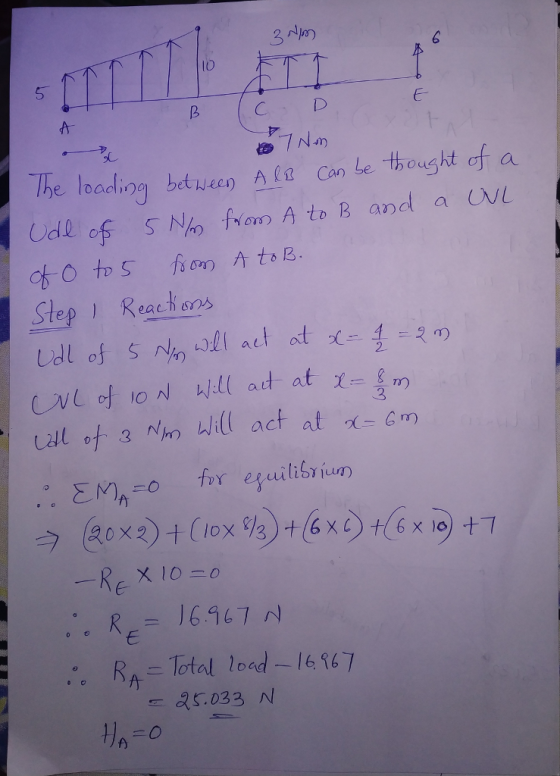

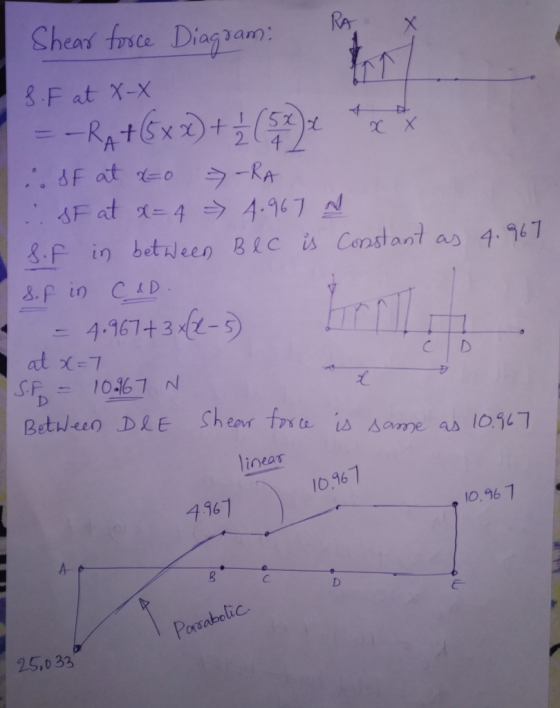

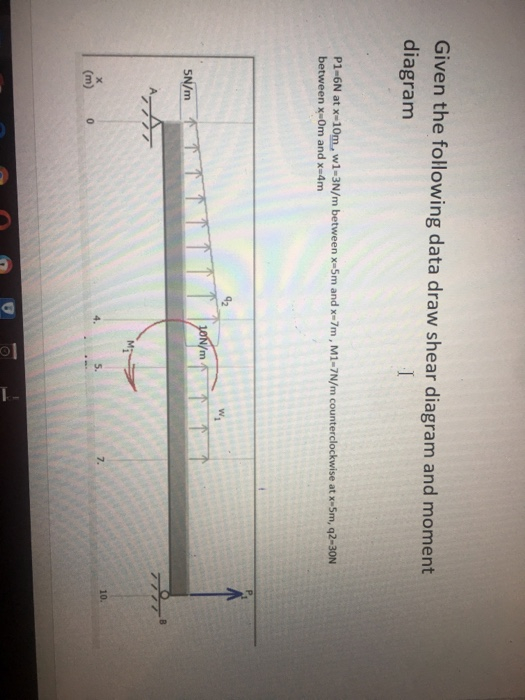

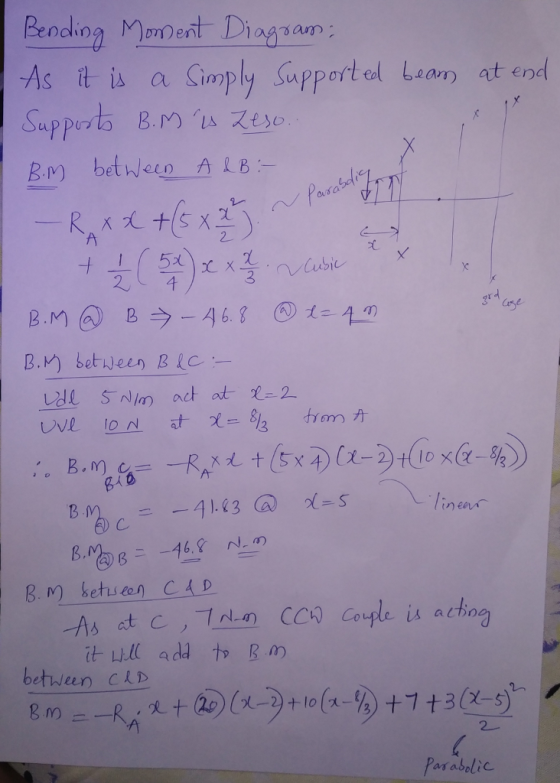

Given the following data draw shear diagram and moment diagram P1-6N at x-10m, w1-3N/m between x-5m...
Draw shear force and moment diagrams W1 2 | P = 15 kN Given: c =...
Draw shear force and moment diagrams
W1 2 | P = 15 kN Given: c = 1.75 m d = 5.00 m a 1.25 m b 2.00 m W1 4 kN/m w2 5 kN/m
An infinite slab of charge of thickness 10m lies on the x-y plane between z = -5m and z=+5m
An infinite slab of charge of thickness 10m lies on the x-y
plane between z = -5m and z=+5m. The charge density, ρ, is 4 C/m3
and is a constant throughout the slab. (HINT: this is similar to
what we did in class to find the E-field for an “infinite sheet” of
charge… remember the cookie dough and the cookie cutter). a. Use Gauss's Law to find an expression for the Electric Field strength for any point inside the slab (-5m...
Draw a free-body diagram of the segment 8≤x<14 m where x is in meters on paper....
Draw a free-body diagram of the segment 8≤x<14 m
where x is in meters on paper. Write expressions for the
internal shear, V, and moment, M,
over this segment. (the answer requires x)
Learning Goal: To determine all of the reactive forces and moments acting on a beam, express the shear and bending moment as functions of their positions along the beam, and construct shear and bending moment diagrams. The cantilever beam shown is subjected to a moment at A...
Shear and Bending Moment Diagrams Learning Goal: To determine the reactive forces and moments acting on...
Shear and Bending Moment Diagrams
Learning Goal:
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams.
The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is
fixed at C. Determine the reactions at the support located
at C. Then write expressions for shear and bending...
For the beam assigned to you solve a) Find the reactions, Draw the shear diagram, Draw the moment diagram b) Calculate...
For the beam assigned to you solve a) Find the reactions, Draw the shear diagram, Draw the moment diagram b) Calculate the moment of Inertia of the cross-section about its x-x neutral axis using the parallel axis theorem and compare this to the Qnesteel value. Do the two values agree? c) Determine the maximum tensile bending stress and indicate its location in the section d) Calculate the maximum shearing stresses in the cross-section and draw a profile ofthese shearing stresses...
mechanics materials To determine the reactive forces and moments acting on a beam; express the shear...
mechanics materials
To determine the reactive forces and moments acting on a beam; express the shear and bending moment as functions of their positions along the beam; and construct shear and bending moment diagrams. The cantilever beam shown is subjected to a moment at A and a distributed load that acts over segment BC, and is foxed at C. Determine the reactions at the support located at C. Then write expressions for shear and bending moment as a function of...
Draw shear force and moment diagrams
W1 2 | P = 15 kN Given: c = 1.75 m d = 5.00 m a 1.25 m b 2.00 m W1 4 kN/m w2 5 kN/m
Draw a free-body diagram of the segment 8≤x<14 m
where x is in meters on paper. Write expressions for the
internal shear, V, and moment, M,
over this segment. (the answer requires x)
Learning Goal: To determine all of the reactive forces and moments acting on a beam, express the shear and bending moment as functions of their positions along the beam, and construct shear and bending moment diagrams. The cantilever beam shown is subjected to a moment at A...
Shear and Bending Moment Diagrams
Learning Goal:
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams.
The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is
fixed at C. Determine the reactions at the support located
at C. Then write expressions for shear and bending...
For the beam assigned to you solve a) Find the reactions, Draw the shear diagram, Draw the moment diagram b) Calculate the moment of Inertia of the cross-section about its x-x neutral axis using the parallel axis theorem and compare this to the Qnesteel value. Do the two values agree? c) Determine the maximum tensile bending stress and indicate its location in the section d) Calculate the maximum shearing stresses in the cross-section and draw a profile ofthese shearing stresses...
mechanics materials
To determine the reactive forces and moments acting on a beam; express the shear and bending moment as functions of their positions along the beam; and construct shear and bending moment diagrams. The cantilever beam shown is subjected to a moment at A and a distributed load that acts over segment BC, and is foxed at C. Determine the reactions at the support located at C. Then write expressions for shear and bending moment as a function of...
