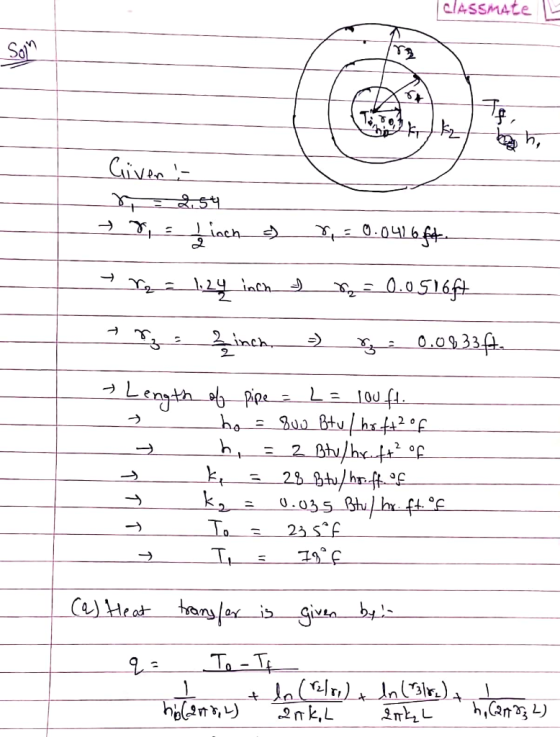

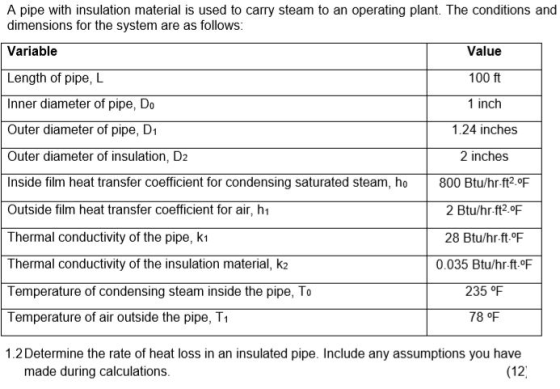

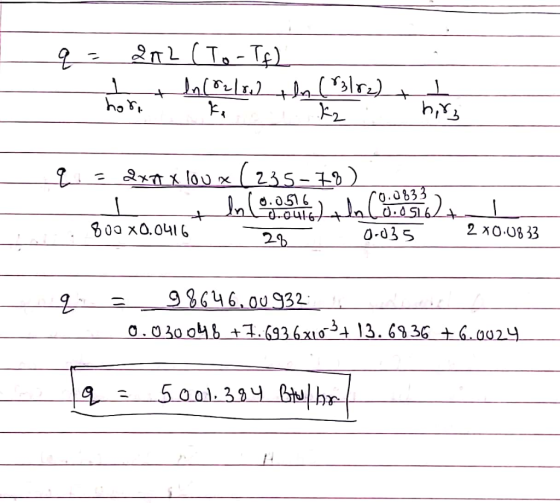

A pipe with insulation material is used to carry steam to an operating plant. The conditions...
1. A ¾ inch (nominal), Schedule 40, mild steel pipe carries 40 psia steam through a...
1. A ¾ inch (nominal), Schedule 40, mild steel pipe carries 40 psia steam through a room having an air temperature of 80°F. The pipe is covered with a 0.125 ft thick layer of fiberglass insulation having a thermal conductivity of 0.037 Btu/(h ft ‘F). The hi value on the steam side of the pipe is 1000 Btu/h ft2 °F. The ho value on the outside of the insulation is 2.0 Btu/(h ft2 ’F). For the mild steel, k=26Btu/(ft H...
Steam at 150 °C flows in a stainless steel pipe which has a thermal conductivity of...
Steam at 150 °C flows in a stainless steel pipe which has a thermal conductivity of 16 W m-1 K -1 whose inner and outer diameters are 5 and 6 cm respectively. The pipe is covered with 3 cm think insulation having a thermal conductivity of 0.035 W m-1 K -1 . The combined convection and radiation heat transfer coefficient at the outside surface of the insulation is 20 W m-2 K -1 and the surroundings are at 10 °C....
A 15-foot steel (k 7.2 Btu/h ft F) pipe is carrying steam at a temperature of...
A 15-foot steel (k 7.2 Btu/h ft F) pipe is carrying steam at a temperature of 250 F. The pipe geometry has the following dimensions: inner diameter 4" and an outer diameter 4.8". The outside surface of the pipe is cooled via convection-assume convection coefficient (h) 125 Btu/h ft2 F. If the temperature of the outer surface of the pipe is 160 F address the following: (a) develop an expression for the heat equation and associated boundary conditions and (b)...
Problem : A cryogenic flui d is flowing in a 304 SS pipe. The pipe is...
Problem
:
A cryogenic flui
d is flowing in a
304 SS
pipe.
The pipe is insulated
on its outside surface
with
6
-
mm thick,
evacuated,
aluminum foil/glass mat insulation.
(“Evacuated” means a partial vacuum is drawn on the
insulation to
remove air that would otherwise fill
pores inside the insulation.)
The pipe
inside diameter
is 127 mm; it’s outside diameter is 138 mm.
The
fluid temperature is
-
173
o
C
.
T
he
air temperature
outside the...
B Steam flows in a steel pipe, which is insulated by gypsum plaster. The inner and...
B Steam flows in a steel pipe, which is insulated by gypsum plaster. The inner and outer diameter of the pipe are 8 cm and 6 cm respectively with pipe length of 20-m. The thickness of gypsum plaster which wraps the pipe is 4 cm. The heat transfer coefficient of the inner pipe and outer insulation are 800 W/m2.°C and 200 W/m2.°C with inner pipe temperature of 200°C and outer insulator temperature of 10°C. The thermal conductivity of the pipe...
A 6 in. schedule 80 steel pipe (OD=6.62 in.) will be used to transport 450◦F steam...
A 6 in. schedule 80 steel pipe (OD=6.62 in.) will be used to transport 450◦F steam from a boiler house to a new process unit. The pipe will be buried at a depth of 3 ft (to the pipe centerline). The soil at the plant site has an average thermal conductivity of 0.4 Btu/h · ft · ◦F and the minimum expected ground surface temperature is 20◦F. Estimate the rate of heat loss per foot of pipe length for the...
A pipe made of stainless steel (k = 45 W / m*K) with an internal diameter...
A pipe made of stainless steel (k = 45 W / m*K) with an internal diameter of 5 cm and an outer diameter of 5.5 cm is carrying a fluid at a temperature of 80 °C. The heat transfer coefficient for the fluid inside the pipe is 1000 W / m2 *K. The heat transfer coefficient of the air is 5 W / m2 *K and the air at a substantial distance from the pipe is at 25 °C. At...
I. Steam at 220°C İs transported through an AISI 101 0 carbon steel pipe. The inside...
I. Steam at 220°C İs transported through an AISI 101 0 carbon steel pipe. The inside and outside diameters of the pip glass pipe insulation. e are 12 and 13 cm respectively. The pipe is wrapped with 5 cm thick cellular The ambient air temperature is 8°C. The inside and outside convection heat nts are 95 and 15 W/m2-K respectively. The thermal conductivity of the pipe is 60 W/m-K and for the insulation it is 0.072 W/m-K a. Construct the...
Problem 1. Steam at 120°C is transported in a long 8" outer diameter pipe. Its outer surface is c...
Problem 1. Steam at 120°C is transported in a long 8" outer diameter pipe. Its outer surface is covered with a 1" thick fiberglass (thermal conductivity, 0.05 W/(mK)) insulation. When the outer temperature is 0°C, the rate of condensation of steam is measured to equal 0.06 g per meter of the pipe length. Estimate the heat transfer coefficient. The heat of vaporization of the steam is 2600 J/g. The resistance to the heat transfer through the pipe wall may be...
For such aircraft application (Figure 3), a wall is made from insulation material (k-0.030 W/m.K) and...
For such aircraft application (Figure 3), a wall is made from insulation material (k-0.030 W/m.K) and the insulation material is mounted between four layers of carbon steel (2 mm thickness), the carbon layers are separated by a 2 mm air gap (kair-0.025 W/mK). Figure 3, the thermal conductivity of the carbon steel is (k-15.5 W/m.K). The temperature inside the wall is maintained at 6 °C. The environmental temperature is 24°C. The engineer would like to avoid condensation occurring at outer...
A 15-foot steel (k 7.2 Btu/h ft F) pipe is carrying steam at a temperature of 250 F. The pipe geometry has the following dimensions: inner diameter 4" and an outer diameter 4.8". The outside surface of the pipe is cooled via convection-assume convection coefficient (h) 125 Btu/h ft2 F. If the temperature of the outer surface of the pipe is 160 F address the following: (a) develop an expression for the heat equation and associated boundary conditions and (b)...
Problem
:
A cryogenic flui
d is flowing in a
304 SS
pipe.
The pipe is insulated
on its outside surface
with
6
-
mm thick,
evacuated,
aluminum foil/glass mat insulation.
(“Evacuated” means a partial vacuum is drawn on the
insulation to
remove air that would otherwise fill
pores inside the insulation.)
The pipe
inside diameter
is 127 mm; it’s outside diameter is 138 mm.
The
fluid temperature is
-
173
o
C
.
T
he
air temperature
outside the...
B Steam flows in a steel pipe, which is insulated by gypsum plaster. The inner and outer diameter of the pipe are 8 cm and 6 cm respectively with pipe length of 20-m. The thickness of gypsum plaster which wraps the pipe is 4 cm. The heat transfer coefficient of the inner pipe and outer insulation are 800 W/m2.°C and 200 W/m2.°C with inner pipe temperature of 200°C and outer insulator temperature of 10°C. The thermal conductivity of the pipe...
I. Steam at 220°C İs transported through an AISI 101 0 carbon steel pipe. The inside and outside diameters of the pip glass pipe insulation. e are 12 and 13 cm respectively. The pipe is wrapped with 5 cm thick cellular The ambient air temperature is 8°C. The inside and outside convection heat nts are 95 and 15 W/m2-K respectively. The thermal conductivity of the pipe is 60 W/m-K and for the insulation it is 0.072 W/m-K a. Construct the...
Problem 1. Steam at 120°C is transported in a long 8" outer diameter pipe. Its outer surface is covered with a 1" thick fiberglass (thermal conductivity, 0.05 W/(mK)) insulation. When the outer temperature is 0°C, the rate of condensation of steam is measured to equal 0.06 g per meter of the pipe length. Estimate the heat transfer coefficient. The heat of vaporization of the steam is 2600 J/g. The resistance to the heat transfer through the pipe wall may be...
For such aircraft application (Figure 3), a wall is made from insulation material (k-0.030 W/m.K) and the insulation material is mounted between four layers of carbon steel (2 mm thickness), the carbon layers are separated by a 2 mm air gap (kair-0.025 W/mK). Figure 3, the thermal conductivity of the carbon steel is (k-15.5 W/m.K). The temperature inside the wall is maintained at 6 °C. The environmental temperature is 24°C. The engineer would like to avoid condensation occurring at outer...
