A pipe made of stainless steel (k = 45 W / m*K) with an internal diameter...

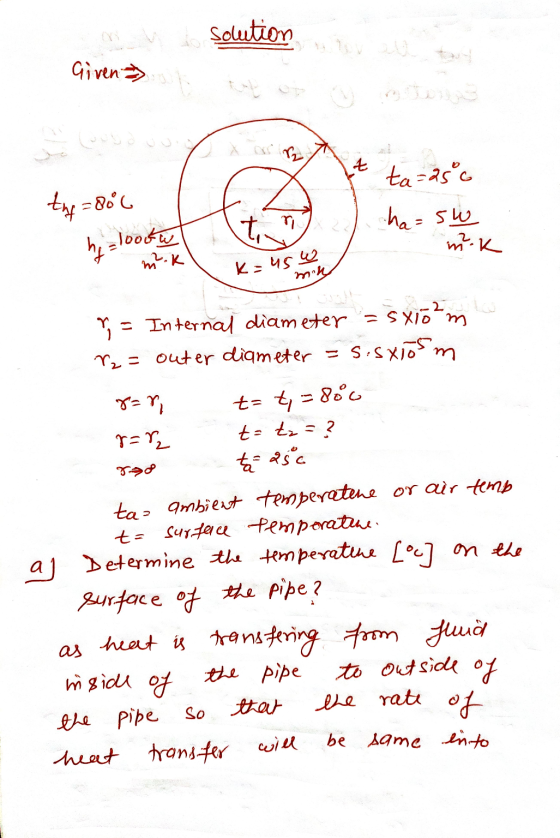

A pipe made of stainless steel (k = 45 W / m*K) with an internal diameter of 5 cm and an outer diameter of 5.5 cm is carrying a fluid at a temperature of 80 °C. The heat transfer coefficient for the fluid inside the pipe is 1000 W / m2 *K. The heat transfer coefficient of the air is 5 W / m2 *K and the air at a substantial distance from the pipe is at 25 °C.
At steady-state:

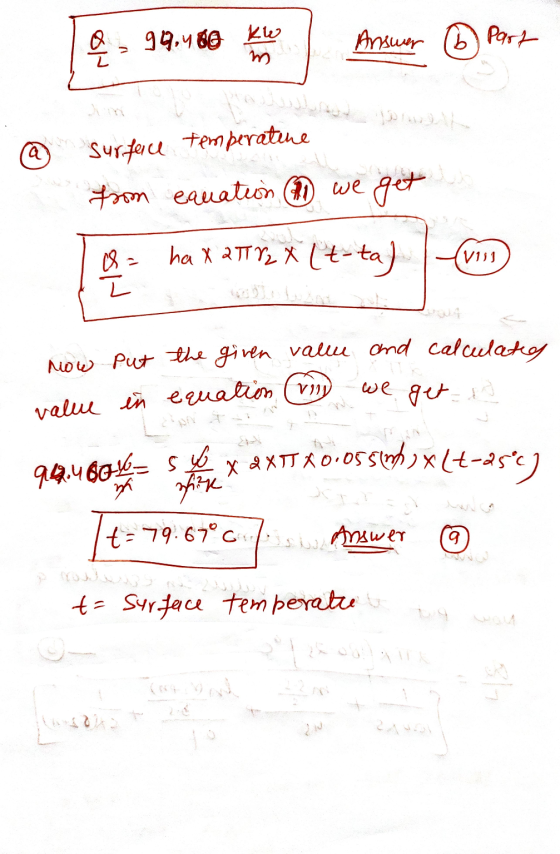

a. Determine the temperature [°C] on the surface of the pipe.

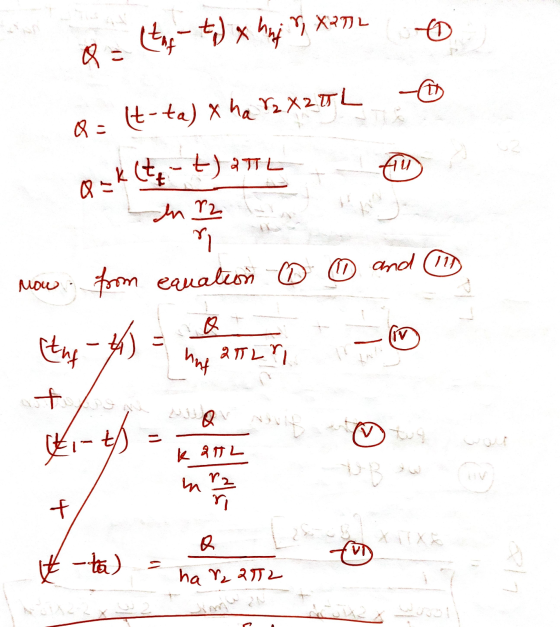

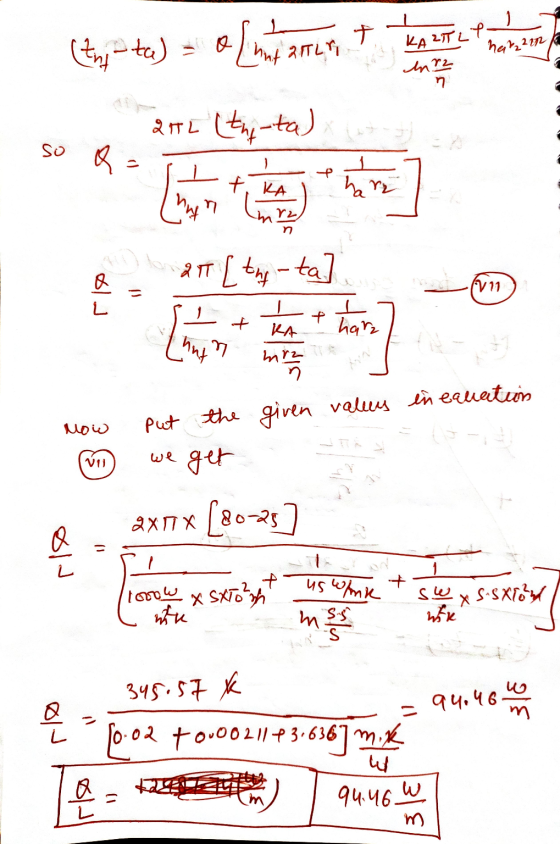

b. Determine the heat lost per meter of pipe [W / m].

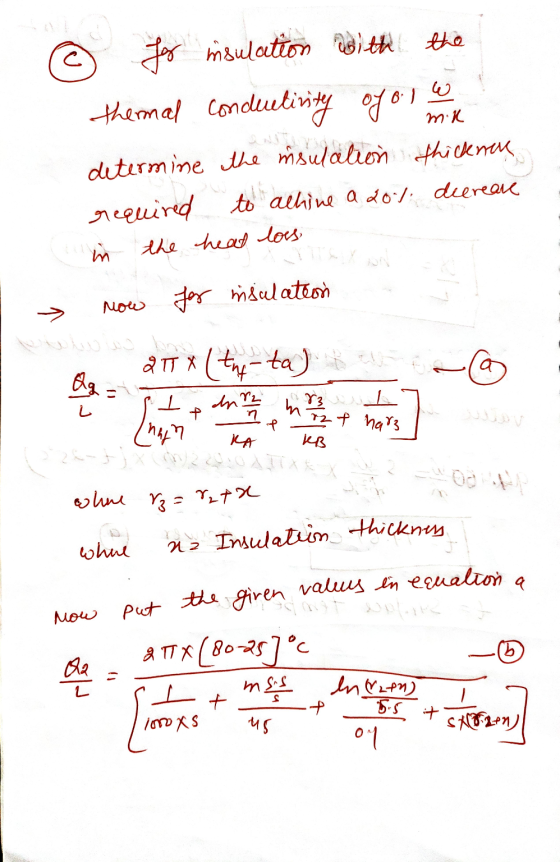

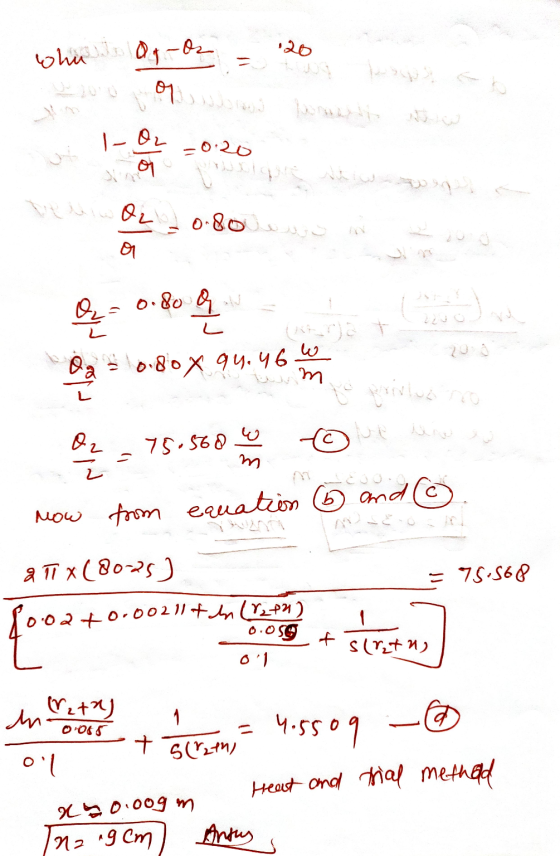

c. For insulation with a thermal conductivity of 0.1 W / m*K, determine the insulation thickness required to achieve a 20% decrease in the heat loss.

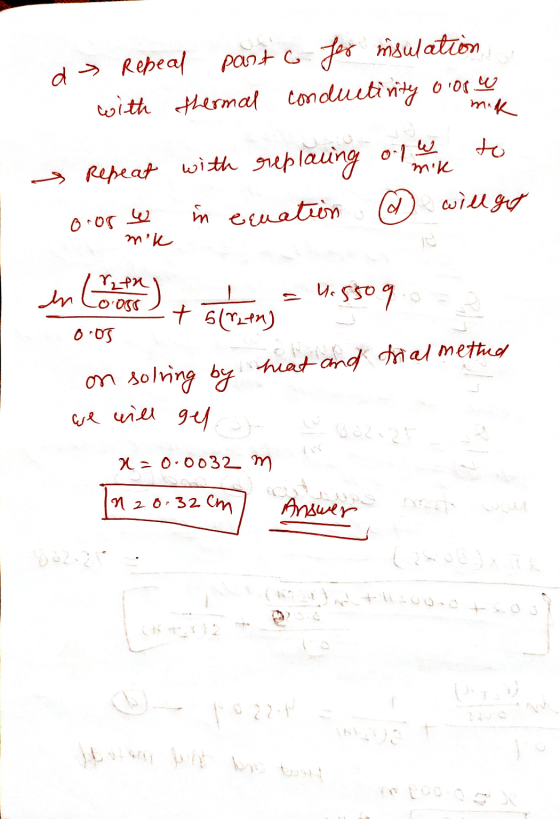

d. Repeat part c for insulation with a thermal conductivity of 0.05 W / m*K
Homework Answers
Add Answer to:
A pipe made of stainless steel (k = 45 W / m*K) with an internal
diameter...
