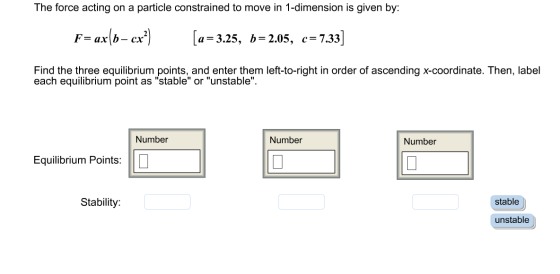

![The force acting on a particle constrained to move in 1-dimension is given by: F= ax(b- cx?) [a= 3.25, b=2.05, c=7.33] Find t](http://img.homeworklib.com/questions/3d8b50d0-d1f5-11ea-8d5f-fbdbd59810e9.png?x-oss-process=image/resize,w_560)
Homework Answers

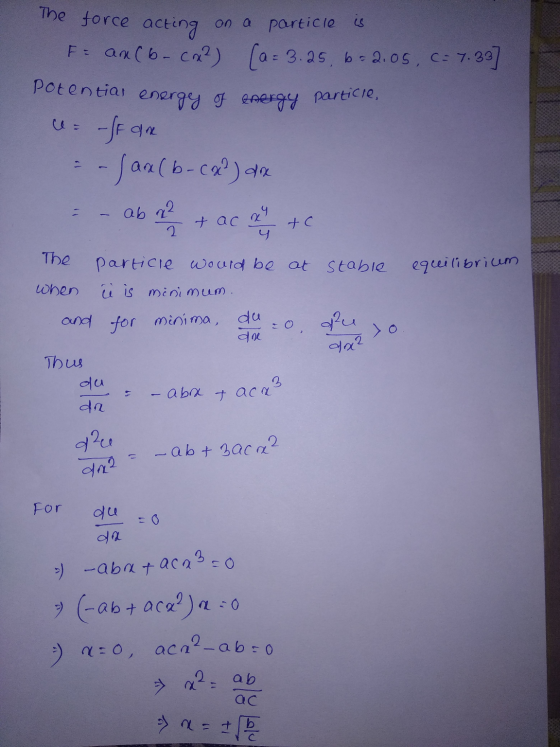

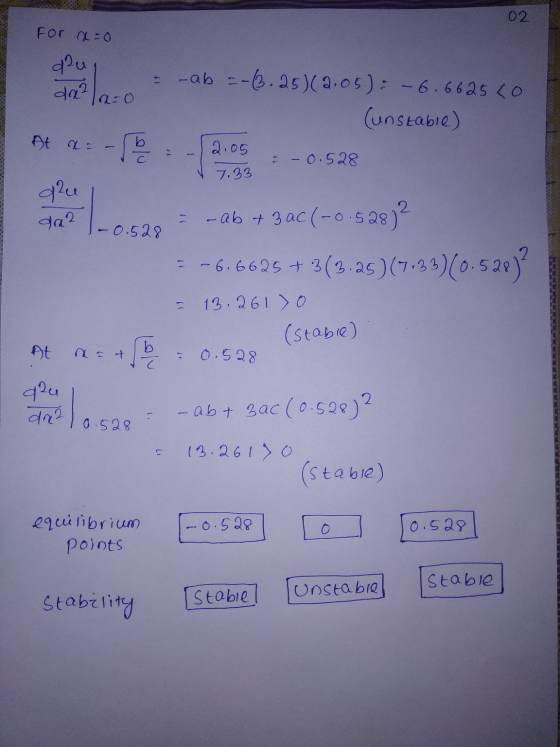

![The force acting on a particle is F = an(b- c.x2) (a= 3.25, b=2.05, C = 7.33] potential energy of energy particie, e--ff an -](http://img.homeworklib.com/questions/a46ee750-d1f6-11ea-9314-f9a98a474b7f.png?x-oss-process=image/resize,w_560)
Add Answer to:
The force acting on a particle constrained to move in 1-dimension is given by: F= ax(b-...
A particle is constrained to move along the positive x-axis under the influence of a force...
A particle is constrained to move along the positive x-axis under the influence of a force whose potential energy is U(x) = U_0(2 cos x/a - x/a) where U_0 and a are positive constants. Plot U versus x. A simple hand sketch is fine. Find the equilibrium point(s). For each equilibrium point, determine whether the equilibrium is stable or unstable.
Consider a particle with a mass m subject to a force F(x) = ax - bx3...
Consider a particle with a mass m subject to a force F(x) = ax - bx3 where x is the displacement of the origin of the reference system and a and b are positive constants. a) Find an expression of the particle's total energy. Show that this total energy is constant. b) Find the equilibrium points and determine if they are stable or unstable.
4. A particle of mass m and charge q is constrained to move along a straight...
4. A particle of mass m and charge q is constrained to move along a straight line between two point charges of equal charge Q separated by distance 2L. The sign of all three charges is the same so that the charge q is repelled by the other two particles. (a) (5 points) What is equilibrium position of charge q? Use the symmetry of the system. Is the equilibrium stable or unstable? (b) (5 points) Chose the origin of your...
The potential energy of an object constrained to move only along the x-axis is given by...
The potential energy of an object constrained to move only along the x-axis is given by U=5x^2-4x where U is in Joules and x is in meters. a. Find the force associated with this potential. b. Assuming no other forces act on the object find the equilibrium positions of the object and determine whether each is stable, unstable, or neutral.
Problem 1. (24 points) A particle of mass m moving in one dimension is subject to...
Problem 1. (24 points) A particle of mass m moving in one dimension is subject to a single conservative force with potential energy function twamions broa Listeloor stu(x) = Eo dari seoqque tenoga (1) d4 etis sauso to booga where Eo and d are positive constants. sos A (antioq 8) (0) (a) (4 points) Find the force F(x) on the particle as a function of position. lo tratto Potom odbila otvara (b) (8 points) Show that this force has equilibrium...
Analytical mechanics seventh edition p.141 3.24 let a particle of unit mass be subject to a force...
analytical mechanics seventh edition p.141 3.24 let a particle of unit mass be subject to a force x-x^3 where x is its displacement from the coordinate origin (a) Find the equilibrium points, and tell whether they are stable or unstable (b) Calculate the total energy of the particle, and show that it is a conserved quantity (c) Calculate the trajectories of the particle in phase space
A particle is moving in a potential V ) given by the figure below. (b)Λ. Sketch...
A particle is moving in a potential V ) given by the figure below. (b)Λ. Sketch approximately the phase portrait 0 <q < 10. Label regions where (a) the particle has enough energy to make it over both local maxima. (b) the particle is confined to the left of both maxima. (c) the particle is confined to the right of both maxima. (d) the particle is confined bewteen the maxima. (e) the particle has enough enough energy to make it...
Learning Goal: To be able to interpret potential energy diagrams and predict the corresponding motion of...
Learning Goal: To be able to interpret potential energy diagrams
and predict the corresponding motion of a particle. Potential
energy diagrams for a particle are useful in predicting the motion
of that particle. These diagrams allow one to determine the
direction of the force acting on the particle at any point, the
points of stable and unstable equilibrium, the particle's kinetic
energy, etc. Consider the potential energy diagram shown. (Figure
1) The curve represents the value of potential energy U...
A conservative force F(x) acts on a 2.0 kg particle that moves along an x axis....
A conservative force F(x) acts on a 2.0 kg particle that moves along an x axis. The potential energy U(x) associated with F(x) is graphed in the figure. When the particle is at x-2.0 m, its velocity is -1.4 m/s. (a) What is F(x) at this position, including sign? Between what positions on the (b) left and (c) right does the particle move? (d) what is its particle's speed at x = 7.0 m? x (m) 10 15 (a) Number...
Chapter 08, Problem 077 A conservative force F(x) acts on a 1.7 kg particle that moves...
Chapter 08, Problem 077 A conservative force F(x) acts on a 1.7 kg particle that moves along an x axis. The potential energy u(x) associated with F(x) is graphed in the figure. When the particle is at x = 2.0 m, its velocity is -1.9 m/s. (a) What is F(x) at this position, including sign? Between what positions on the (b) left and (c) right does the particle move? (d) What is its particle's speed at x = 7.0 m?...
A particle is constrained to move along the positive x-axis under the influence of a force whose potential energy is U(x) = U_0(2 cos x/a - x/a) where U_0 and a are positive constants. Plot U versus x. A simple hand sketch is fine. Find the equilibrium point(s). For each equilibrium point, determine whether the equilibrium is stable or unstable.
4. A particle of mass m and charge q is constrained to move along a straight line between two point charges of equal charge Q separated by distance 2L. The sign of all three charges is the same so that the charge q is repelled by the other two particles. (a) (5 points) What is equilibrium position of charge q? Use the symmetry of the system. Is the equilibrium stable or unstable? (b) (5 points) Chose the origin of your...
Problem 1. (24 points) A particle of mass m moving in one dimension is subject to a single conservative force with potential energy function twamions broa Listeloor stu(x) = Eo dari seoqque tenoga (1) d4 etis sauso to booga where Eo and d are positive constants. sos A (antioq 8) (0) (a) (4 points) Find the force F(x) on the particle as a function of position. lo tratto Potom odbila otvara (b) (8 points) Show that this force has equilibrium...
A particle is moving in a potential V ) given by the figure below. (b)Λ. Sketch approximately the phase portrait 0 <q < 10. Label regions where (a) the particle has enough energy to make it over both local maxima. (b) the particle is confined to the left of both maxima. (c) the particle is confined to the right of both maxima. (d) the particle is confined bewteen the maxima. (e) the particle has enough enough energy to make it...
Learning Goal: To be able to interpret potential energy diagrams
and predict the corresponding motion of a particle. Potential
energy diagrams for a particle are useful in predicting the motion
of that particle. These diagrams allow one to determine the
direction of the force acting on the particle at any point, the
points of stable and unstable equilibrium, the particle's kinetic
energy, etc. Consider the potential energy diagram shown. (Figure
1) The curve represents the value of potential energy U...
A conservative force F(x) acts on a 2.0 kg particle that moves along an x axis. The potential energy U(x) associated with F(x) is graphed in the figure. When the particle is at x-2.0 m, its velocity is -1.4 m/s. (a) What is F(x) at this position, including sign? Between what positions on the (b) left and (c) right does the particle move? (d) what is its particle's speed at x = 7.0 m? x (m) 10 15 (a) Number...
Chapter 08, Problem 077 A conservative force F(x) acts on a 1.7 kg particle that moves along an x axis. The potential energy u(x) associated with F(x) is graphed in the figure. When the particle is at x = 2.0 m, its velocity is -1.9 m/s. (a) What is F(x) at this position, including sign? Between what positions on the (b) left and (c) right does the particle move? (d) What is its particle's speed at x = 7.0 m?...
