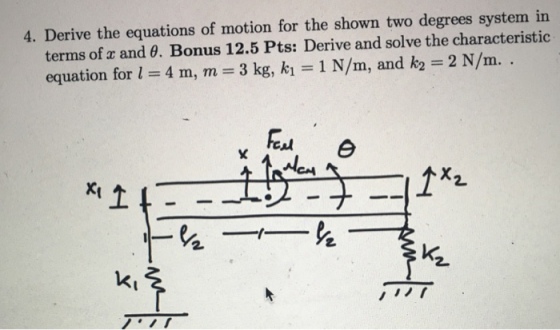

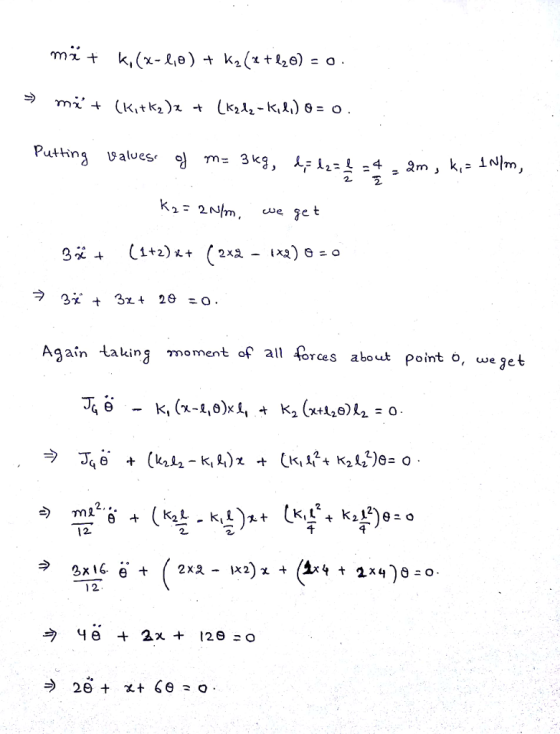

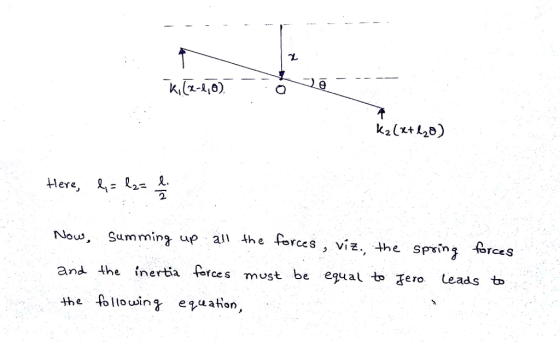

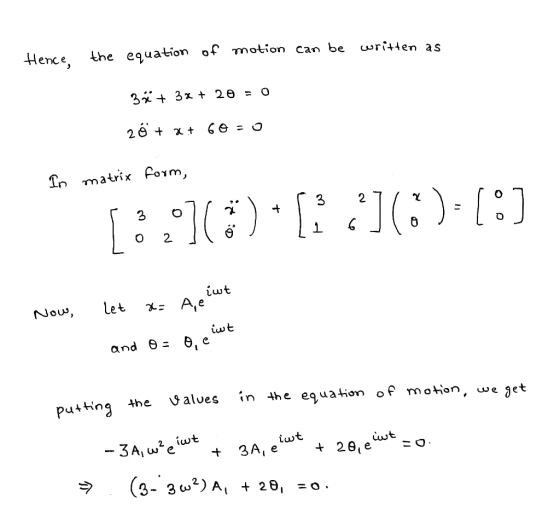

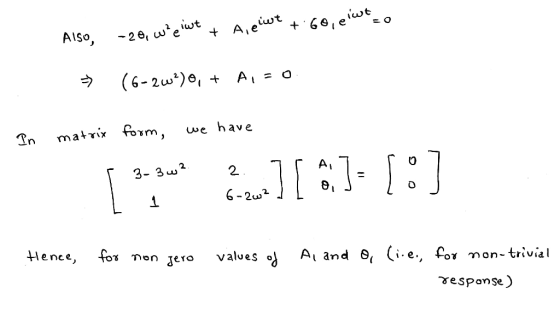

4. Derive the equations of motion for the shown two degrees system in terms of x...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

- Derive the equations of motion of the system in terms of variables m and K...

- Derive the equations of motion of the system in terms of variables m and K and express them in matrix notation. Finally, express the equations of motion numerically in matrix notations if the stiffness and mass coefficients are k = 1 kip/in and m = 0.15 kip-sec? / in. Use X1, X2, and X: as degrees of freedom. (20 pts) X2 X 3m
1. For the system shown in Figure 1. in determine the equations of motion taking degrees...

1. For the system shown in Figure 1. in determine the equations of motion taking degrees of freedom 01,02, X3, moment of inertia of slender rod about the center is 1G = m (10 points). 3 to m ki . > K2 Figure 1 Figure 1
M[kg] CN) ( 1. Derive the differential equations of motion for the system (two degrees of...

M[kg] CN) ( 1. Derive the differential equations of motion for the system (two degrees of freedom). Let the angle 9 be small. A (4] 6 [Na] e mikg]

1. Derive the equations of motion of the system shown in Fig 1 by using Lagrange's...

1. Derive the equations of motion of the system shown in Fig 1 by using Lagrange's equations. Find the natural frequencies and mode shapes of the dynamical system for k 1 N/m, k-2 N/m, k I N/m, and mi 2 kg, m l kg, m -2 kg. scale the eigenvectors matrix Ф in order to achieve a mass normalized eigenvectors matrix Φ such that: F40 Fan Fig. 1
1 1 2 m2 1. Consider the system above. Derive the equation of motion and calculate the mass and s...

Please provide any MATLAB code you used for plotting. 1 1 2 m2 1. Consider the system above. Derive the equation of motion and calculate the mass and stiffness matrices. a) Calculate the characteristic equation forthe case m 9 kg m 1 kg k 24 N/m k2 3 N/mk3- 3 N/m and solve for the system's natural frequencies. b.) Calculate the eigenvectors u1 and u2 c.) Calculate xi(t) and x2(t), given x2(0)-1 mm, and xi(0) - vz(0) -vi(0) 0 d.)...
1. Please derive the equation of motion of the system shown below. Assumptions: The bar is...

1. Please derive the equation of motion of the system shown below. Assumptions: The bar is massless, the angle of rotation is small, and m is a point-mass. [30 marks] ki OW0000 k2 Figure 1

M1 m2 Figure 1: 2dof 1. Consider the system above. Derive the equation of motion and calculate th...

m1 m2 Figure 1: 2dof 1. Consider the system above. Derive the equation of motion and calculate the mass and stiffness matrices Note that setting k30 in your solution should result in the stiffness matrix given by Eq. (4.9). a. Calculate the characteristic equation from problem 4.1 for the case m1-9 kg m2-1 kg ki-24 N/m 2 3 N/m k 3 N/m and solve for the system's natural frequencies. b. Calculate the eigenvectors u1 and u2. c. Calculate 띠(t) and...
3(a). Find the equations of motion for the system shown below. The system is two degree...

3(a). Find the equations of motion for the system shown below. The system is two degree of freedom system with degrees of freedom X, and X2. Please find two equations of motion for this dynamical system by both Newtons method and Euler Lagrange. The point with which the spring is attached with the wall has zero displacement indeed) x X2 m2 ki kr Frictionless surfaces on which masses are resting Springs can be assumed to be massless Formulas: Formula to...
Derive the equation of motion of the system below as a function of ki, k2, m,...

Derive the equation of motion of the system below as a function of ki, k2, m, 12, 13 and c. 2 k2 t Rigid Massless Link

2. For the following 3-DOF spring-mass system: (a) Derive the equations of motion. (b) Assuming ki-k2-k3-k...

2. For the following 3-DOF spring-mass system: (a) Derive the equations of motion. (b) Assuming ki-k2-k3-k and mi-m2-m3-m, determine the natural frequencies and mode shapes. rt
