In this exercise, you’ll upgrade a version of the MPG application so the error messages are displayed in span elements to the right of the text boxes.

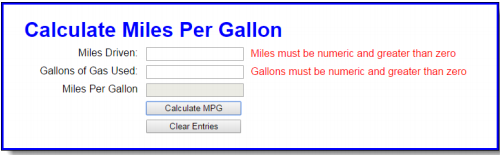

Calculate Miles Per Gallon Miles Driven: Miles must be numeric and greater than zero Gallons must be numeric and greater than zero Gallons of Gas Used: Miles Per Gallon Calculate MPG Clear Entries

Open the HTML and JavaScript files in this folder: exercises_short\ch06\mpg\

Then, run the application and click the Calculate MPG button to see that an error message is displayed in an alert dialog box for each of the two input fields.

2. In the HTML file, add a span element after the input element for the first two text boxes.

3. Enhance the data validation so it displays the error messages in the span elements instead of in alert dialog boxes.

4. If the user entries are valid, clear the contents of the span elements.

5. If the user clicks the Clear Entries button, set the contents of each span element to an asterisk.

Current code:

HTML

<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>Calculate MPG</title>
    <link rel="stylesheet" href="mpg.css">
    <script src="mpg.js"></script>
</head>
<body>
    <main>
        <h1>Calculate Miles Per Gallon</h1>
        <label for="miles">Miles Driven:</label>
      <input type="text" id="miles"><br>
        <label for="gallons">Gallons of Gas Used:</label>
        <input type="text" id="gallons"><br>
        <label for="mpg">Miles Per Gallon</label>
        <input type="text" id="mpg" disabled><br>
        <label>&nbsp;</label>
        <input type="button" id="calculate" value="Calculate MPG"><br>
        <label>&nbsp;</label>
        <input type="button" id="clear" value="Clear Entries"><br>
    </main>
</body>
</html>

mpg.js

"use strict";
var $ = function(id) {
    return document.getElementById(id);
};
function calculateMpg(miles, gallons) {
   var mpg = (miles / gallons);
   mpg = mpg.toFixed(1);
   return mpg;
};
var processEntries = function() {
    var miles = $("miles").value;
    var gallons = $("gallons").value;
    var isValid = true;

    if (isNaN(miles) || miles <= 0) {
        alert("Miles must be numeric and greater than zero");
        isValid = false;
    }
    if (isNaN(gallons) || gallons <= 0) {
           alert("Gallons must be numeric and greater than zero");
           isValid = false;
    }
    if (isValid) {
        $("mpg").value = calculateMpg(miles, gallons);
    }
};
var clearEntries = function() {
   $("miles").value = "";
   $("gallons").value = "";
   $("mpg").value = "";
};
window.onload = function() {
    $("calculate").onclick = processEntries;
    $("clear").onclick = clearEntries;
   $("miles").ondblclick = clearEntries;
    $("miles").focus();
};

CSS:

body {
    font-family: Arial, Helvetica, sans-serif;
    background-color: white;
    margin: 0 auto;
    width: 700px;
   padding: 0 2em 1em;
    border: 3px solid blue;
}
h1 {
   color: blue;
   margin-bottom: .25em;
}
label {
   float: left;
    width: 11em;
    text-align: right;
}
input {
    margin-left: 1em;
   margin-right: .5em;
    margin-bottom: .5em;
    width: 11em;
}
span {
   color: red;
}
engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Dear Student ,

As per requirement submitted above kindly find below solution.

Here new web page with name "mpg.html" is created which contains below code.

mpg.html :

<!DOCTYPE html>

<html>

<head>

    <meta charset="UTF-8">

    <!-- title for web page -->

    <title>Calculate MPG</title>

    <!-- link is used for stylesheet -->

    <link rel="stylesheet" href="mpg.css">

    <!-- script is used for javascript -->

    <script src="mpg.js"></script>

</head>

<body>

    <main>

        <h1>Calculate Miles Per Gallon</h1>

        <label for="miles">Miles Driven:</label>

      <input type="text" id="miles">

      <!-- span to display error message -->

      <span id="milesError"></span><br>

        <label for="gallons">Gallons of Gas Used:</label>

        <input type="text" id="gallons">

         <!-- span to display error message -->

      <span id="gallonsError"></span><br>

        <label for="mpg">Miles Per Gallon</label>

        <input type="text" id="mpg" disabled><br>

        <label>&nbsp;</label>

        <input type="button" id="calculate" value="Calculate MPG"><br>

        <label>&nbsp;</label>

        <input type="button" id="clear" value="Clear Entries"><br>

    </main>

</body>

</html>

**********************************

mpg.css :

body {

    font-family: Arial, Helvetica, sans-serif;

    background-color: white;

    margin: 0 auto;

    width: 700px;

   padding: 0 2em 1em;

    border: 3px solid blue;

}

h1 {

   color: blue;

   margin-bottom: .25em;

}

label {

   float: left;

    width: 11em;

    text-align: right;

}

input {

    margin-left: 1em;

   margin-right: .5em;

    margin-bottom: .5em;

    width: 11em;

}

span {

   color: red;

}

*********************************

mpg.js :

"use strict";

var $ = function(id) {

    return document.getElementById(id);

};

function calculateMpg(miles, gallons) {

   var mpg = (miles / gallons);

   mpg = mpg.toFixed(1);

   return mpg;

};

var processEntries = function() {

    var miles = $("miles").value;

    var gallons = $("gallons").value;

    var isValid = true;

    if (isNaN(miles) || miles <= 0) {

        //display error message on the span

        $("milesError").innerHTML="Miles must be numeric and greater than zero";

        isValid = false;

    }

    if (isNaN(gallons) || gallons <= 0) {

         //display error message on the span

        $("gallonsError").innerHTML="Gallons must be numeric and greater than zero";

           isValid = false;

    }

    if (isValid) {

        $("mpg").value = calculateMpg(miles, gallons);

    }

};

var clearEntries = function() {

   $("miles").value = "";

   $("gallons").value = "";

   $("mpg").value = "";

  $("milesError").innerHTML="";//used to clear span

   $("gallonsError").innerHTML="";//used to clear span

};

window.onload = function() {

    $("calculate").onclick = processEntries;

    $("clear").onclick = clearEntries;

   $("miles").ondblclick = clearEntries;

    $("miles").focus();

};

==================================

Output :Open web page mpg.html in the browser and will get the screen as shown below.

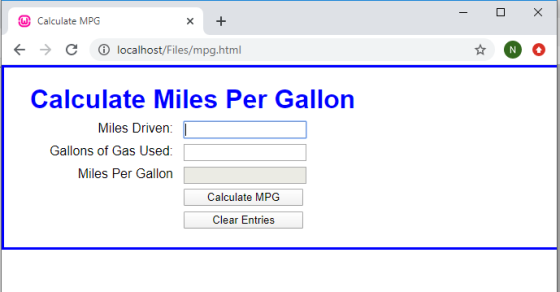

Screen 1:mpg.html

- O X W Calculate MPG * + localhost/Files/mpg.html € → Calculate Miles Per Gallon Miles Driven: Gallons of Gas Used Miles Per

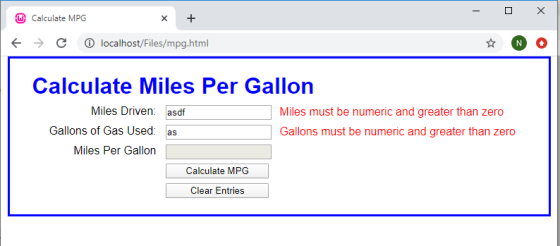

Screen 2:Screen when invalid entries are entered

- 0 w Calculate MPG x x + localhost/Files/mpg.html + + c Calculate Miles Per Gallon Miles must be numeric and greater than ze

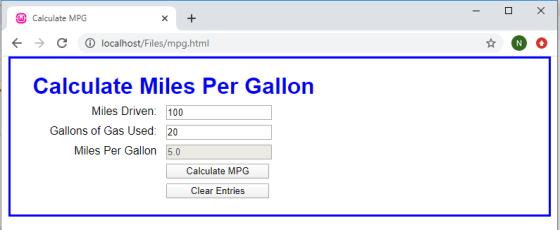

Screen 3:Screen showing Miles Per Gallon

- 0 X w Calculate MPG * + localhost/Files/mpg.html + + c Calculate Miles Per Gallon Miles Driven: 100 Gallons of Gas Used: 20

NOTE :PLEASE FEEL FREE TO PROVIDE FEEDBACK ABOUT THE SOLUTION.
