Question

One end of a meter stick is pinned to a table, so the stick can rotate freely in a plane parallel to the tabletop. Two forces, both parallel to the tabletop, are applied to the stick in such a way that the net torque is zero. The first force has a magnitude of 2.00 N and is applied perpendicular to the length of the stick at the free end. The second force has a magnitude of 6.00 N and acts at a 30.0 degree angle with respect to the length of the stick. Where along the stick is the 6.00-N force applied? Express this distance with respect to the end of the stick that is pinned. The drawing shows a person (weight, W = 584 N) doing push-ups. Find the normal force exerted by the floor on each hand and each foot, assuming that the person holds this position. A hiker, who weighs 985 N, is strolling through the woods and crosses a small horizontal bridge. The bridge is uniform, weighs 3610 N, and rests on two concrete supports, one at each end. He stops one-fifth of the way along the bridge. What is the magnitude of the force that a concrete support exerts on the bridge (a) at the near end and (b) at the far end? Workers have loaded a delivery truck in such a way that its center of gravity is only slightly forward of the rear axle, as shown in the drawing. The mass of the truck and its contents is 7460 kg. Find the magnitudes of the forces exerted by the ground on (a) the front wheels and (b) the rear wheels of the truck.

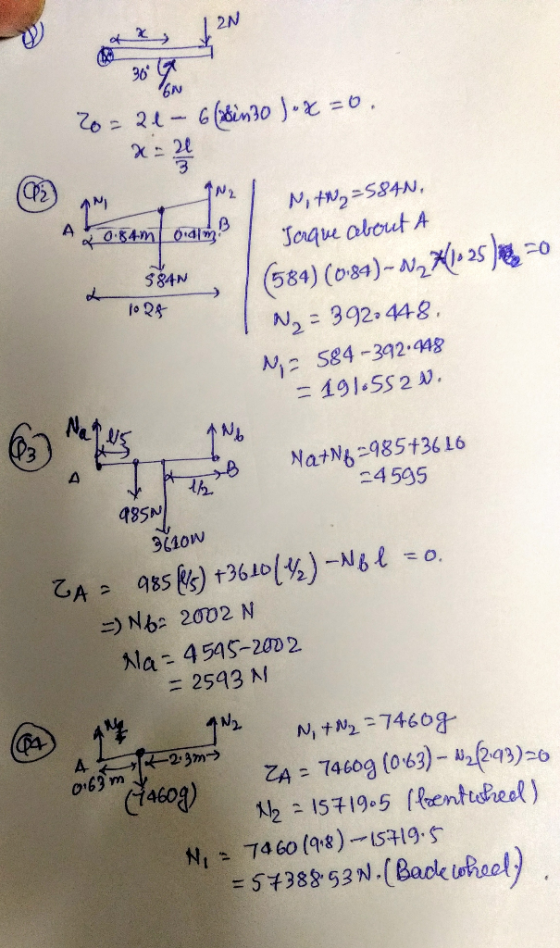

Answer 1
