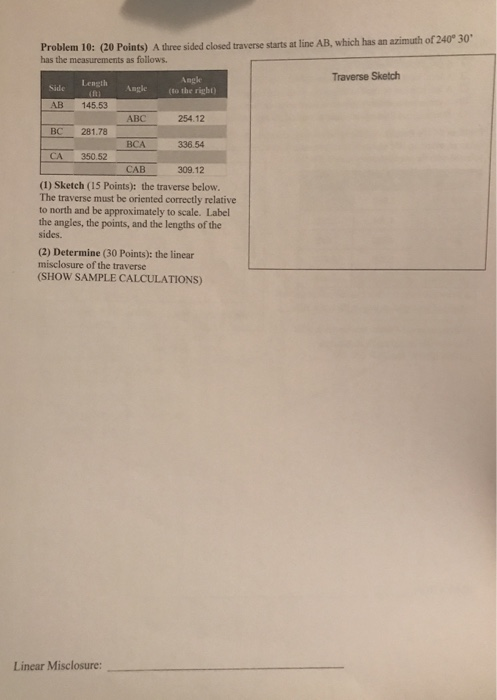

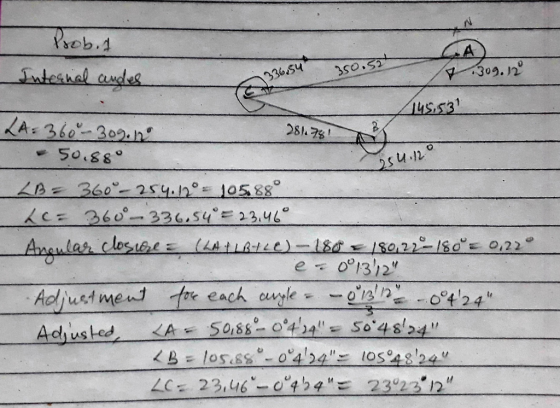

10: (20 Points) A three sided closed traverse starts at line AB, which has an azimuth...
solve #6 1. Balance the following interior angles (angles to the right) of five sided closed...
solve #6
1. Balance the following interior angles (angles to the right) of five sided closed polygon traverse. If the azimuth of side AB is fixed at 218 59 30, calculate the azimuths of the remaining sides. A-132°47 06, B-108"46 18, C= 107。19 37, D-81.50 36. E-109.16 18, (Note: Line BC bears SE) Compute departure and latitudes, linear misclosure and relative precision for the traverse of problem above, if the length of the side (in feet) are as follows: AB...
The observed lengths of the sides (in feet) of a five-sided closed polygon traverse are as...
The observed lengths of the sides (in feet) of a five-sided closed polygon traverse are as follows: AB=201.74 , BC=283.87 , CD=494.37, DE=314.33 , and EA=385.78. (Note: Assume units of feet for all distances.) The preliminary azimuths obtained after balancing the angles are as follows: AB=218∘59′30′′, BC=147∘45′49′′, CD=75∘05′27′′, DE=336∘56′04′′, EA=266∘12′23′′ Compute the departures of the sides. Express your answers, separated by commas, to five significant figures. Compute the latitudes of the sides. Express your answers, separated by commas, to five...
Question 5 The four-sided, closed traverse has the following angles and distances: Az. 306 31 A...
Question 5 The four-sided, closed traverse has the following angles and distances: Az. 306 31 A 38° 30 B 100 38' C 149° 50 D 85° 59 E 165 03 AB 371.006 m BC 110.222 m CD 139.872 m AB 103.119 m AB 319.860 m Side AB has an azimuth of 306 31' (a) Perform the angle check and correct internal angles as needed. (b) Compute both bearings and azimuths for all sides (c) Compute the latitudes and departures for...
solve #6
1. Balance the following interior angles (angles to the right) of five sided closed polygon traverse. If the azimuth of side AB is fixed at 218 59 30, calculate the azimuths of the remaining sides. A-132°47 06, B-108"46 18, C= 107。19 37, D-81.50 36. E-109.16 18, (Note: Line BC bears SE) Compute departure and latitudes, linear misclosure and relative precision for the traverse of problem above, if the length of the side (in feet) are as follows: AB...
Question 5 The four-sided, closed traverse has the following angles and distances: Az. 306 31 A 38° 30 B 100 38' C 149° 50 D 85° 59 E 165 03 AB 371.006 m BC 110.222 m CD 139.872 m AB 103.119 m AB 319.860 m Side AB has an azimuth of 306 31' (a) Perform the angle check and correct internal angles as needed. (b) Compute both bearings and azimuths for all sides (c) Compute the latitudes and departures for...
