The observed lengths of the sides (in feet) of a five-sided closed polygon traverse are as...

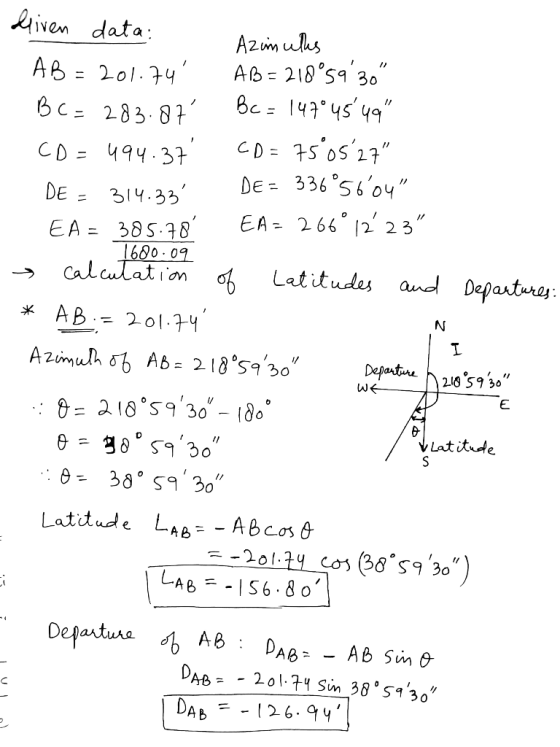

The observed lengths of the sides (in feet) of a five-sided closed polygon traverse are as follows:
AB=201.74 , BC=283.87 , CD=494.37, DE=314.33 , and EA=385.78. (Note: Assume units of feet for all distances.)
The preliminary azimuths obtained after balancing the angles are as follows:
AB=218∘59′30′′, BC=147∘45′49′′, CD=75∘05′27′′, DE=336∘56′04′′, EA=266∘12′23′′

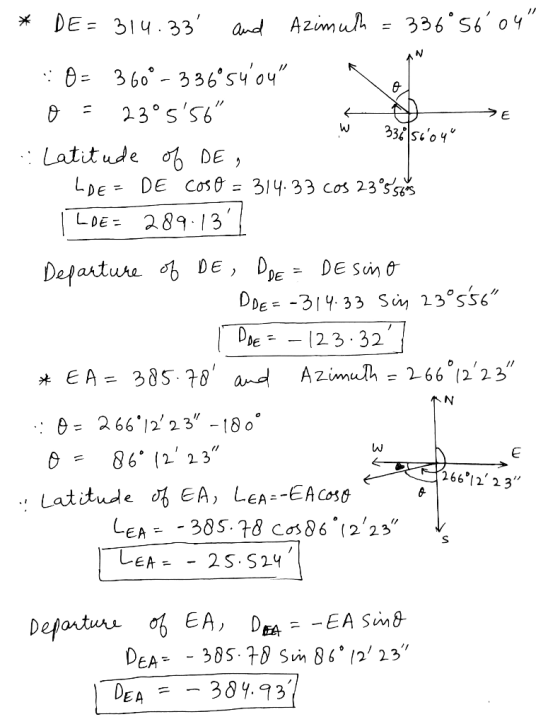

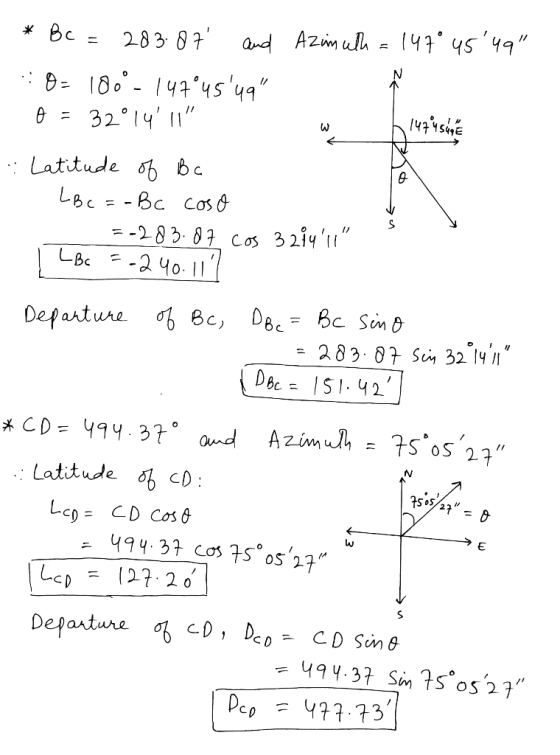

Compute the departures of the sides.
Express your answers, separated by commas, to five significant figures.
Compute the latitudes of the sides.
Express your answers, separated by commas, to five significant figures.

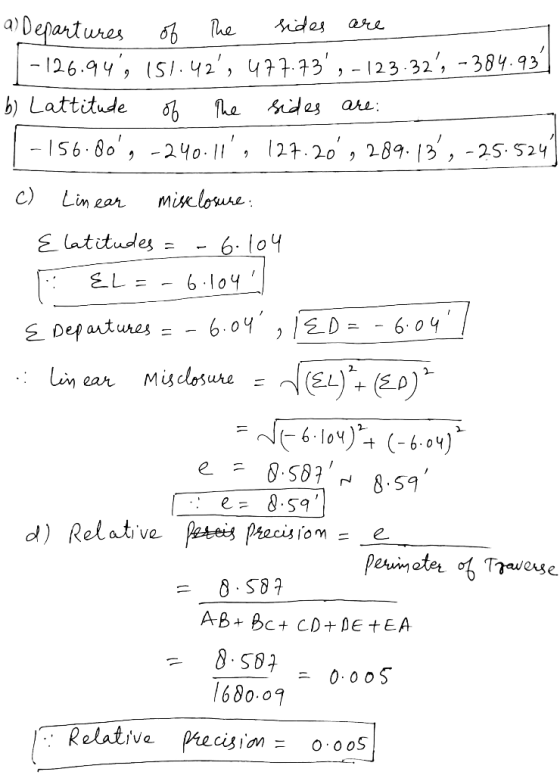

Compute the linear misclosure.
Express your answer to three significant figures.
Compute the relative precision.
Express your answer to three significant figures.
Homework Answers
