Homework Answers
Add Answer to:

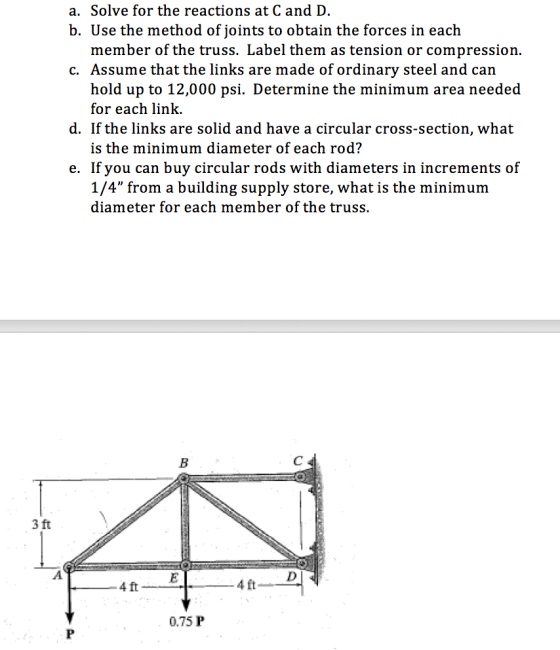

assume P=10,000 Ib

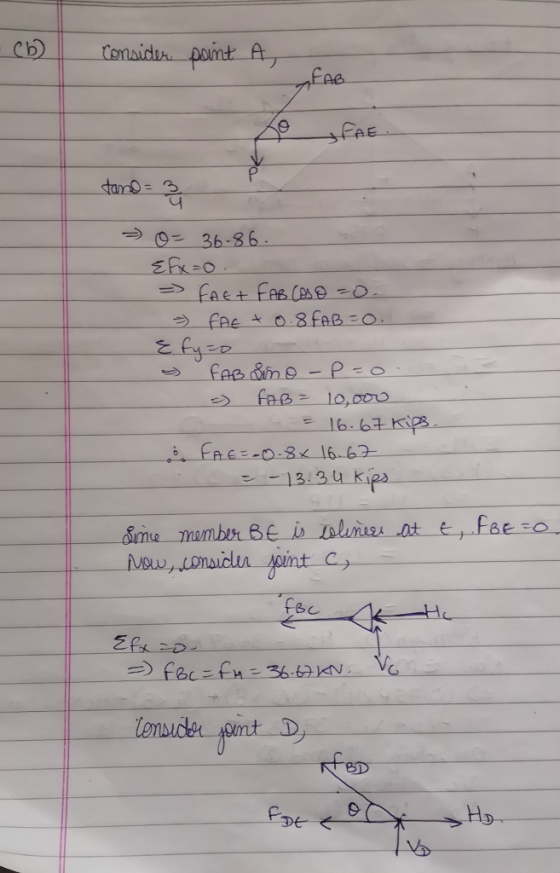

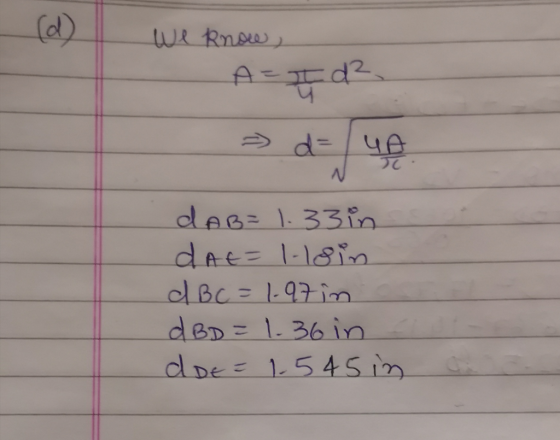

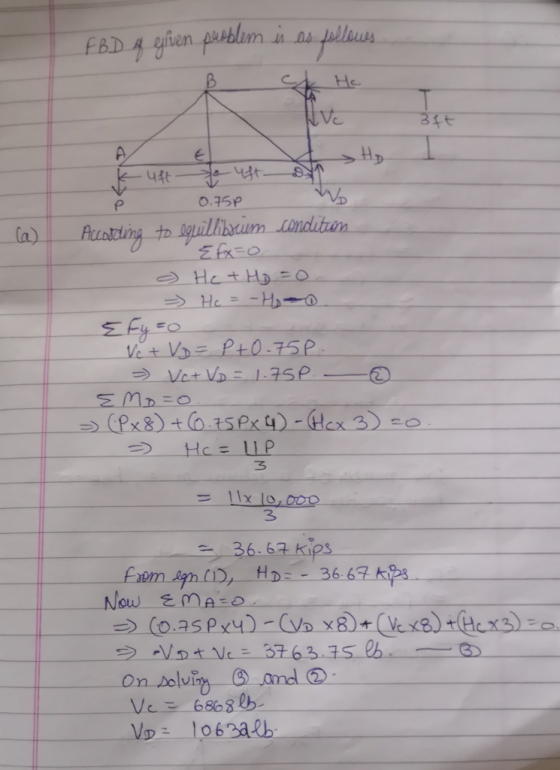

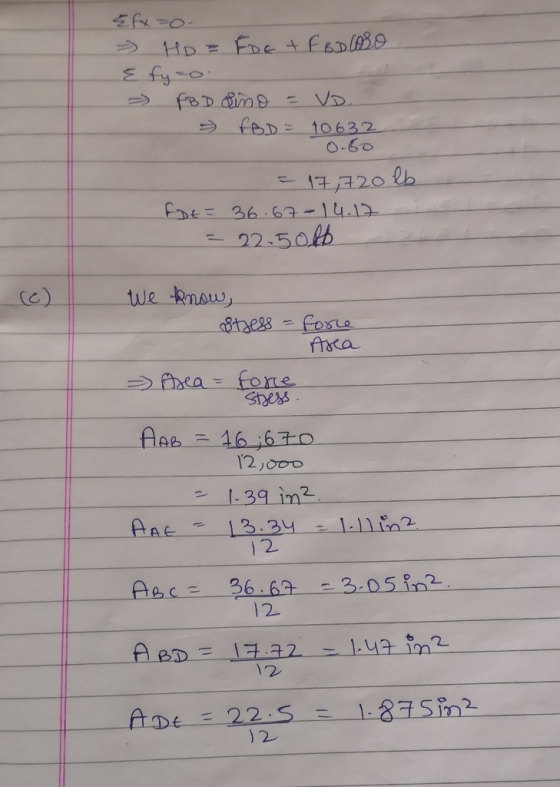

a. Solve for the reactions at Cand D. b. Use the method of...
Problem 4 Member A is a steel rod with circular cross-section. The modulus of elasticity is...
Problem 4 Member A is a steel rod with circular cross-section. The modulus of elasticity is 29000 ksi. Member B is very stiff compared to Member A, so ignore its deformations. a. Set up the virtual force system for vertical displacements DEAD 20K LIVE 10 k at Node 2. Determine the minimum diameter of rod that can be used if the deflection due to live load cannot exceed 0.5 in Assume that rods are available in 1/8 in. increments, such...
Homework Problem H 7.E Consider the truss shown below with the loading on joints D, K, S and U. Given: Find: For this p...
Homework Problem H 7.E Consider the truss shown below with the loading on joints D, K, S and U. Given: Find: For this problem: a) Determine the external reactions acting on the truss at supports A and H b) Identify all zero-force members in the truss. c) Determine the load carried by members BC, CJ and MN. Identify each member as either being in tension, in compression or carrying zero load. For this problem, use the following parameters: h 30...
Designing a truss bridge This lab involves the design of a truss bridge, which is a...
Designing a truss bridge This lab involves the design of a truss bridge, which is a Pratt truss and should be designed to handle the loads shown in Fig- ure l (1 kip = 1000 lb). Note that the loads are the same on each of the two trusses for the bridge, so what is in Figure 1 is only half the loading on the bridge. Your job is to develop an optimal design for the bridge, Figure 1. Schematic...
The below truss is made from three bars of the same steel material, all of which...
The below truss is made from three bars of the same steel material, all of which have circular cross sections with different diameters. The Young modulus of steel is E= 200 GPa, and yield stress of steel is Gyöeld=200 MPa (in both tension and compression). The force P=7 kN is applied at point C as shown (see Figure 4). All bars are pin connected at their ends. (a) Determine the minimum diameter of the bars so that buckling will not...
I need help with the manual calculations. I need to solve via “the pitch” method. Thank...
I need help with the manual calculations. I need to solve via “the
pitch” method. Thank you
The truss is to be analyzed assuming the two loads shown are each 80 kips. By analyzed I mean that reactions at supports are to be determined and the forces (magnitude and sense) acting internally in each member are to be determined. Once forces are known, the members are to be "designed" -that is, the cross sectional area required determined-based on the following...
uSE THE SUM OF MOMENTS METHOD TO DETERMINE ALL OF THE REACTIONS AT POINTS A B 10. 12 POINTS) P 2300 LBS Problem THI...
uSE THE SUM OF MOMENTS METHOD TO DETERMINE ALL OF THE REACTIONS AT POINTS A B 10. 12 POINTS) P 2300 LBS Problem THIS 1IS AN OVERHANG AT THE ENTRY TO A RIDE AT DISNEY WORLD. A DIMENSIONAL SIGN SITS ON TOP OF THE LEADING EDGE OF THE STRUCTURE. IT HAS A RIGID BRACKET WHICH ANGLES BACK TO THE WALL FOR SUPPORT. A (PIN) IDENTIFY THE TWO-FORCE MEMBERS THEN SOLVE FOR ALL REACTIONS AT POINTS A AND B (PIN) EXTRA...
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum...
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum allowed in each beam is 400lb in tension and 600lb in compression, determine the maximum of admissible load P. 2 ft 2 ft Exercise V: 40 PT 1.6 kN 200 _ 400 mm + 45 The angle strut is welded to...
(a) Warren truss (b) Howe truss (c) Pratt truss (d) Baltimore truss (e) Parker truss Figure...
(a) Warren truss (b) Howe truss (c) Pratt truss (d) Baltimore truss (e) Parker truss Figure 2: Truss Types (Nielson Text) The truss bridge has the following properties/characteristics: 1. Span length (bottom chord): 168 ft 2. 14 panels (12 ft length per panel) 3. All diagonals are 45 degrees 4. Simple truss (all members are pin-connected and loads are only applied at the joints) 5. Simply-supported (pin at one end, roller at the other) 6. 13 ft width between trusses...
For the beam shown, assume that ET-130 ,000 kip-ft2, P = 80 kips, and w = 4.5 kips/ft. Use discontinuity functions to determine (a) the reactions at A, C, and D (b) the beam deflection at B Assume LA...
For the beam shown, assume that ET-130 ,000 kip-ft2, P = 80 kips, and w = 4.5 kips/ft. Use discontinuity functions to determine (a) the reactions at A, C, and D (b) the beam deflection at B Assume LAB = LBC = 9.0 ft, LCD = 18.0 ft. AB CD Sum the forces in the y direction to find an expression that includes the reaction forces Ay, Cy, and Dy acting on the beam. Positive values for the reactions are...
use following to solve 3) Using an order of magnitude method (Hill), estimate the TCI in...
use following to solve
3) Using an order of magnitude method (Hill), estimate the TCI in year 2006 dollars for a grass-roots plant with 100,000-lb annual production using an order-of-magnitude method based on a 10,000-lb annual production. The plant contains three 1200-ft/min centrifugal fans, five 1500-ft/min centrifugal blowers, seven 100-ft' centrifugal separators, and two 100-ft shell-and-tube heat exchangers. You may assume all materials are carbon steel, the materials handled are primarily solid, and that this plant construction is done fully...
Problem 4 Member A is a steel rod with circular cross-section. The modulus of elasticity is 29000 ksi. Member B is very stiff compared to Member A, so ignore its deformations. a. Set up the virtual force system for vertical displacements DEAD 20K LIVE 10 k at Node 2. Determine the minimum diameter of rod that can be used if the deflection due to live load cannot exceed 0.5 in Assume that rods are available in 1/8 in. increments, such...
Homework Problem H 7.E Consider the truss shown below with the loading on joints D, K, S and U. Given: Find: For this problem: a) Determine the external reactions acting on the truss at supports A and H b) Identify all zero-force members in the truss. c) Determine the load carried by members BC, CJ and MN. Identify each member as either being in tension, in compression or carrying zero load. For this problem, use the following parameters: h 30...
Designing a truss bridge This lab involves the design of a truss bridge, which is a Pratt truss and should be designed to handle the loads shown in Fig- ure l (1 kip = 1000 lb). Note that the loads are the same on each of the two trusses for the bridge, so what is in Figure 1 is only half the loading on the bridge. Your job is to develop an optimal design for the bridge, Figure 1. Schematic...
The below truss is made from three bars of the same steel material, all of which have circular cross sections with different diameters. The Young modulus of steel is E= 200 GPa, and yield stress of steel is Gyöeld=200 MPa (in both tension and compression). The force P=7 kN is applied at point C as shown (see Figure 4). All bars are pin connected at their ends. (a) Determine the minimum diameter of the bars so that buckling will not...
I need help with the manual calculations. I need to solve via “the
pitch” method. Thank you
The truss is to be analyzed assuming the two loads shown are each 80 kips. By analyzed I mean that reactions at supports are to be determined and the forces (magnitude and sense) acting internally in each member are to be determined. Once forces are known, the members are to be "designed" -that is, the cross sectional area required determined-based on the following...
uSE THE SUM OF MOMENTS METHOD TO DETERMINE ALL OF THE REACTIONS AT POINTS A B 10. 12 POINTS) P 2300 LBS Problem THIS 1IS AN OVERHANG AT THE ENTRY TO A RIDE AT DISNEY WORLD. A DIMENSIONAL SIGN SITS ON TOP OF THE LEADING EDGE OF THE STRUCTURE. IT HAS A RIGID BRACKET WHICH ANGLES BACK TO THE WALL FOR SUPPORT. A (PIN) IDENTIFY THE TWO-FORCE MEMBERS THEN SOLVE FOR ALL REACTIONS AT POINTS A AND B (PIN) EXTRA...
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum allowed in each beam is 400lb in tension and 600lb in compression, determine the maximum of admissible load P. 2 ft 2 ft Exercise V: 40 PT 1.6 kN 200 _ 400 mm + 45 The angle strut is welded to...
(a) Warren truss (b) Howe truss (c) Pratt truss (d) Baltimore truss (e) Parker truss Figure 2: Truss Types (Nielson Text) The truss bridge has the following properties/characteristics: 1. Span length (bottom chord): 168 ft 2. 14 panels (12 ft length per panel) 3. All diagonals are 45 degrees 4. Simple truss (all members are pin-connected and loads are only applied at the joints) 5. Simply-supported (pin at one end, roller at the other) 6. 13 ft width between trusses...
For the beam shown, assume that ET-130 ,000 kip-ft2, P = 80 kips, and w = 4.5 kips/ft. Use discontinuity functions to determine (a) the reactions at A, C, and D (b) the beam deflection at B Assume LAB = LBC = 9.0 ft, LCD = 18.0 ft. AB CD Sum the forces in the y direction to find an expression that includes the reaction forces Ay, Cy, and Dy acting on the beam. Positive values for the reactions are...
use following to solve
3) Using an order of magnitude method (Hill), estimate the TCI in year 2006 dollars for a grass-roots plant with 100,000-lb annual production using an order-of-magnitude method based on a 10,000-lb annual production. The plant contains three 1200-ft/min centrifugal fans, five 1500-ft/min centrifugal blowers, seven 100-ft' centrifugal separators, and two 100-ft shell-and-tube heat exchangers. You may assume all materials are carbon steel, the materials handled are primarily solid, and that this plant construction is done fully...
