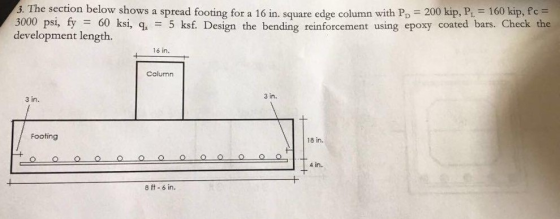

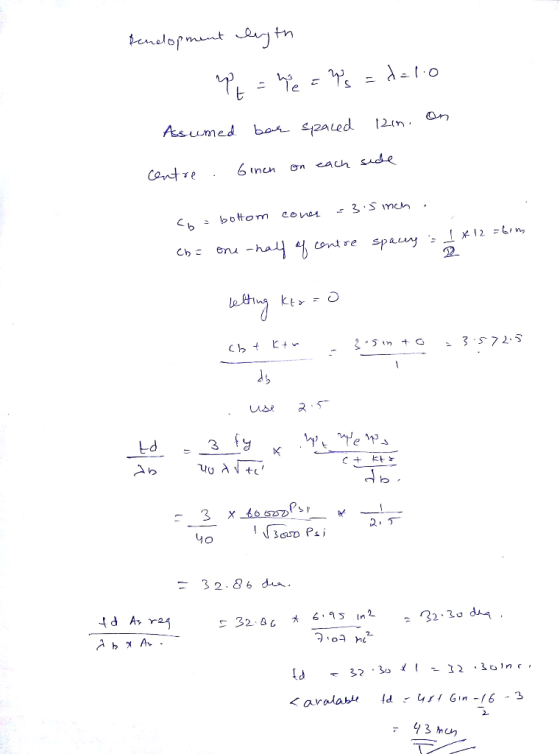

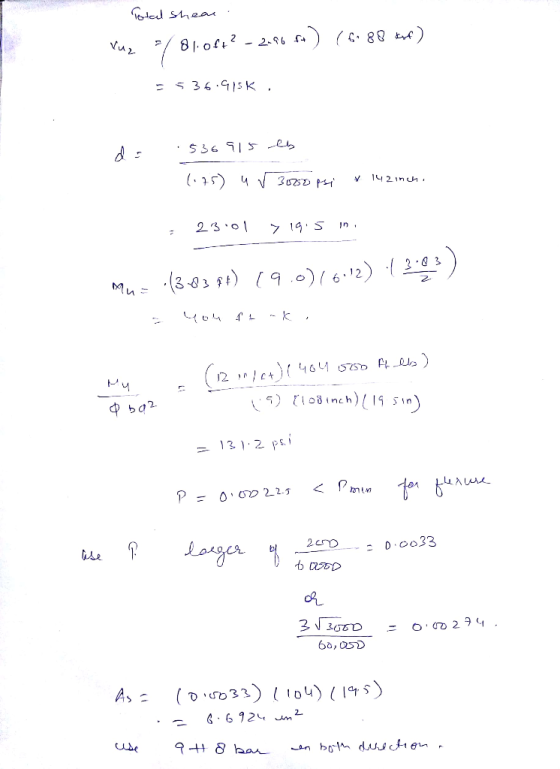

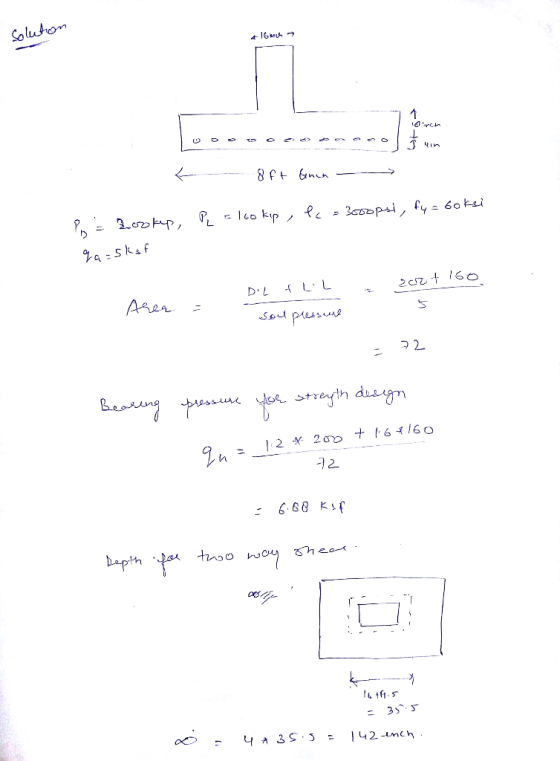

160 kip, fc 3. The section below shows a spread footing for a 16 in. square...
1- Design a rectangular-shaped, combined footing, assuming a rigid footing and uniform soil pressure, for the...
1- Design a rectangular-shaped, combined footing, assuming a rigid footing and uniform soil pressure, for the conditions shown the following figure. Col. Size Re D.L. L.L. No. (in.) bars (kips) (kips) 16x16 8#8 160 130 2 21x21 12#8 230 160 M M2 (kip- (kip- ft) ft) 0 0 0 0 S qa fc fy (ft) (ksf) (ksi) (ksi) 18 4.0 3 60 1 2 & M M₂
2. Design a square spread footing for the following conditions. Service dead load is 350 kips,...
2. Design a square spread footing for the following conditions. Service dead load is 350 kips, service live load is 275 kips. Soil density is 130 lb/ftº. Allowable soil pressure is 4500 psf. Column is 18 in. square. Geotechnical analyses have determined the width to be 13 ft. fe' = 3500 psi normal weight concrete, and fy= 60 ksi. The base of the footing is placed 5 ft below the ground surface. Note: you don't need to design the bar...
Design a square single column footing to support an 18 inch square interior column reinforced with...
Design a square single column footing to support an 18 inch square interior column reinforced with 8-#10 bars. The column carries an unfactored dead load of 245 Kips that includes weight of soil and weight of footing and an unfactored live load of 20 feet below finished grade. The footing is 10 feet by 10 feet and is 30 inches thick. The allowable soil pressure is 5000 psf, fe' 4000 psi and fy 60000 psi. Concrete used shall be sand...
2. Design a square single-column footing for the data given below. The column is an interior...
2. Design a square single-column footing for the data given below. The column is an interior column. Column size = 12 in. x 12in., D-100 k; L=80k; f. = 3000 psi; and f - 60,000 psi. 9. - 5 ksf; Distance from bottom of footing to final grade - 5 ft.
1- Design a rectangular-shaped, combined footing, assuming a rigid footing and uniform soil pressure, for the...
1- Design a rectangular-shaped, combined footing, assuming a rigid footing and uniform soil pressure, for the conditions shown the following figure. Col. Size Re D.L. L.L. No. (in.) bars (kips) (kips) 16x16 8#8 160 130 2 21x21 12#8 230 160 M M2 (kip- (kip- ft) ft) 0 0 0 0 4 fc fy (ft) (kst) (ksi) (ksi) 18 4.0 3 60 1 1 - 6 M
CVE 313- 1- Design a square footing for the interior column shown in the figure. The column carries 2 k 't of uniform live load and 1.5 k/t of uniform dead load (including the self weiht of t...
CVE 313- 1- Design a square footing for the interior column shown in the figure. The column carries 2 k 't of uniform live load and 1.5 k/t of uniform dead load (including the self weiht of the structure), the base of the footing is 5 ft below grade, the soil weight is 100 lb/ft', and q," 5000 psf. and concrete unit weight is 150 lb/ (25 points) NOTE: Your design should only include the following (one-way shear, two-way shear,...
Q4. A square pad footing supporting a column at the centre is shown on DWG-07 on...
Q4. A square pad footing supporting a column at the centre is shown on DWG-07 on page 7. The design parameters of the footing are: = = Side length of the footing, L Overall depth of the footing, h Column width, c Cover to reinforcement Preferred bar size (both directions) Dead load from column, GK Imposed load from column, Qk 3650 mm 800 mm 600 mm 75 mm 20 mm 1300 kN 900 KN Il (a) Design the bending reinforcement...
Problem 3 (40 PTs The square footing as shown is subjected to a service DL of...
Problem 3 (40 PTs The square footing as shown is subjected to a service DL of 375 kips and a service LL of 312 kips. The unit weight of concrete is 150 pcf and of soil is 100 pcf, fy 60ksi, fé-4 ksi. Determine 1. The effective depth of the footing (round it to the next 0.50 inch) 2. How many No. 8 rebar required for footing reinforcement each way. 22 in x 22 in Normal weightEdge column Concrete 5-0
Find the maximum design axial load strength for the tied column of cross section shown in Figure 1.1. Check the ties. Assume a short column. Use f’c = 4000 psi and fy = 60,000 psi for both longitudina...
Find the maximum design axial load strength for the tied column
of cross section shown in Figure 1.1. Check the ties. Assume a
short column. Use f’c = 4000 psi and fy = 60,000 psi for both
longitudinal steel and ties. Also, draw the flexural and shear
reinforcement on a sketch.
Case 1: Design of Short Columns- Small Eccentricity Find the maximum design axial load strength for the tied column of cross section shown in Figure 1.1. Check the ties....
8. Find the necessary reinforcement for a square column (16 in x 16 in) to carry...
8. Find the necessary reinforcement for a square column (16 in x 16 in) to carry a factored load Pu = 265 kips and a factored moment M, of 320 ft-kip. Assume #4 ties, f'c = 4000 psi and fy = 60,000 psi. Include the spacing of the ties assuming that the acting shear is negligible (<<V/2).
1- Design a rectangular-shaped, combined footing, assuming a rigid footing and uniform soil pressure, for the conditions shown the following figure. Col. Size Re D.L. L.L. No. (in.) bars (kips) (kips) 16x16 8#8 160 130 2 21x21 12#8 230 160 M M2 (kip- (kip- ft) ft) 0 0 0 0 S qa fc fy (ft) (ksf) (ksi) (ksi) 18 4.0 3 60 1 2 & M M₂
2. Design a square spread footing for the following conditions. Service dead load is 350 kips, service live load is 275 kips. Soil density is 130 lb/ftº. Allowable soil pressure is 4500 psf. Column is 18 in. square. Geotechnical analyses have determined the width to be 13 ft. fe' = 3500 psi normal weight concrete, and fy= 60 ksi. The base of the footing is placed 5 ft below the ground surface. Note: you don't need to design the bar...
Design a square single column footing to support an 18 inch square interior column reinforced with 8-#10 bars. The column carries an unfactored dead load of 245 Kips that includes weight of soil and weight of footing and an unfactored live load of 20 feet below finished grade. The footing is 10 feet by 10 feet and is 30 inches thick. The allowable soil pressure is 5000 psf, fe' 4000 psi and fy 60000 psi. Concrete used shall be sand...
2. Design a square single-column footing for the data given below. The column is an interior column. Column size = 12 in. x 12in., D-100 k; L=80k; f. = 3000 psi; and f - 60,000 psi. 9. - 5 ksf; Distance from bottom of footing to final grade - 5 ft.
1- Design a rectangular-shaped, combined footing, assuming a rigid footing and uniform soil pressure, for the conditions shown the following figure. Col. Size Re D.L. L.L. No. (in.) bars (kips) (kips) 16x16 8#8 160 130 2 21x21 12#8 230 160 M M2 (kip- (kip- ft) ft) 0 0 0 0 4 fc fy (ft) (kst) (ksi) (ksi) 18 4.0 3 60 1 1 - 6 M
CVE 313- 1- Design a square footing for the interior column shown in the figure. The column carries 2 k 't of uniform live load and 1.5 k/t of uniform dead load (including the self weiht of the structure), the base of the footing is 5 ft below grade, the soil weight is 100 lb/ft', and q," 5000 psf. and concrete unit weight is 150 lb/ (25 points) NOTE: Your design should only include the following (one-way shear, two-way shear,...
Q4. A square pad footing supporting a column at the centre is shown on DWG-07 on page 7. The design parameters of the footing are: = = Side length of the footing, L Overall depth of the footing, h Column width, c Cover to reinforcement Preferred bar size (both directions) Dead load from column, GK Imposed load from column, Qk 3650 mm 800 mm 600 mm 75 mm 20 mm 1300 kN 900 KN Il (a) Design the bending reinforcement...
Problem 3 (40 PTs The square footing as shown is subjected to a service DL of 375 kips and a service LL of 312 kips. The unit weight of concrete is 150 pcf and of soil is 100 pcf, fy 60ksi, fé-4 ksi. Determine 1. The effective depth of the footing (round it to the next 0.50 inch) 2. How many No. 8 rebar required for footing reinforcement each way. 22 in x 22 in Normal weightEdge column Concrete 5-0
Find the maximum design axial load strength for the tied column
of cross section shown in Figure 1.1. Check the ties. Assume a
short column. Use f’c = 4000 psi and fy = 60,000 psi for both
longitudinal steel and ties. Also, draw the flexural and shear
reinforcement on a sketch.
Case 1: Design of Short Columns- Small Eccentricity Find the maximum design axial load strength for the tied column of cross section shown in Figure 1.1. Check the ties....
8. Find the necessary reinforcement for a square column (16 in x 16 in) to carry a factored load Pu = 265 kips and a factored moment M, of 320 ft-kip. Assume #4 ties, f'c = 4000 psi and fy = 60,000 psi. Include the spacing of the ties assuming that the acting shear is negligible (<<V/2).
