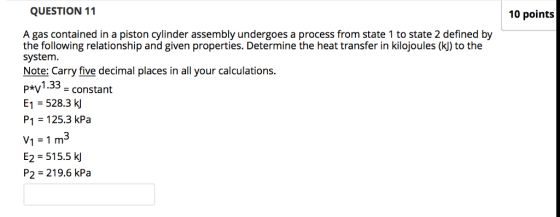

QUESTION 11 10 points A gas contained in a piston cylinder assembly undergoes a process from state 1 to state 2 defined by the following relationship and given properties. Determine the heat transfer in kilojoules (k) to the system. Note: Carry five decimal places in all your calculations p*v1.33 - constant E1 -528.3 k P1 = 125.3 kPa v1 = 1 m3 E2 = 515.5 P2 219.6 kPa

science   Advanced-Physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

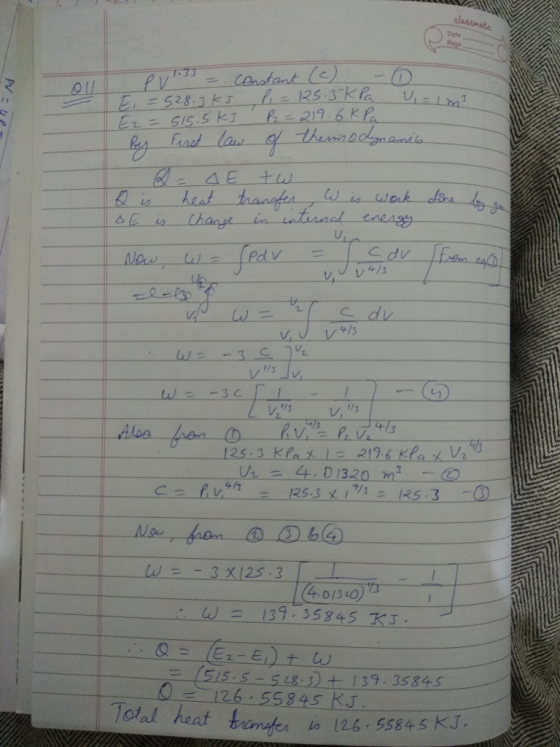

ute i heat c dv 4/3 ㄣ 4/1-125.3 lu 4.013ο) 139. 35845 KJ 5.5- S8139, 3584S 126 . 558 45 KJ Tolal heat bonfer to 126.55845 kJ.

0 0
Add a comment
Know the answer?
Add Answer to:
QUESTION 11 10 points A gas contained in a piston cylinder assembly undergoes a process from...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A gas contained in a piston cylinder assembly undergoes a process from state 1 to state...

    A gas contained in a piston cylinder assembly undergoes a process from state 1 to state 2 defined by the following relationship and given properties. Determine the heat transfer in kilojoules (k) to the system. Note: Carry five decimal places in all your calculations. p"V1.26 = constant E1 533.7 kj P1 348.2 kPa V1 2 m3 E2 511.7 kj P2 171.2 kPa Selected Answer: [None Given] Correct Answer: 343.00 ± 5%

  • Air behaving like an ideal gas contained in a piston–cylinder assembly undergoes an isothermal process between...

    Air behaving like an ideal gas contained in a piston–cylinder assembly undergoes an isothermal process between end states, 1 and 2, where P1 = 10 bar, V1 = 0.1 m3, T1 = 300 K and P2 = 1 bar, V2 = 1 m3, T2 = 300 K. The work done by the process is:

  • A gas contained within a piston-cylinder assembly undergoes two processes

    A gas contained within a piston-cylinder assembly undergoes two processes, A and B, between the same end states, 1 and 2, where p1=10 bar, V1= 0.1 m3, U1=400 kJ and p2=1 bar, V2=1.0 m3, U2=200 kJ: Process A. Process from 1 to 2 during which the pressure-volume relation is p.V = constant. Process B: Constant-volume process from state 1 to a pressure of 2 bar, followed by a linear pressure-volume process to state 2 Kinetic and potential energy effects can be ignored. For...

  • 1.Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at 277°C from a pressure...

    1.Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at 277°C from a pressure of 5.1 bar to a pressure of 2.7 bar. Evaluate the work, in kJ/kg. 2.Nitrogen (N2) contained in a piston–cylinder arrangement, initially at 9.3 bar and 437 K, undergoes an expansion to a final temperature of 300 K, during which the pressure–volume relationship is pV1.1 = constant. Assuming the ideal gas model for the N2, determine the heat transfer in kJ/kg. 3.Argon contained in...

  • QUESTION 6 A 56.6 kg piston sits above a gas contained in a vertical piston-cylinder assembly....

    QUESTION 6 A 56.6 kg piston sits above a gas contained in a vertical piston-cylinder assembly. The area of the piston face is 0.1 m2. The gas undergoes a process from state 1 to state 2 defined by the following diagram and given properties. Determine the work (kl) done by the gas. Note that the piston is free floating (no friction). 8 - 9.81 m/s2 Patm - 100 kPa V1 = 1.8 m V2 = 2.5 m2 Gas

  • 0.21 kg of a gas contained within a piston-cylinder assembly undergoes a constant pressure process at...

    0.21 kg of a gas contained within a piston-cylinder assembly undergoes a constant pressure process at 4 bar beginning at v1 = 0.3 m3/kg. For the gas as the system, the moving boundary work is -18 kJ. Determine the initial and final volume of the gas, in m3.

  • As shown in the figure below, a gas contained within a piston-cylinder assembly, initially at a...

    As shown in the figure below, a gas contained within a piston-cylinder assembly, initially at a volume of 0.1 m3, undergoes a constant-pressure expansion at p 2 bar to a final volume of V2 0.2 m3, while being slowly heated through the base. The change in internal energy of the gas is 0.25 kJ. The piston and cylinder walls are fabricated from heat-resistant material, and the piston moves smoothly in the cylinder. The local atmospheric pressure is 1 bar. Piston-...

  • (Thermodynamics) Need help answering this question, many thanks in advance. VI (10 pts.) A gas contained...

    (Thermodynamics) Need help answering this question, many thanks in advance. VI (10 pts.) A gas contained in a piston cylinder assembly undergoes a process from state 1 to state 2 defined by the following relationship and given properties. Determine the final pressure (P2) of the gas and the work(kJ) for the process. kPa 10 m3 P 100 kPa -10 Ovtonstant dv P (V) Constant VI 2.5 m3 V2 1.2 m3 pV-1ov /0 100-3.2,5 92.5=P,-10. 1035 P2= kPa kJ WI-2

  • A gas undergoes a process in a piston–cylinder assembly during which the pressure-specific volume relation is...

    A gas undergoes a process in a piston–cylinder assembly during which the pressure-specific volume relation is pv1.1 = constant. The mass of the gas is 0.4 lb and the following data are known: p1 = 160 lbf/in.2, V1 = 1 ft3, and p2 = 390 lbf/in.2 During the process, heat transfer from the gas is 2.1 Btu. Kinetic and potential energy effects are negligible. Determine the change in specific internal energy of the gas, in Btu/lb.

  • A gas undergoes a process in a piston–cylinder assembly during which the pressure-specific volume relation is...

    A gas undergoes a process in a piston–cylinder assembly during which the pressure-specific volume relation is pv1.1 = constant. The mass of the gas is 0.4 lb and the following data are known: p1 = 160 lbf/in.2, V1 = 1 ft3, and p2 = 480 lbf/in.2 During the process, heat transfer from the gas is 2.1 Btu. Kinetic and potential energy effects are negligible. Determine the change in specific internal energy of the gas, in Btu/lb.
