Air behaving like an ideal gas contained in a piston–cylinder assembly undergoes an isothermal process between...

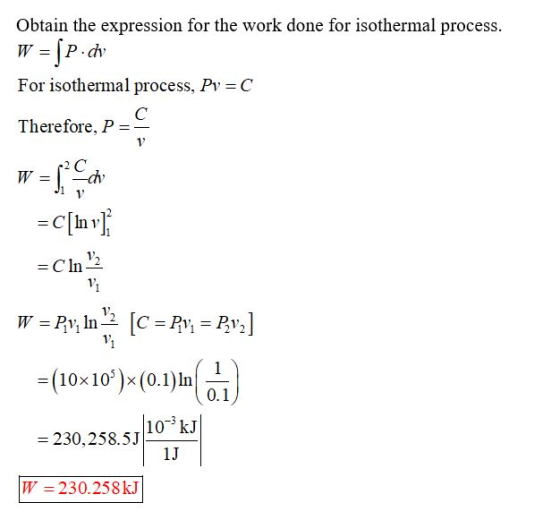

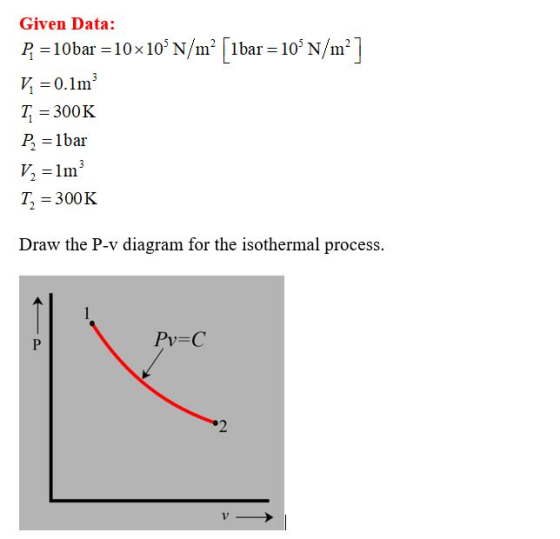

Air behaving like an ideal gas contained in a piston–cylinder assembly undergoes an isothermal process between end states, 1 and 2, where P1 = 10 bar, V1 = 0.1 m3, T1 = 300 K and P2 = 1 bar, V2 = 1 m3, T2 = 300 K. The work done by the process is:
Homework Answers
Add Answer to:
Air behaving like an ideal gas contained in a piston–cylinder
assembly undergoes an isothermal process between...
1.Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at 277°C from a pressure...
1.Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at 277°C from a pressure of 5.1 bar to a pressure of 2.7 bar. Evaluate the work, in kJ/kg. 2.Nitrogen (N2) contained in a piston–cylinder arrangement, initially at 9.3 bar and 437 K, undergoes an expansion to a final temperature of 300 K, during which the pressure–volume relationship is pV1.1 = constant. Assuming the ideal gas model for the N2, determine the heat transfer in kJ/kg. 3.Argon contained in...
A gas contained within a piston-cylinder assembly undergoes two processes
A gas contained within a piston-cylinder assembly undergoes two processes, A and B, between the same end states, 1 and 2, where p1=10 bar, V1= 0.1 m3, U1=400 kJ and p2=1 bar, V2=1.0 m3, U2=200 kJ: Process A. Process from 1 to 2 during which the pressure-volume relation is p.V = constant. Process B: Constant-volume process from state 1 to a pressure of 2 bar, followed by a linear pressure-volume process to state 2 Kinetic and potential energy effects can be ignored. For...
3.93 w Air contained in a piston-cylinder assembly undergoes two processes in series, as shown in...
3.93 w Air contained in a piston-cylinder assembly undergoes two processes in series, as shown in Fig. P3:93. Assuming ideal gas behavior for the air, determine the work and heat transfer for the overall process, each in kJ/kg. Isothermal process Ti = 300 K (bar) 1 °C 0.1 0.2 0.3 0.4 V (m) 0.5 0.6 FIGURE P3.93
*Problem 3.094 SI Air contained in a piston-cylinder assembly undergoes the power cycle shown in the...
*Problem 3.094 SI Air contained in a piston-cylinder assembly undergoes the power cycle shown in the figure below 3.0 Isothermal process (bar) 1.4 0 0 1.0 2.142857142857 v (m3/kg) Assuming ideal gas behavior for the air, evaluate the thermal efficiency of the cycle. 1%
QUESTION 11 10 points A gas contained in a piston cylinder assembly undergoes a process from...
QUESTION 11 10 points A gas contained in a piston cylinder assembly undergoes a process from state 1 to state 2 defined by the following relationship and given properties. Determine the heat transfer in kilojoules (k) to the system. Note: Carry five decimal places in all your calculations p*v1.33 - constant E1 -528.3 k P1 = 125.3 kPa v1 = 1 m3 E2 = 515.5 P2 219.6 kPa
Problem 3.094 SI Your answer is incorrect. Try again. Air contained in a piston-cylinder assembly undergoes...
Problem 3.094 SI Your answer is incorrect. Try again. Air contained in a piston-cylinder assembly undergoes the power cycle shown in the figure below. 4.5 Isothermal process (bar) 1.6 0 0 1.0 2.8125 v (m3/kg) Assuming ideal gas behavior for the air, evaluate the thermal efficiency of the cycle
A gas contained in a piston cylinder assembly undergoes a process from state 1 to state...
A gas contained in a piston cylinder assembly undergoes a process from state 1 to state 2 defined by the following relationship and given properties. Determine the heat transfer in kilojoules (k) to the system. Note: Carry five decimal places in all your calculations. p"V1.26 = constant E1 533.7 kj P1 348.2 kPa V1 2 m3 E2 511.7 kj P2 171.2 kPa Selected Answer: [None Given] Correct Answer: 343.00 ± 5%
0.21 kg of a gas contained within a piston-cylinder assembly undergoes a constant pressure process at...
0.21 kg of a gas contained within a piston-cylinder assembly undergoes a constant pressure process at 4 bar beginning at v1 = 0.3 m3/kg. For the gas as the system, the moving boundary work is -18 kJ. Determine the initial and final volume of the gas, in m3.
As shown in the figure below, a gas contained within a piston-cylinder assembly, initially at a...
As shown in the figure below, a gas contained within a piston-cylinder assembly, initially at a volume of 0.1 m3, undergoes a constant-pressure expansion at p 2 bar to a final volume of V2 0.2 m3, while being slowly heated through the base. The change in internal energy of the gas is 0.25 kJ. The piston and cylinder walls are fabricated from heat-resistant material, and the piston moves smoothly in the cylinder. The local atmospheric pressure is 1 bar. Piston-...
Assuming ideal gas behavior for the air, evaluate the thermal efficiency of the cycle.
Assuming ideal gas behavior for the air, evaluate the thermal
efficiency of the cycle.
Problem 3.094 SI Air contained in a piston-cylinder assembly undergoes the power cycle shown in the figure below. 4.5 Isothermal process (bar) 1.4 0 1.0 3.214285714286 v (m3/kg)
Problem 3.094 SI Air contained in a piston-cylinder assembly undergoes the power cycle shown in the figure below. 4.5 Isothermal process (bar) 1.4 0 1.0 3.214285714286 v (m3/kg)
3.93 w Air contained in a piston-cylinder assembly undergoes two processes in series, as shown in Fig. P3:93. Assuming ideal gas behavior for the air, determine the work and heat transfer for the overall process, each in kJ/kg. Isothermal process Ti = 300 K (bar) 1 °C 0.1 0.2 0.3 0.4 V (m) 0.5 0.6 FIGURE P3.93
*Problem 3.094 SI Air contained in a piston-cylinder assembly undergoes the power cycle shown in the figure below 3.0 Isothermal process (bar) 1.4 0 0 1.0 2.142857142857 v (m3/kg) Assuming ideal gas behavior for the air, evaluate the thermal efficiency of the cycle. 1%
QUESTION 11 10 points A gas contained in a piston cylinder assembly undergoes a process from state 1 to state 2 defined by the following relationship and given properties. Determine the heat transfer in kilojoules (k) to the system. Note: Carry five decimal places in all your calculations p*v1.33 - constant E1 -528.3 k P1 = 125.3 kPa v1 = 1 m3 E2 = 515.5 P2 219.6 kPa
Problem 3.094 SI Your answer is incorrect. Try again. Air contained in a piston-cylinder assembly undergoes the power cycle shown in the figure below. 4.5 Isothermal process (bar) 1.6 0 0 1.0 2.8125 v (m3/kg) Assuming ideal gas behavior for the air, evaluate the thermal efficiency of the cycle
A gas contained in a piston cylinder assembly undergoes a process from state 1 to state 2 defined by the following relationship and given properties. Determine the heat transfer in kilojoules (k) to the system. Note: Carry five decimal places in all your calculations. p"V1.26 = constant E1 533.7 kj P1 348.2 kPa V1 2 m3 E2 511.7 kj P2 171.2 kPa Selected Answer: [None Given] Correct Answer: 343.00 ± 5%
As shown in the figure below, a gas contained within a piston-cylinder assembly, initially at a volume of 0.1 m3, undergoes a constant-pressure expansion at p 2 bar to a final volume of V2 0.2 m3, while being slowly heated through the base. The change in internal energy of the gas is 0.25 kJ. The piston and cylinder walls are fabricated from heat-resistant material, and the piston moves smoothly in the cylinder. The local atmospheric pressure is 1 bar. Piston-...
Assuming ideal gas behavior for the air, evaluate the thermal
efficiency of the cycle.
Problem 3.094 SI Air contained in a piston-cylinder assembly undergoes the power cycle shown in the figure below. 4.5 Isothermal process (bar) 1.4 0 1.0 3.214285714286 v (m3/kg)
Problem 3.094 SI Air contained in a piston-cylinder assembly undergoes the power cycle shown in the figure below. 4.5 Isothermal process (bar) 1.4 0 1.0 3.214285714286 v (m3/kg)
