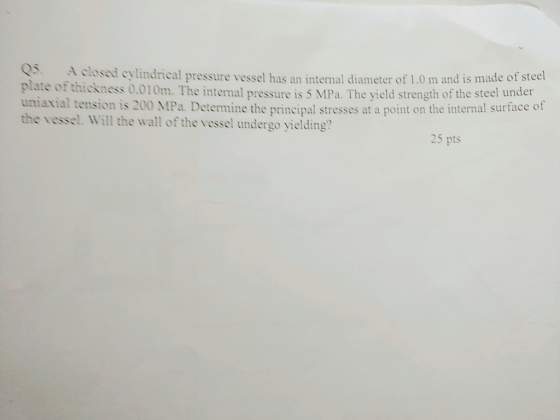

A closed cylindrical pressure vessel has an internal diameter of 1.0m and made of steel of thickness 0.01m. Principal stresses at a point
Homework Answers
Add Answer to:
A closed cylindrical pressure vessel has an internal diameter of
1.0m and made of steel of...
n 1 A cylindrical pressure vessel is fabricated from steel plating that has a diameter of...
n 1 A cylindrical pressure vessel is fabricated from steel plating that has a diameter of 1.5 m, and is subjected to an internal pressure of 2.5 MPa. Calculate its safe wall thickness if the longitudinal stress is limited to 70 MPa. out of
Question 3 A typical load case for a cylindrical pressure vessel which is on the back...
Question 3 A typical load case for a cylindrical pressure vessel which is on the back of a truck is estimated to include the d 1.5 m t10 mm internal pressure of p = 2 MPa torsion of and a p = 2 MPa T= 1000 kNm. The internal diameter of the pressure vessel is 1.5 m and the wall thickness is 10 mm. The vessel is made of steel with a yield stress of Sy = 400 MPa Based...
Problem 1. A cylindrical pressure vessel has inside diameter d_{o} = 500 mm and inside diameter di=490 mm.if it i made of carbon steel SAE 1040 OQT1300, find the maximum allowable internal pressure if the safety factor against yielding is not to be less
Problem 1.A cylindrical pressure vessel has inside diameter d_{o} = 500 mm and inside diameter di=490 mm.if it i made of carbon steel SAE 1040 OQT1300, find the maximum allowable internal pressure if the safety factor against yielding is not to be less than 4. Neglect the external pressure and assume that the longitudinal stresses are taken by the vessel itself.a) Solve using the MSST. b) Solve using the DET.See Appendix 3 for material properties.
A strain gauge affixed to the outside of a cylindrical pressure vessel at an angle of...
A strain gauge affixed to the outside of a cylindrical
pressure vessel at an angle of θ = 35° reads ε = 400 μm/m. The
outside diameter of the vessel is 500mm and the wall thickness is 5
mm. If the veseel is constructed of A36 steel, determine the
following:
a) The hoop and longitudinal stresses in the tank.
Hints: To solve you will need to consider the equations for
strain transform and generalized Hooke’s Law. The hoop and
longitudinal...
A cylindrical pressure vessel is constructed by welding steel plates together. The pressure vessel supports an...
A cylindrical pressure vessel is constructed by welding steel
plates together. The pressure vessel supports an internal pressure
of 240 (psi). In addition the pressure vessel supports an axial
load of 270000 (lbs.). The inner radius of the pressure vessel is
48 (inches) with a wall thickness of 0.3125 (inches). The plates
are welded at 72 degrees from the horizontal. Determine:
a) the stresses perpendicular and parallel to the weld. Show the
stresses on a properly oriented differential element.
The...
Q3 (30) A cylindrical pressure vessel is constructed from a long, narrow steel plate by wrapping...
Q3 (30) A cylindrical pressure vessel is constructed from a long, narrow steel plate by wrapping the plate around a mandrel and then welding along the edges of the plate to make a helical joint α 55° with the longitudinal axis. The vessel has inner radius r-1.8 m and wall thickness t 20 mm. The material is steel with modulus E: 200 GPa and Poisson's ratio0.30. The internal pressure p is 800 kPa Helical weld . The helical weld makes...
Q2. Figure Q2 shows a cylindrical pressure vessel made by welding semi-spherical caps to a cylindrical...
Q2. Figure Q2 shows a cylindrical pressure vessel made by welding semi-spherical caps to a cylindrical body. The cylindrical part has inner diameter Di = 1.8 m and the wall thickness, t, is uniform and equal to 6 mm. The internal pressure is p = 1.5 MPa. d) What is the value of a force F, applied in the direction of the axis of the cylinder which would make the direct stress in longitudinal direction, in the cylinder wall, one...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at one end, is also subjected to a force F= 10 kN in the y direction at the other end as shown. The internal diameter of the pressure vessel is d= 160 mm and its thickness is t= 10 mm 3 MPa, assumed to be Determine the magnitudes of the stress components in x, y and z coordinates at points H and K and sketch...
A cylindrical pressure vessel of 250 mm mean diameter and 6 mm wall thickness is fabricated...
A cylindrical pressure vessel of 250 mm mean diameter and 6 mm
wall thickness is fabricated from a 1.2 m length of spirally welded
pipe AB as shown. Tank gauge pressure is 4 MPa and centric axial
forces P and P1 of 240 kN act through rigid end plates. Determine:
(a) Net longitudinal and hoop stresses. (b) Normal stress acting
perpendicular to weld and shear stress parallel to weld (show
sketch of Mohr’s circle). (c) Determine the Factor of Safety...
The cylindrical pressure vessel has an inner radius of 1.25 m and a wall thickness of...
The cylindrical pressure vessel has an inner radius of 1.25 m
and a wall thickness of 25 mm . It is made from steel plates that
are welded along the 45∘ seam. The vessel is subjected to an
internal pressure of 7 MPa . (Figure 1)
Part A
Determine the normal stress component along this seam.
Express your answer to three significant figures and include the
appropriate units.
Part B
Determine the shear stress component along this seam.
Express your...
n 1 A cylindrical pressure vessel is fabricated from steel plating that has a diameter of 1.5 m, and is subjected to an internal pressure of 2.5 MPa. Calculate its safe wall thickness if the longitudinal stress is limited to 70 MPa. out of
Question 3 A typical load case for a cylindrical pressure vessel which is on the back of a truck is estimated to include the d 1.5 m t10 mm internal pressure of p = 2 MPa torsion of and a p = 2 MPa T= 1000 kNm. The internal diameter of the pressure vessel is 1.5 m and the wall thickness is 10 mm. The vessel is made of steel with a yield stress of Sy = 400 MPa Based...
A strain gauge affixed to the outside of a cylindrical
pressure vessel at an angle of θ = 35° reads ε = 400 μm/m. The
outside diameter of the vessel is 500mm and the wall thickness is 5
mm. If the veseel is constructed of A36 steel, determine the
following:
a) The hoop and longitudinal stresses in the tank.
Hints: To solve you will need to consider the equations for
strain transform and generalized Hooke’s Law. The hoop and
longitudinal...
A cylindrical pressure vessel is constructed by welding steel
plates together. The pressure vessel supports an internal pressure
of 240 (psi). In addition the pressure vessel supports an axial
load of 270000 (lbs.). The inner radius of the pressure vessel is
48 (inches) with a wall thickness of 0.3125 (inches). The plates
are welded at 72 degrees from the horizontal. Determine:
a) the stresses perpendicular and parallel to the weld. Show the
stresses on a properly oriented differential element.
The...
Q3 (30) A cylindrical pressure vessel is constructed from a long, narrow steel plate by wrapping the plate around a mandrel and then welding along the edges of the plate to make a helical joint α 55° with the longitudinal axis. The vessel has inner radius r-1.8 m and wall thickness t 20 mm. The material is steel with modulus E: 200 GPa and Poisson's ratio0.30. The internal pressure p is 800 kPa Helical weld . The helical weld makes...
Q2. Figure Q2 shows a cylindrical pressure vessel made by welding semi-spherical caps to a cylindrical body. The cylindrical part has inner diameter Di = 1.8 m and the wall thickness, t, is uniform and equal to 6 mm. The internal pressure is p = 1.5 MPa. d) What is the value of a force F, applied in the direction of the axis of the cylinder which would make the direct stress in longitudinal direction, in the cylinder wall, one...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at one end, is also subjected to a force F= 10 kN in the y direction at the other end as shown. The internal diameter of the pressure vessel is d= 160 mm and its thickness is t= 10 mm 3 MPa, assumed to be Determine the magnitudes of the stress components in x, y and z coordinates at points H and K and sketch...
A cylindrical pressure vessel of 250 mm mean diameter and 6 mm
wall thickness is fabricated from a 1.2 m length of spirally welded
pipe AB as shown. Tank gauge pressure is 4 MPa and centric axial
forces P and P1 of 240 kN act through rigid end plates. Determine:
(a) Net longitudinal and hoop stresses. (b) Normal stress acting
perpendicular to weld and shear stress parallel to weld (show
sketch of Mohr’s circle). (c) Determine the Factor of Safety...
The cylindrical pressure vessel has an inner radius of 1.25 m
and a wall thickness of 25 mm . It is made from steel plates that
are welded along the 45∘ seam. The vessel is subjected to an
internal pressure of 7 MPa . (Figure 1)
Part A
Determine the normal stress component along this seam.
Express your answer to three significant figures and include the
appropriate units.
Part B
Determine the shear stress component along this seam.
Express your...
